2004 Pontiac Sunfire AutomaticFACTORY OEM SERVICE PROCEDURE

Body Control System Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

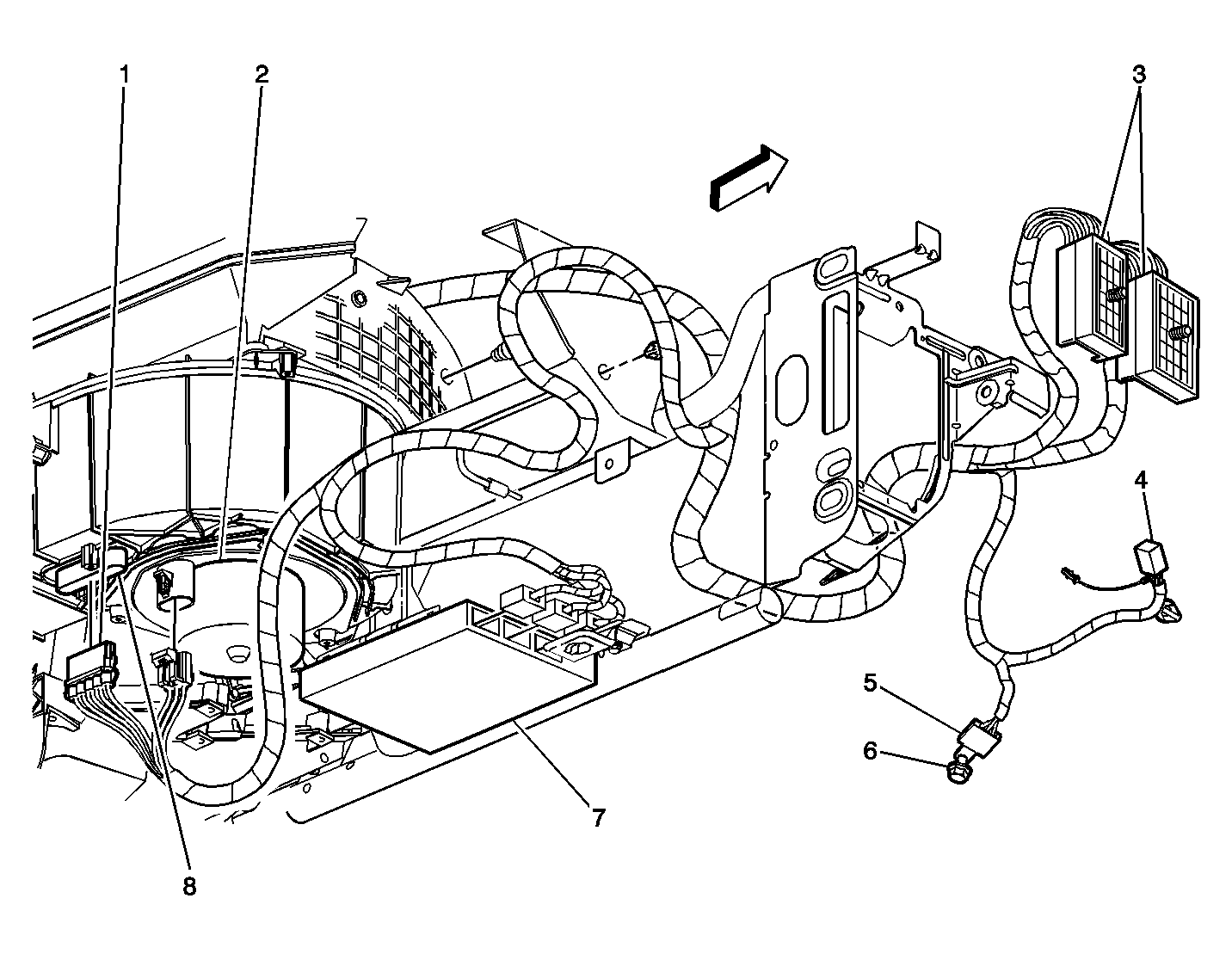

Fig 1: I/P Harness - RH Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly Connector
2	Blower Motor
3	Fuse Block - Right I/P, C1 and C2
4	Inflatable Restraint I/P Module Connector
5	Splice Pack, SP203
6	G203
7	Body Control Module (BCM)
8	Blower Motor Resistor Assembly
