2004 Pontiac Sunfire AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Disconnect the air cleaner duct from the air cleaner resonator.
Disconnect the IAT sensor harness connector.
While twisting the IAT sensor (4), pull the sensor from the air cleaner resonator (1).

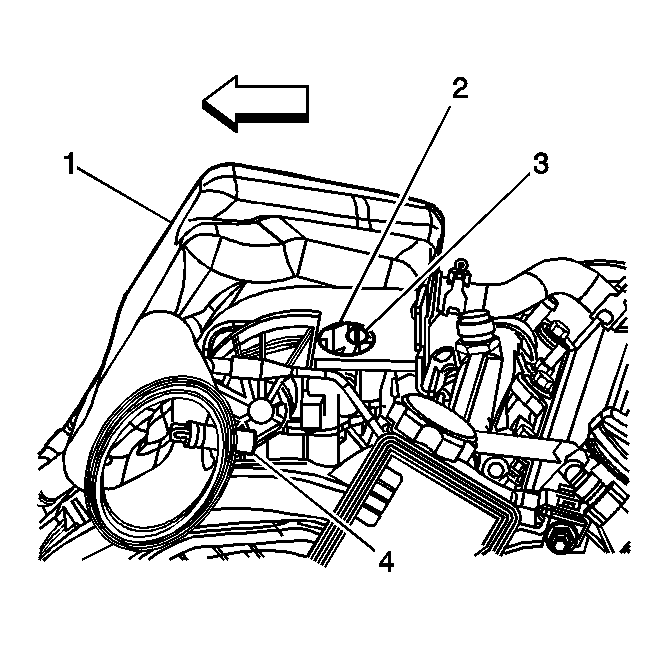

Fig 1: Locating IAT Sensor
Courtesy of GENERAL MOTORS CORP.
