2004 Pontiac Sunfire AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
- Remove the engine fuel supply and return pipes. Refer to Fuel Hose/Pipes Replacement - Engine Compartment .
- Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .

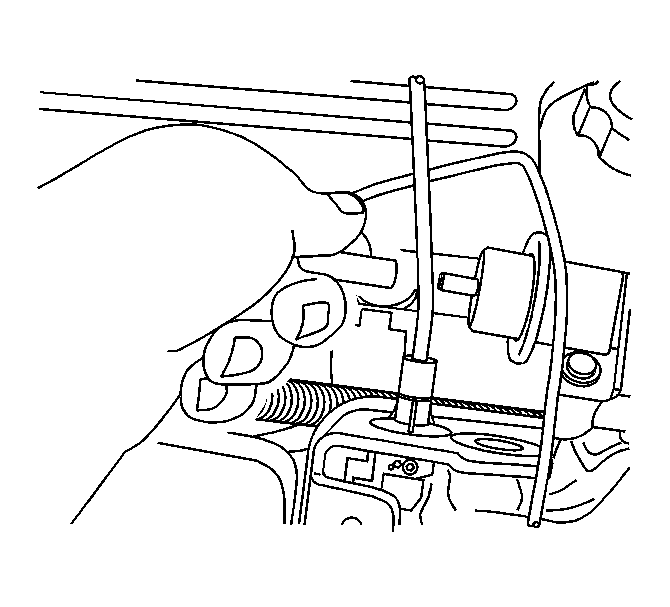

- Disconnect the vent pipe from the fuel pressure regulator.

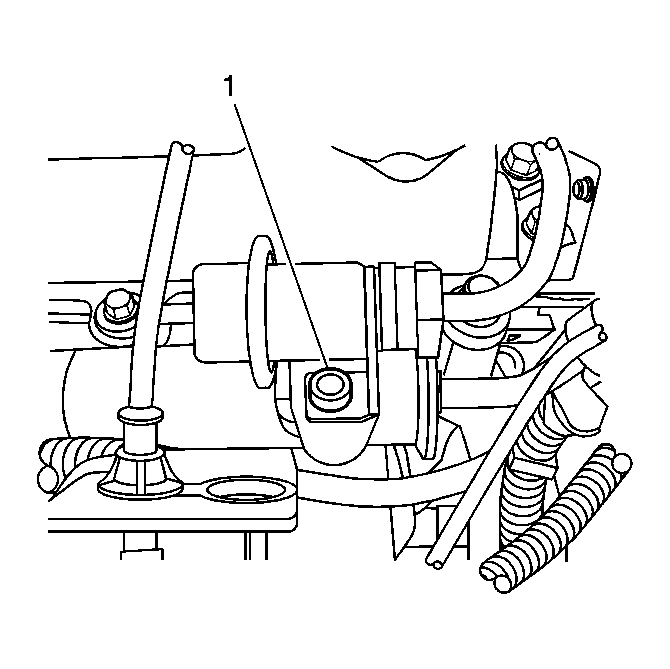

- Remove the fuel pressure regulator bolt (1).

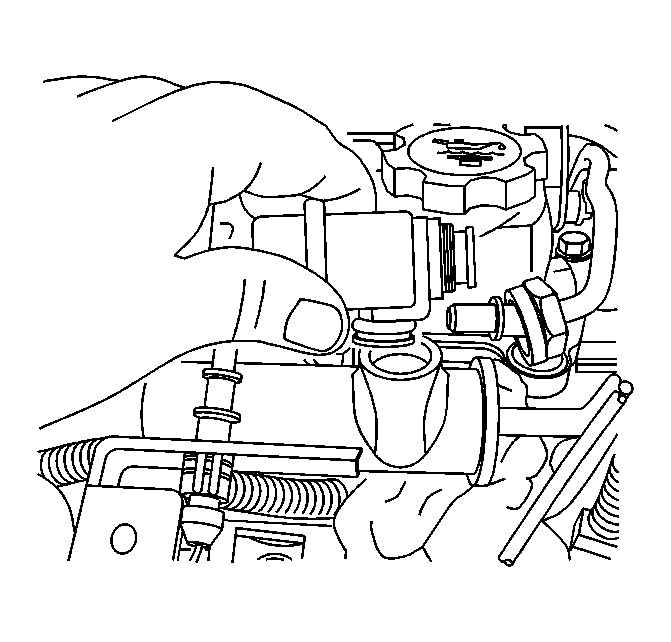

- Remove the fuel pressure regulator.
- Disconnect the fuel injector harness connectors.
- Remove the fuel rail attaching studs (1).
