2004 Pontiac Sunfire AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the fuel rail. Refer to Fuel Rail Assembly Replacement .

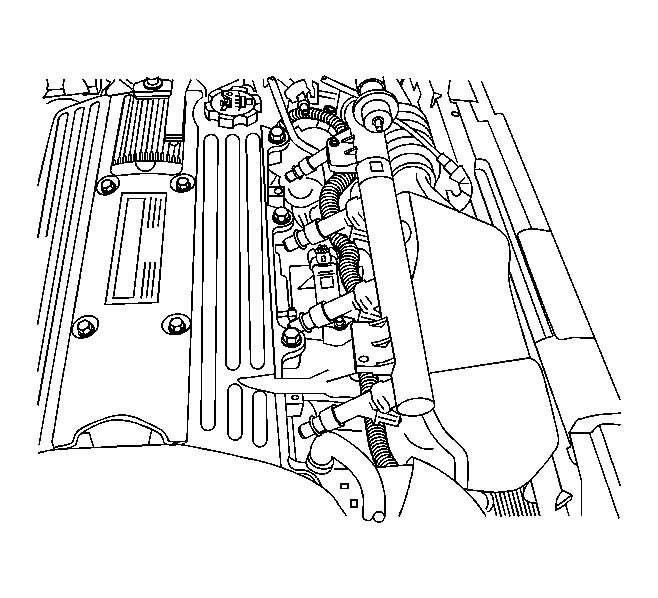

Fig 1: Fuel Rail Assembly View
Courtesy of GENERAL MOTORS CORP.
Remove the fuel injector electrical connector.

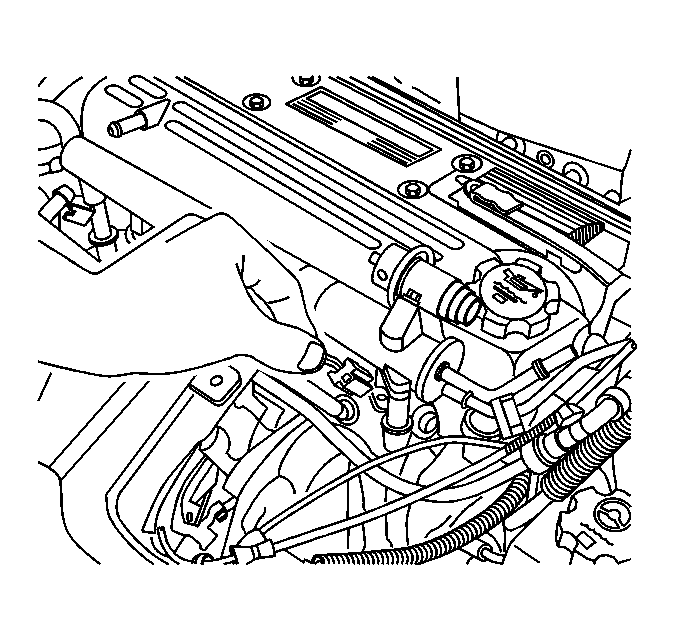

Fig 2: View Of Fuel Injector Harness Connectors
Courtesy of GENERAL MOTORS CORP.
Remove the fuel injector retainer clip (1).

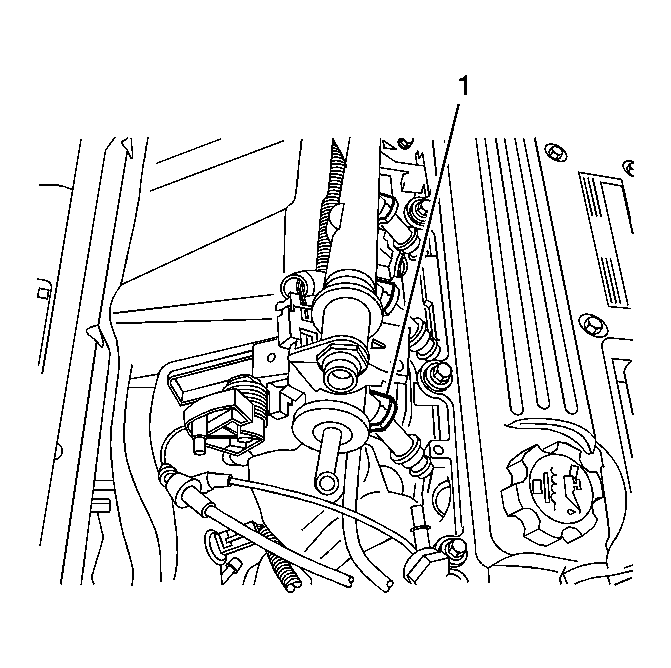

Fig 3: Identifying Fuel Injector Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Remove the fuel injector from the fuel rail.

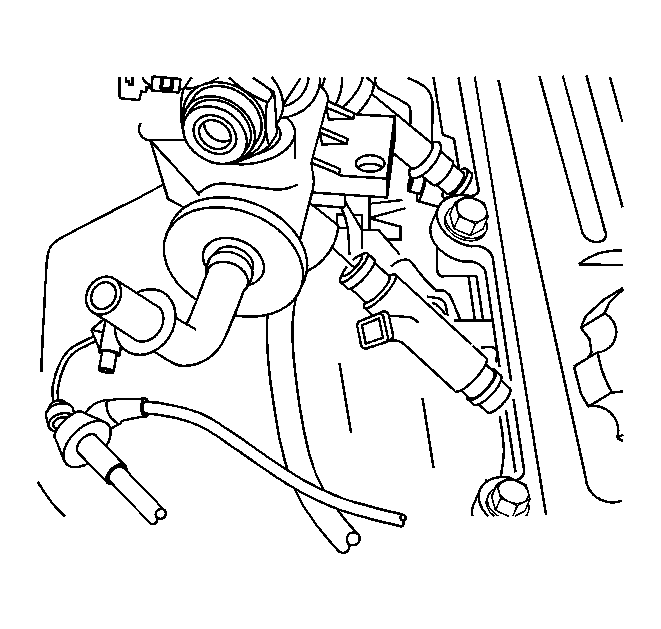

Fig 4: Locating Fuel Injector
Courtesy of GENERAL MOTORS CORP.
