2004 Pontiac Grand Prix GTPFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Install the new gasket.
Install the throttle body assembly (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the throttle body bolts (2) and the nuts (3).
Tighten: Tighten the bolts and the nuts to 10 N.m (89 lb in).

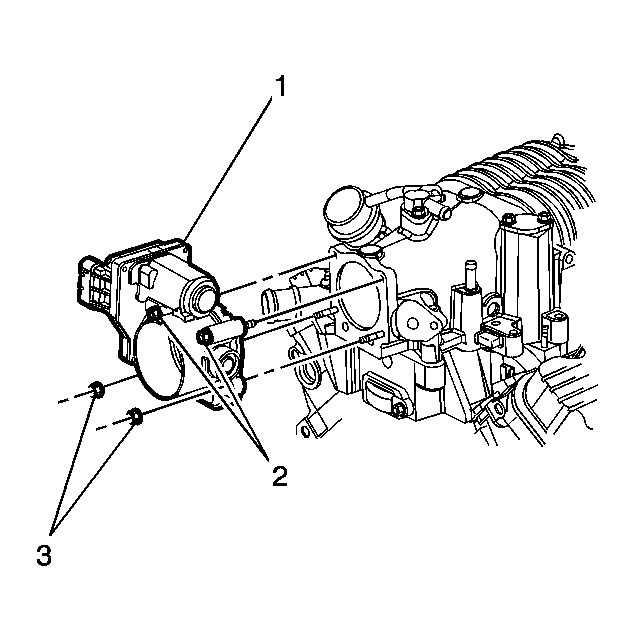

Fig 1: Identifying Throttle Body Assembly (L32)

Courtesy of GENERAL MOTORS CORP.

Connect the throttle body electrical connector.
Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L26) or Fuel Injector Sight Shield Replacement (L32) in Engine Mechanical - 3.8L.
Fill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
