2004 Pontiac Grand Prix GTPFACTORY OEM SERVICE PROCEDURE
Engine Controls Connector End Views
Accelerator Pedal Position (APP) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PU | 1272 | Low Reference |
| B | L-BU | 1162 | APP Sensor 2 Signal |
| C | TN | 1274 | 5 Volt Reference |
| D | BN | 1271 | Low Reference |
| E | D-BU | 1161 | APP Sensor 1 Signal |
| F | WH/BK | 1164 | 5 Volt Reference |
Barometric Pressure (BARO) Sensor (L32) Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | BK | 476 | Low Reference |
| B | GY/BK | 433 | BARO Sensor Signal |
| C | GY | 597 | 5 Volt Reference |
Crankshaft Position (CKP) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | L-BU/WH | 1800 | CKP Sensor 2 Signal |
| B | YE | 573 | CKP Sensor 1 Signal |
| C | BK/WH | 836 | Low Reference |
| D | WH/BK | 644 | 12 Volt Reference |
Camshaft Position (CMP) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | BN/WH | 633 | CMP Sensor Signal |
| B | BK/WH | 836 | Low Reference |
| C | WH/BK | 644 | 12 Volt Reference |

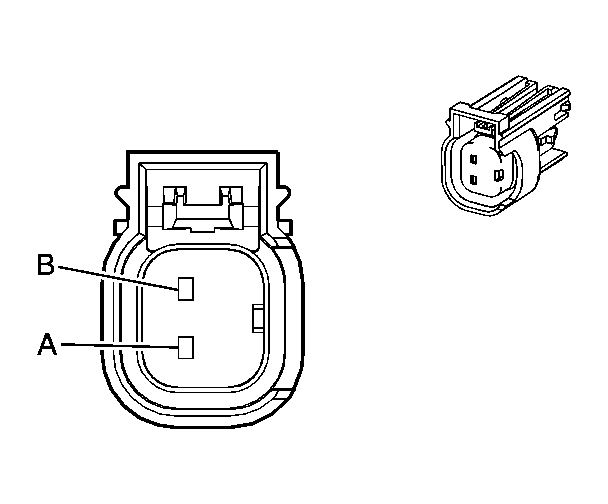

Engine Coolant Temperature (ECT) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | YE | 2761 | Low Reference |
| B | BK | 410 | ECT Sensor Signal |
Evaporative Emission (EVAP) Canister Purge Solenoid Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PK | 339 | Ignition 1 Voltage |
| B | D-GN/WH | 428 | EVAP Canister Purge Solenoid Control |
Evaporative Emissions (EVAP) Canister Vent Solenoid Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | OG | 2840 | Battery Positive Voltage |
| B | WH | 1310 | EVAP Canister Vent Solenoid Control |
Exhaust Gas Recirculation (EGR) Valve Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | GY | 435 | EGR Solenoid Low Control |
| B | BK | 2753 | Low Reference |
| C | BN | 1456 | EGR Valve Position Signal |
| D | GY | 2702 | 5 Volt Reference |
| E | RD | 1676 | EGR Solenoid High Control |
Fuel Injector 1 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PK | 639 | Ignition 1 Voltage |
| B | BK | 1744 | Fuel Injector 1 Control |
Fuel Injector 2 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Circuit Number | Wire Color | Function |
| A | PK | 639 | Ignition 1 Voltage |
| B | L-GN/BK | 1745 | Fuel Injector 2 Control |
Fuel Injector 3 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PK | 639 | Ignition 1 Voltage |
| B | PK/BK | 1746 | Fuel Injector 3 Control |
Fuel Injector 4 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PK | 639 | Ignition 1 Voltage |
| B | L-BU/BK | 844 | Fuel Injector 4 Control |
Fuel Injector 5 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PK | 639 | Ignition 1 Voltage |
| B | BK/WH | 845 | Fuel Injector 5 Control |
Fuel Injector 6 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Circuit Number | Wire Color | Function |
| A | PK | 639 | Ignition 1 Voltage |
| B | YE/BK | 846 | Fuel Injector 6 Control |
Fuel Pump & Sender Assembly - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PU | 30 | Fuel Level Sensor Signal |
| B | GY | 120 | Fuel Pump Supply Voltage |
| C | BK | 150 | Ground |
| D | BK/WH | 651 | Low Reference |
Fuel Tank Pressure (FTP) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | OG/BK | 469 | Low Reference |
| B | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GY/BK | 416 | 5 Volt Reference |
Heated Oxygen Sensor (HO2S) Sensor 1 Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | TN/WH | 3111 | HO2S Low Signal |
| B | PU/WH | 3110 | HO2S High Signal |
| C | BK/WH | 3112 | HO2S Heater Low Control Sensor 1 |
| D | PK | 839 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) Sensor 2 Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | TN/WH | 3121 | HO2S Low Signal |
| B | PU | 3120 | HO2S High Signal |
| C | BK/WH | 3122 | HO2S Heater Low Control Sensor 2 |
| D | PK | 839 | Ignition 1 Voltage |
Ignition Control Module (ICM) - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | WH | 423 | IC Timing Control |
| B | TN/BK | 424 | IC Timing Signal |
| C | L-BU/BK | 647 | Medium Resolution Engine Speed Signal |
| D | PU/WH | 430 | Low Resolution Engine Speed Signal |
| E | WH | 121 | Engine Speed Signal |
| F | BK | 630 | Camshaft Position Signal |
| G | YE | 573 | CKP Sensor 1 Signal |
| H | L-BU/WH | 1800 | CKP Sensor 2 Signal |
| J | BN/WH | 633 | CMP Sensor Signal |
| K | BK/WH | 541 | Ground |
| L | RD/BK | 453 | Low Reference |
| M | BK/WH | 836 | Low Reference |
| N | WH/BK | 644 | 12 Volt Reference |
| P | PK | 239 | Ignition 1 Voltage |
Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | YE | 492 | MAF Sensor Signal |
| B | PK | 339 | Ignition 1 Voltage |
| C | BK/WH | 451 | Ground |
| D | TN | 472 | IAT Sensor Signal |
| E | BK | 2760 | Low Reference |
Knock Sensor (KS) Bank 1 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| 1 | D-BU | 496 | Knock Sensor 1 Signal |
Knock Sensor (KS) Bank 2 - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| 1 | D-BU | 1876 | Knock Sensor 2 Signal |
Manifold Absolute Pressure (MAP) Sensor Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | OG/BK | 469 | Low Reference |
| B | L-GN | 432 | MAP Sensor Signal |
| C | GY | 2704 | 5 Volt Reference |
Supercharger Boost Control Solenoid (L32) - Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | PK | 339 | Ignition 1 Voltage |
| B | GY | 1724 | Boost Control Solenoid Control |
Throttle Actuator Control (TAC) Module Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| 1 | TN | 1274 | 5 Volt Reference |
| 2 | PU | 1272 | Low Reference |
| 3 | L-BU | 1162 | APP Sensor 2 Signal |
| 4 | D-GN | 389 | Vehicle Speed Signal |
| 5 | - | - | Not Used |
| 6 | WH | 17 | Stop Lamp Switch Signal |
| 7 | OG/BK | 1061 | UART Serial Data Secondary |
| 8 | TN/WH | 551 | Ground |
| 9-10 | - | - | Not Used |
| 11 | D-BU | 1161 | APP Sensor 1 Signal |
| 12 | BN | 1271 | Low Reference |
| 13 | WH/BK | 1164 | 5 Volt Reference |
| 14-15 | - | - | Not Used |
| 16 | TN | 800 | UART Serial Data Primary |
| 17 | TN/WH | 551 | Ground |
| 18 | PK | 39 | Ignition 1 Voltage |
| 19-20 | - | - | Not Used |
