2004 Pontiac GTO StandardFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the two fuel rail covers.

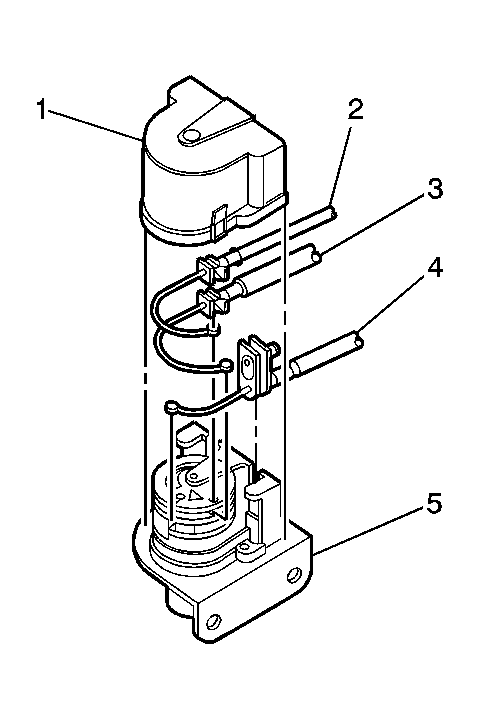

Fig 1: Exploded View Of Throttle Relaxer

Courtesy of GENERAL MOTORS CORP.

Remove the throttle relaxer cover (1).
Remove the throttle control cable (4).

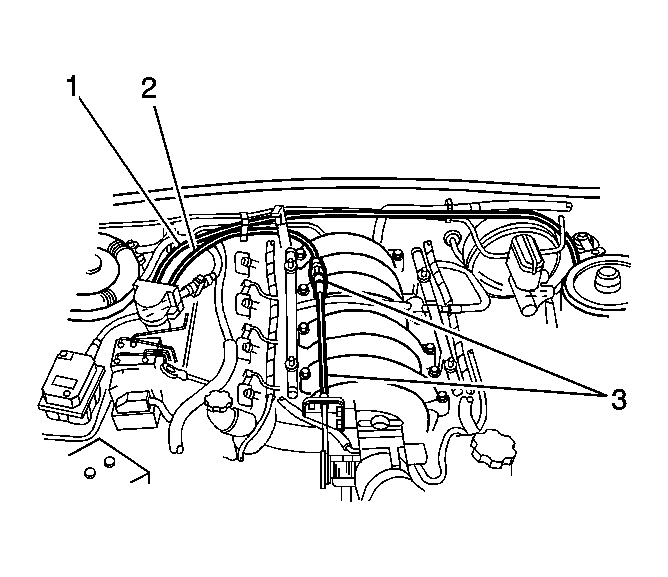

Fig 2: Locating Throttle Cable

Courtesy of GENERAL MOTORS CORP.

Open the retainer clip at the intake manifold, and remove the cable (3) from the clip.

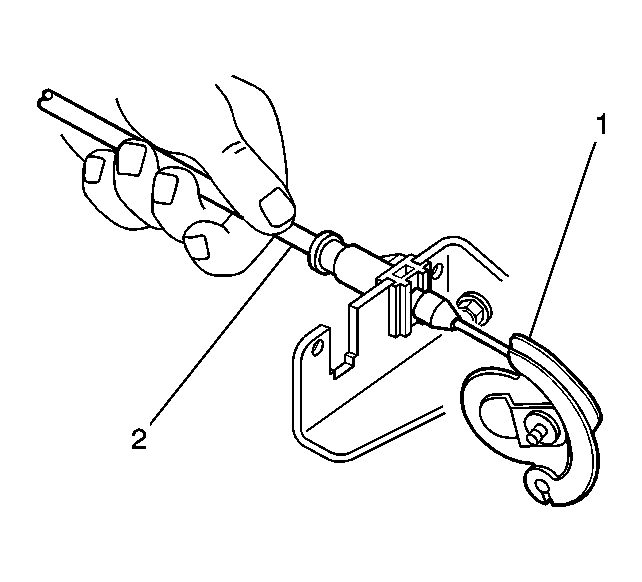

Fig 3: View Of Throttle Body Cam Lever & Throttle Cable

Courtesy of GENERAL MOTORS CORP.

Lift the throttle cable (2) up at the throttle body mounting bracket, then remove the cable from the throttle body cam lever (1).
Remove throttle cable from the vehicle.
