2004 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
NOTE:
The TP sensor is an electrical component. Do not soak the TP sensor in any liquid cleaner or solvent as damage may result.
- Depress the power steering reservoir retaining clip and lift it up on the reservoir and set aside.
- Unbolt and remove the power steering reservoir mounting bracket. Refer to Remote PS Fluid Reservoir Bracket Replacement in Power Steering.
- Disconnect the TP sensor electrical connector.

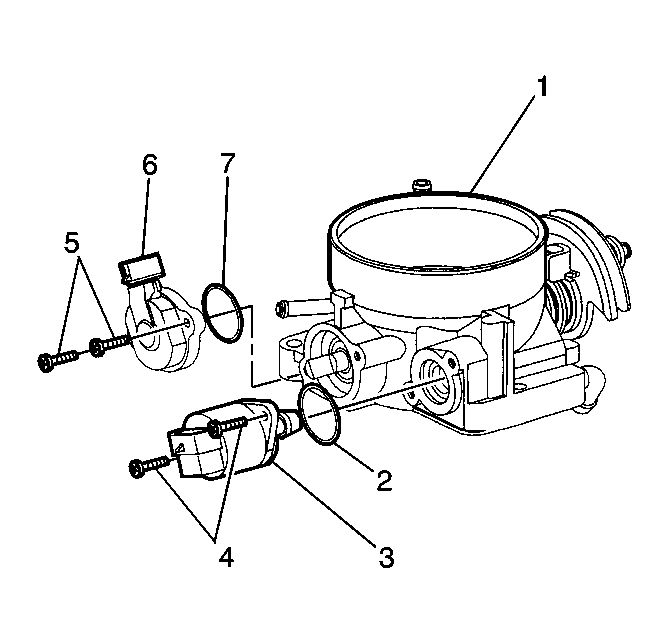

- Remove the TP sensor attaching screws (5).
- Remove the TP sensor (6).
- Remove the TP sensor O-ring seal (7).
