2004 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel tank assembly. Refer to Fuel Tank Replacement .
- Remove the modular fuel pump and sender assembly from the fuel tank. Refer to Fuel Sender Assembly Replacement .IMPORTANT: Do not pull or lever the fuel tank pressure sensor out from the connector end as damage may occur to the sensor body.

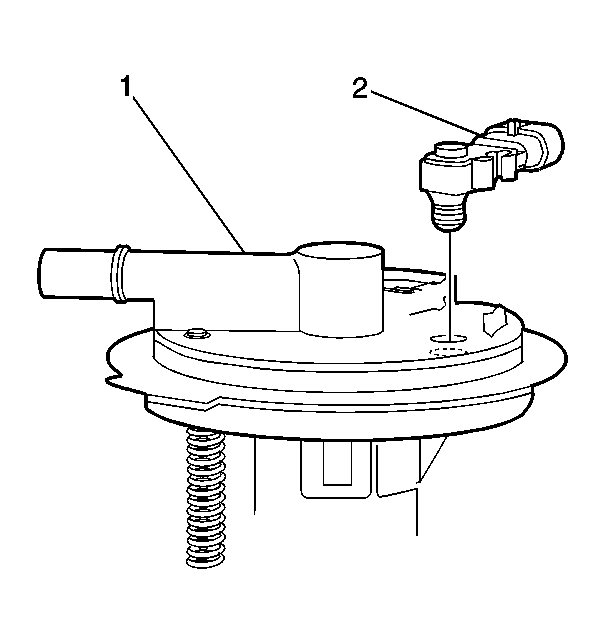

- Remove the fuel tank pressure sensor (2) from the sender assembly cover (1).
