2004 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the modular fuel sender assembly from the fuel tank. Refer to Fuel Sender Assembly Replacement .

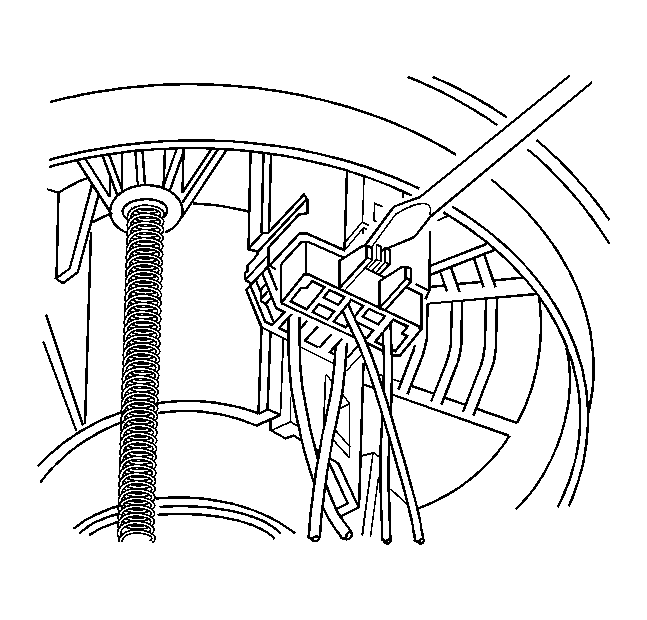

Fig 1: View Of Fuel Level Sender Assembly Harness Connector

Courtesy of GENERAL MOTORS CORP.

Use a flat-bladed driver to assist removal of the fuel level sender assembly harness connector from underneath the modular fuel pump and sender assembly cover.

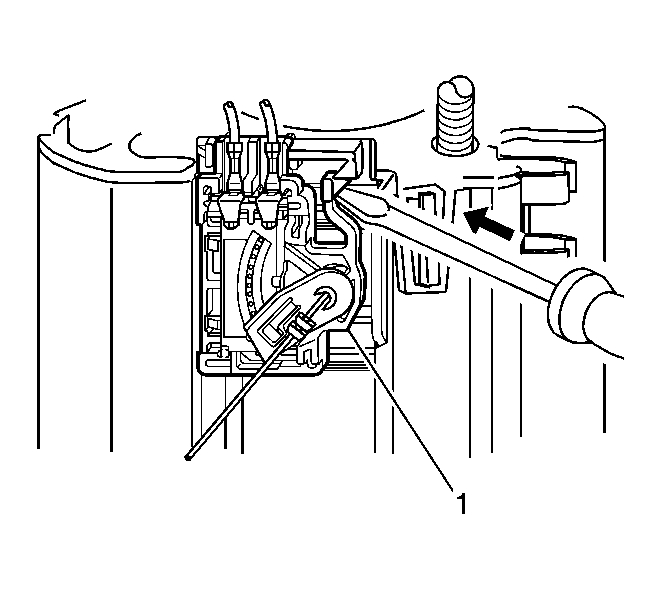

Fig 2: View Of Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

Pry the tang open that holds the fuel sender assembly (1) to the side of the reservoir, then lift it OFF from the reservoir.
