2004 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
- Remove the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical 5.7L.
- Remove the Camshaft Position (CMP) sensor electrical connector.IMPORTANT: Clean the area around the CMP before removal in order to avoid debris from entering the engine.

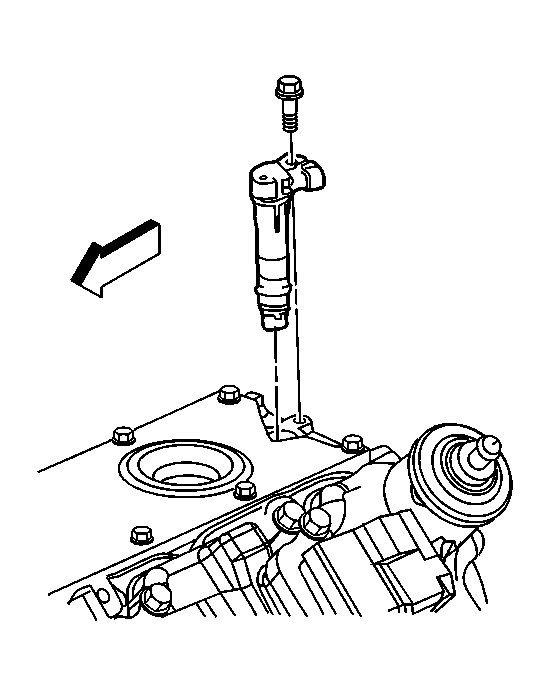

- Remove the CMP sensor retaining bolt.
- Remove the CMP sensor.
