2004 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE
Accelerator Controls Pedal Replacement: Notes
- Remove the two fuel rail covers.
- Remove the throttle relaxer cover (1).
- Remove the cruise control cable (2).
- Remove the accelerator pedal cable (3).
- Remove the retainer clip at the theft deterrent horn bracket.
- Remove the left instrument panel lower trim. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel Gages, and Console.

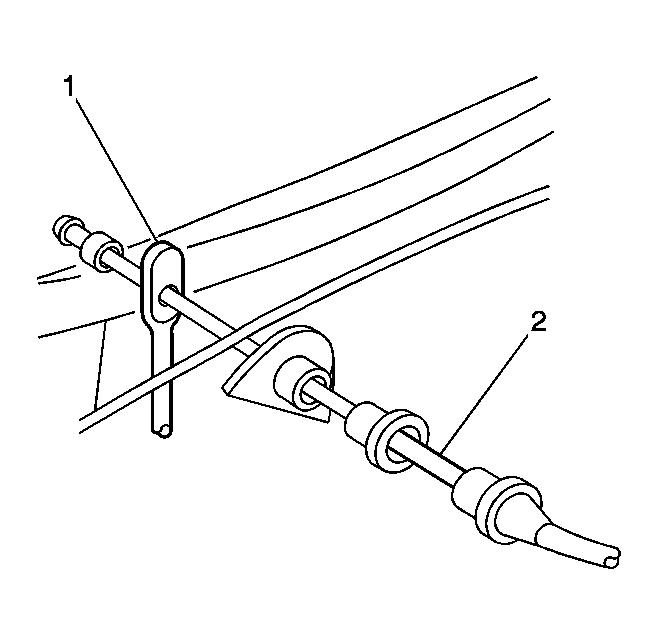

- Disconnect the accelerator pedal cable (2) from the accelerator pedal lever (1), inside the vehicle
- After releasing the accelerator pedal cable from the slot in the accelerator pedal lever (1), pull the cable through the dash panel from the engine side.
- Remove the accelerator cable from the vehicle.
