2004 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the Brake Pressure Modulator Valve (BPMV). Refer to Brake Pressure Modulator Valve (BPMV) Replacement .

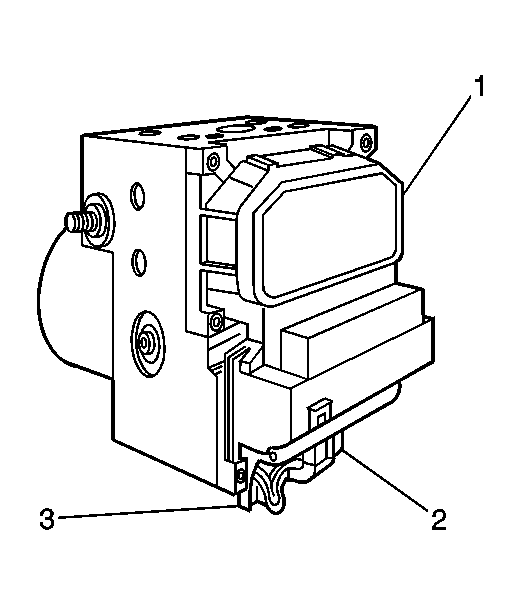

Fig 1: View Of EBCM, BPMV Motor Wiring Connector & Retainer

Courtesy of GENERAL MOTORS CORP.

Disconnect the BPMV motor wiring connector (2) from the electronic brake control module (1) (EBCM).
Remove the wiring from the retainer (3) on the EBCM.

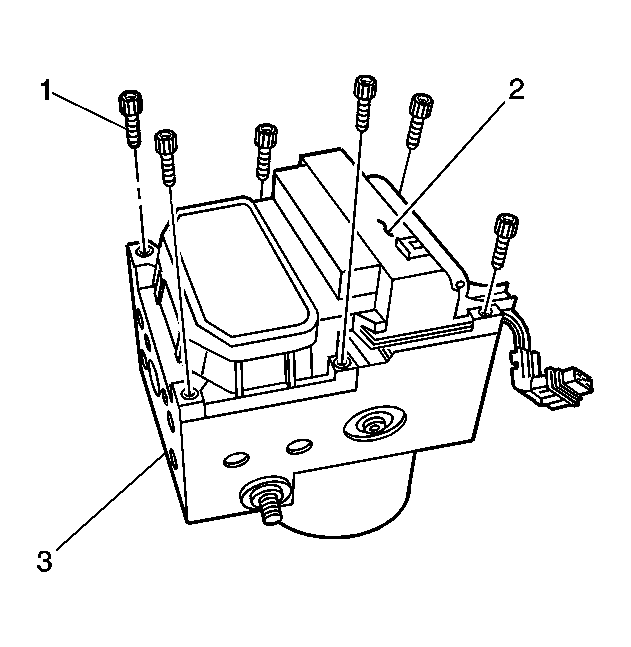

Fig 2: View Of EBCM, BPMV & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove 6 bolts (1) from the EBCM (2) and remove the EBCM from the BPMV (3).

Chapter Navigation

Return to Chapter: Electronic Brake Control Module Replacement
