Installation Procedure

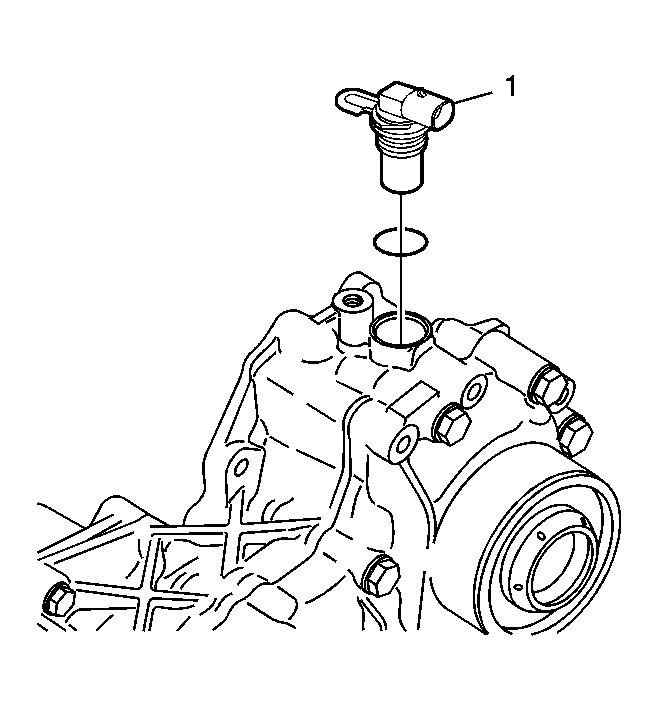

- Install the O-ring to the speed sensor, if removed.
- Install the speed sensor (1) to the transfer case.

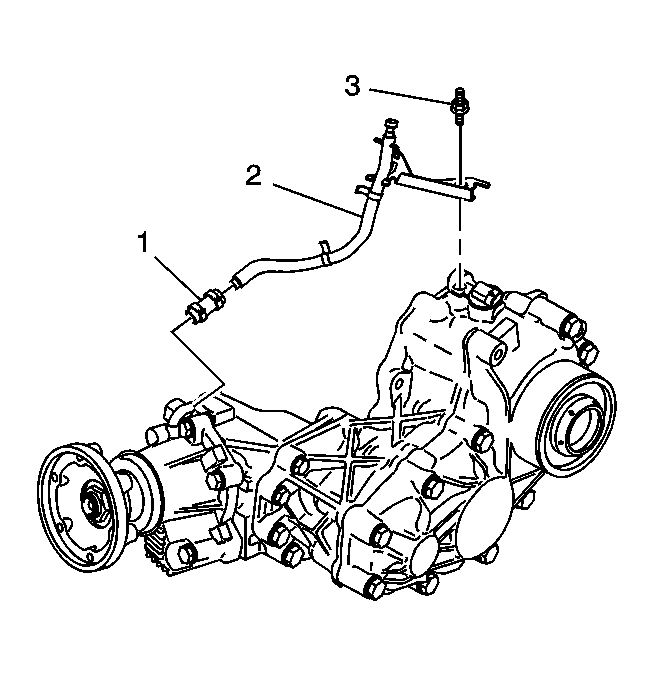

- Position the pinion housing vent hose (2) and mounting bracket to the speed sensor bolt boss.
- Install the speed sensor bolt (3) to the transfer case.
Tighten: Tighten the bolt to 30 N.m (22 lb ft).
- Connect the electrical connector to the speed sensor.
- Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- Lower the vehicle.
