Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

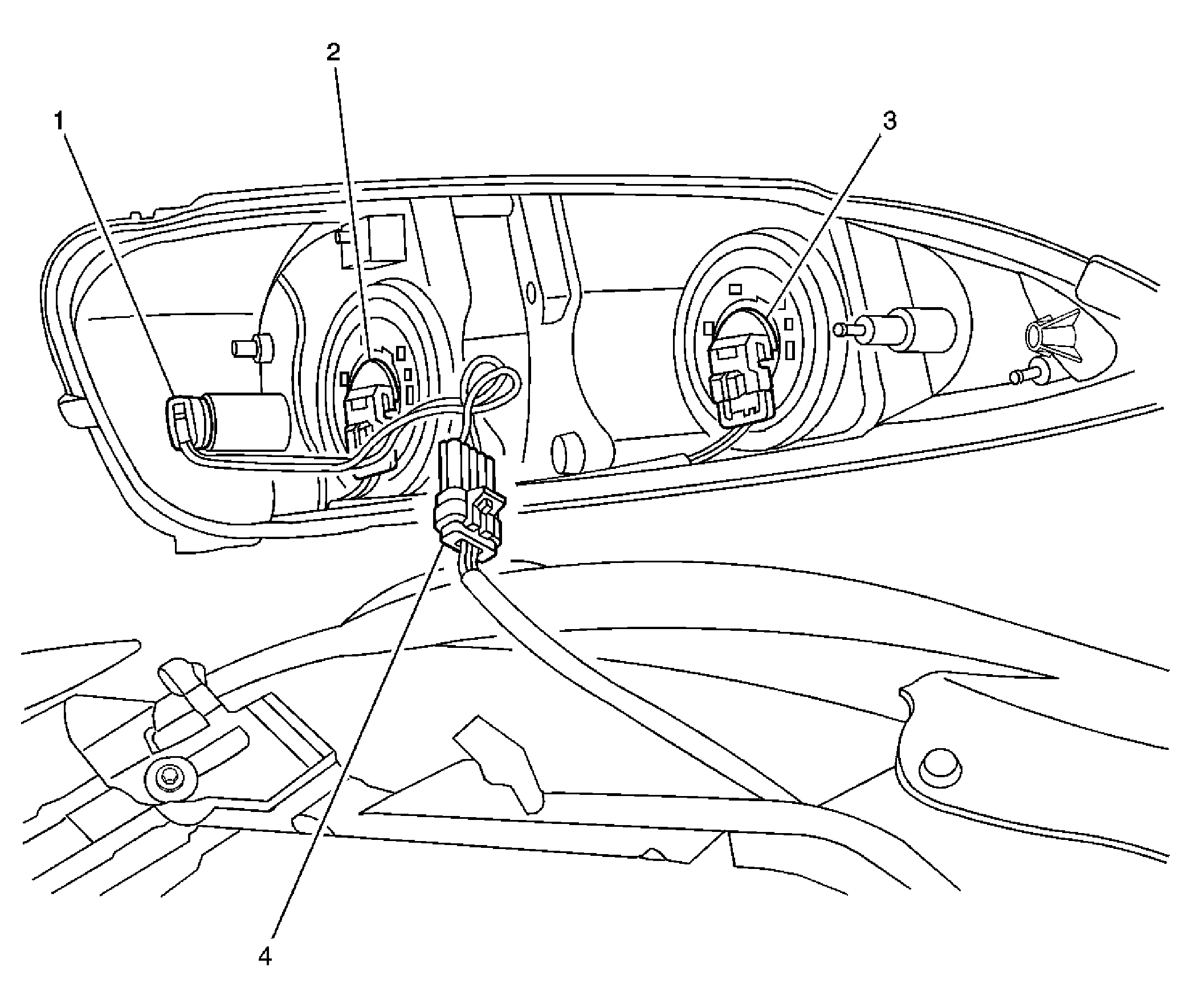

Fig 1: Left Front Of The Vehicle Component Views
GM1212221Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - LF
2 Headlamp - Low Beam - Left
3 Headlamp - High Beam - Left
4 C141

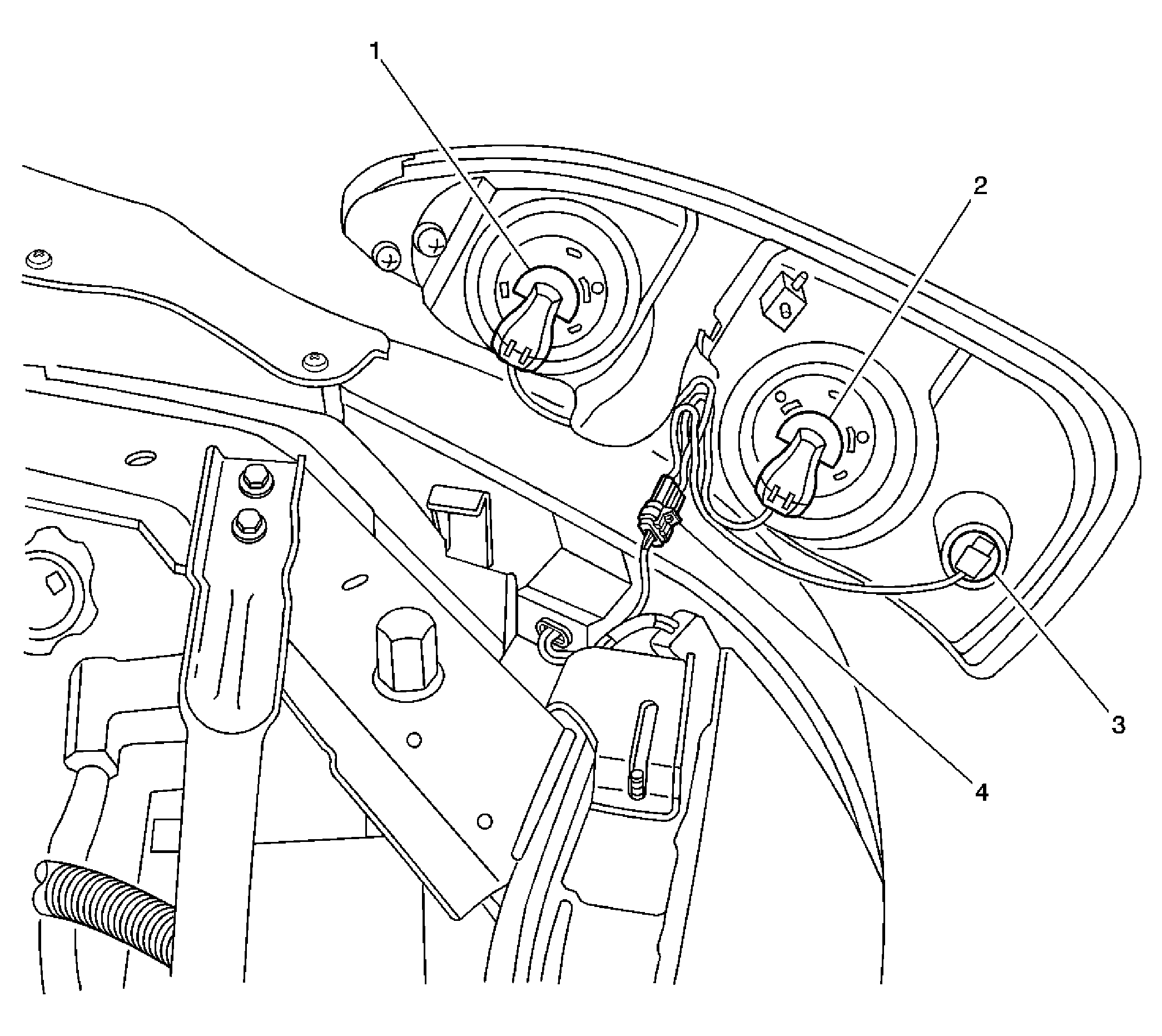

Fig 2: Right Front Of The Vehicle Component Views
GM1212222Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - High Beam - Right
2 Headlamp - Low Beam - Right
3 Marker Lamp - RF
4 C142

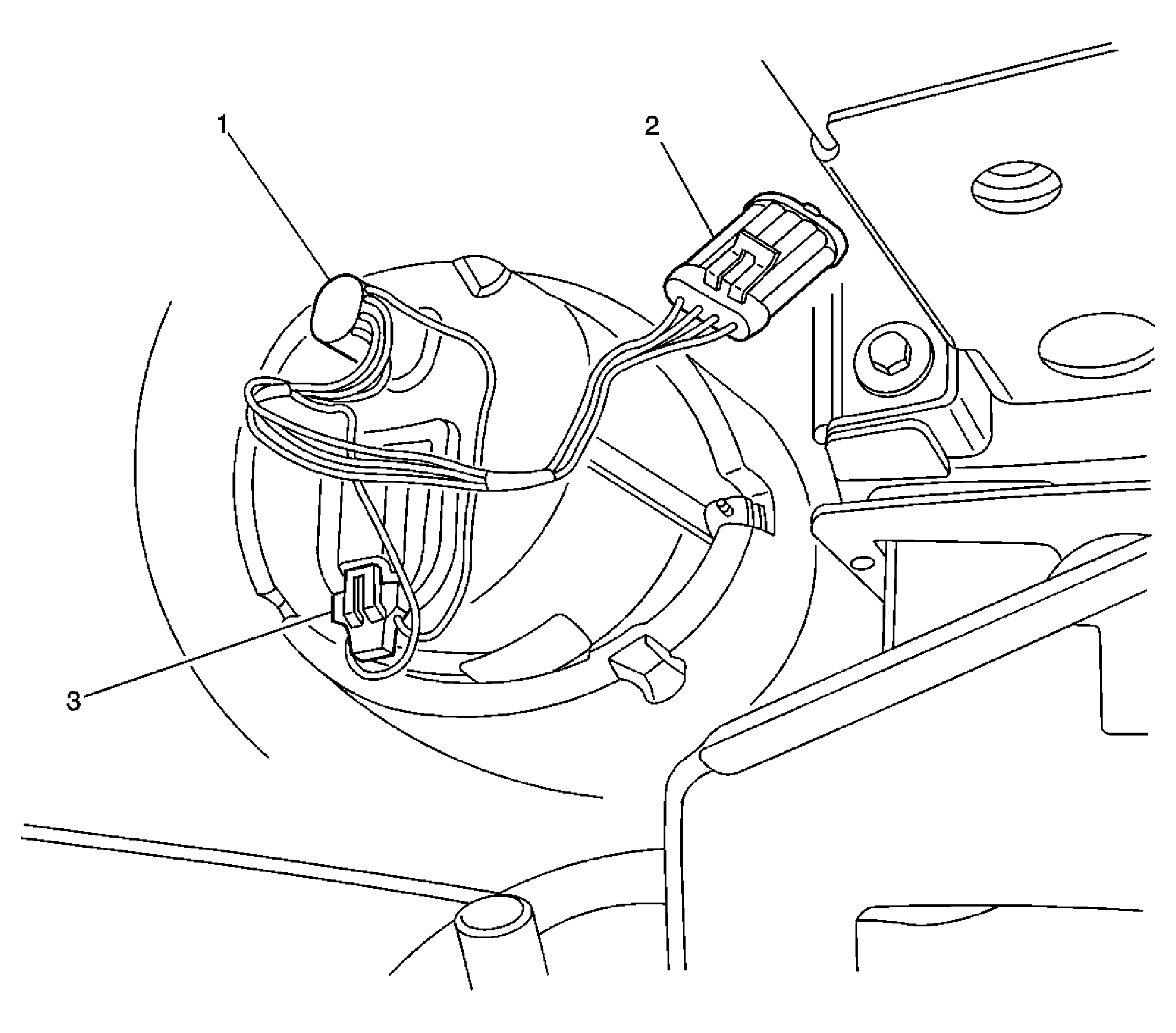

Fig 3: Left Front Frame And Underbody Component Views
GM1212223Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp - LF
2 C143
3 Fog Lamp - LF

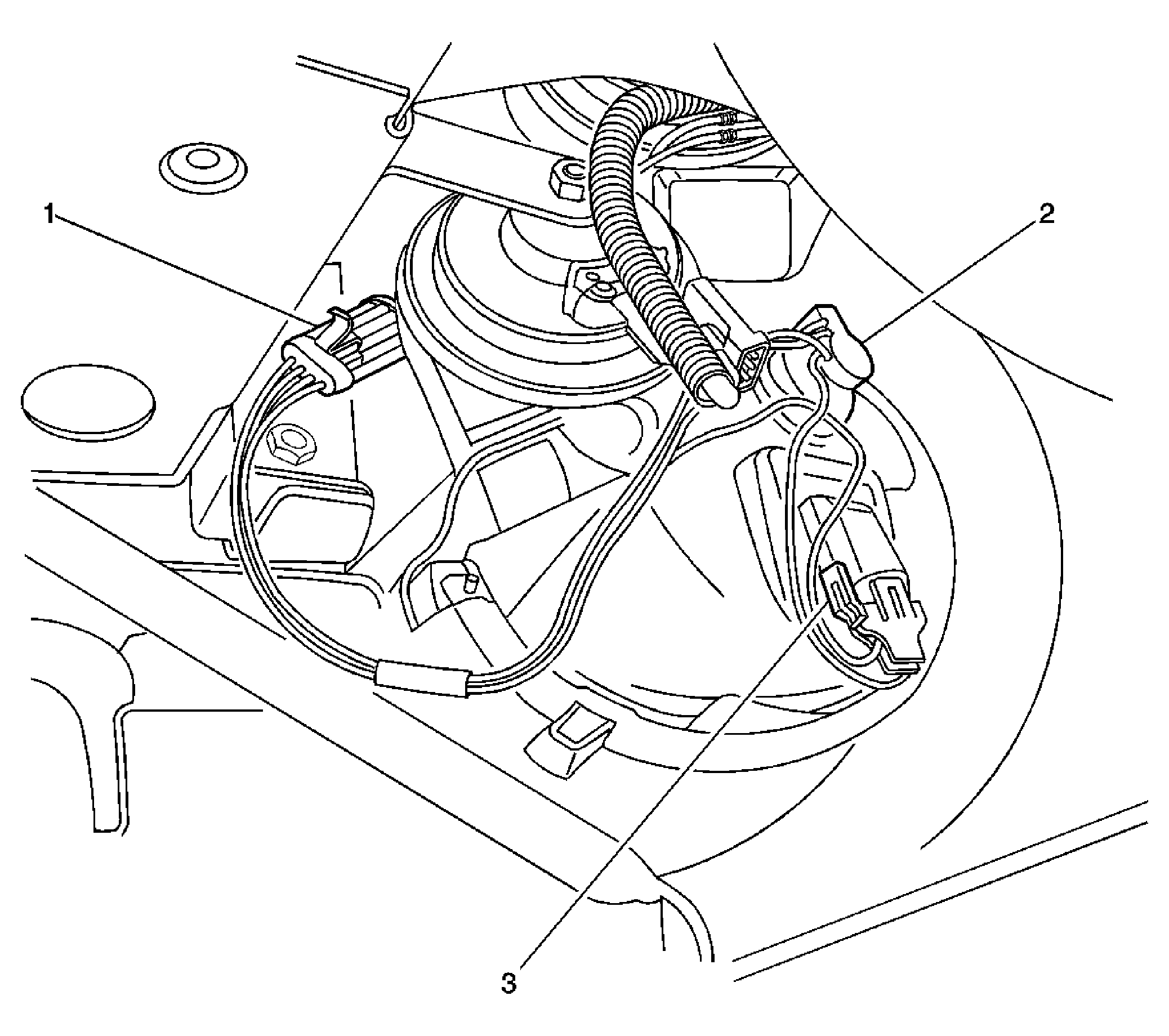

Fig 4: Right Front Frame and Underbody Component Views
GM1212227Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C144
2 Park/Turn Signal Lamp - RF
3 Fog Lamp - RF
Fig 5: Top Of I/P Component Views
GM1214906Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - Center (U87)
2 Remote Control Door Lock Receiver (RCDLR)
3 Ambient Light Sensor
4 Theft LED
Fig 6: Left Side Of The I/P Component Views
GM1206068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Multifunction Turn Signal Lever
2 TAP Shift Switch - Left
3 Hazard Warning Switch
4 Instrument Panel Cluster (IPC)
5 TAP Shift Switch - Right
6 Windshield Wiper/Washer Switch
7 Ignition Switch
8 Driver Information Center (DIC)
9 Radio
10 HVAC Control Module
11 Heated Seat Switch - Front Passenger
12 Rear Defogger Switch
13 Heated Seat Switch - Driver
14 Steering Wheel Controls - Right
15 Cruise Control Switch
16 Inflatable Restraint Steering Wheel Module
17 Tilt Steering Wheel Lever
18 Steering Wheel Controls - Left
19 Interior Lamp Switch
Fig 7: Left Footwell Component Views
GM1320525Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accelerator Pedal Position (APP) Sensor
2 Brake Pedal Position Sensor

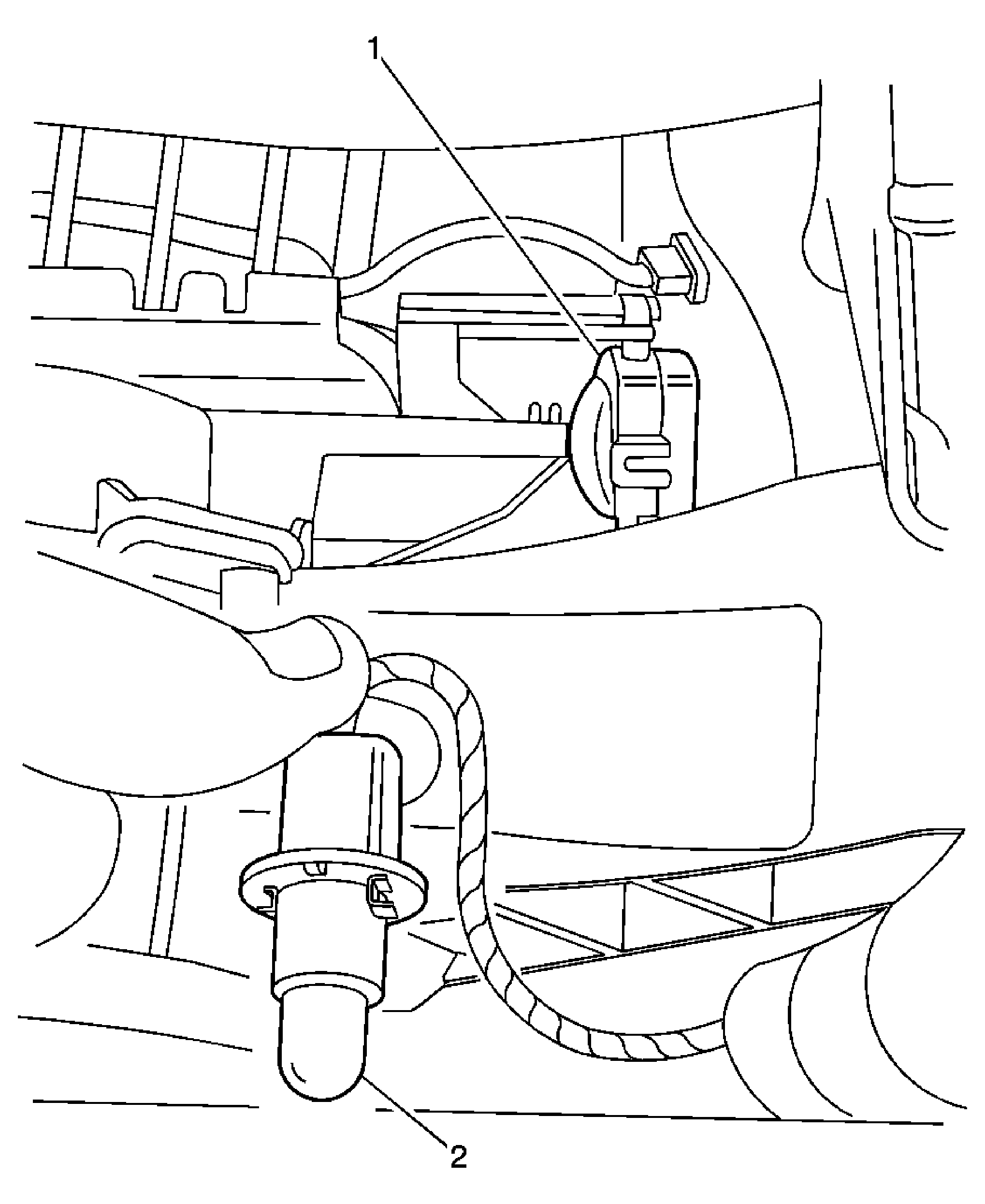

Fig 8: Lower Right Of The I/P Component Views
GM1212228Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor Control Processor
2 I/P Courtesy Lamp - Right

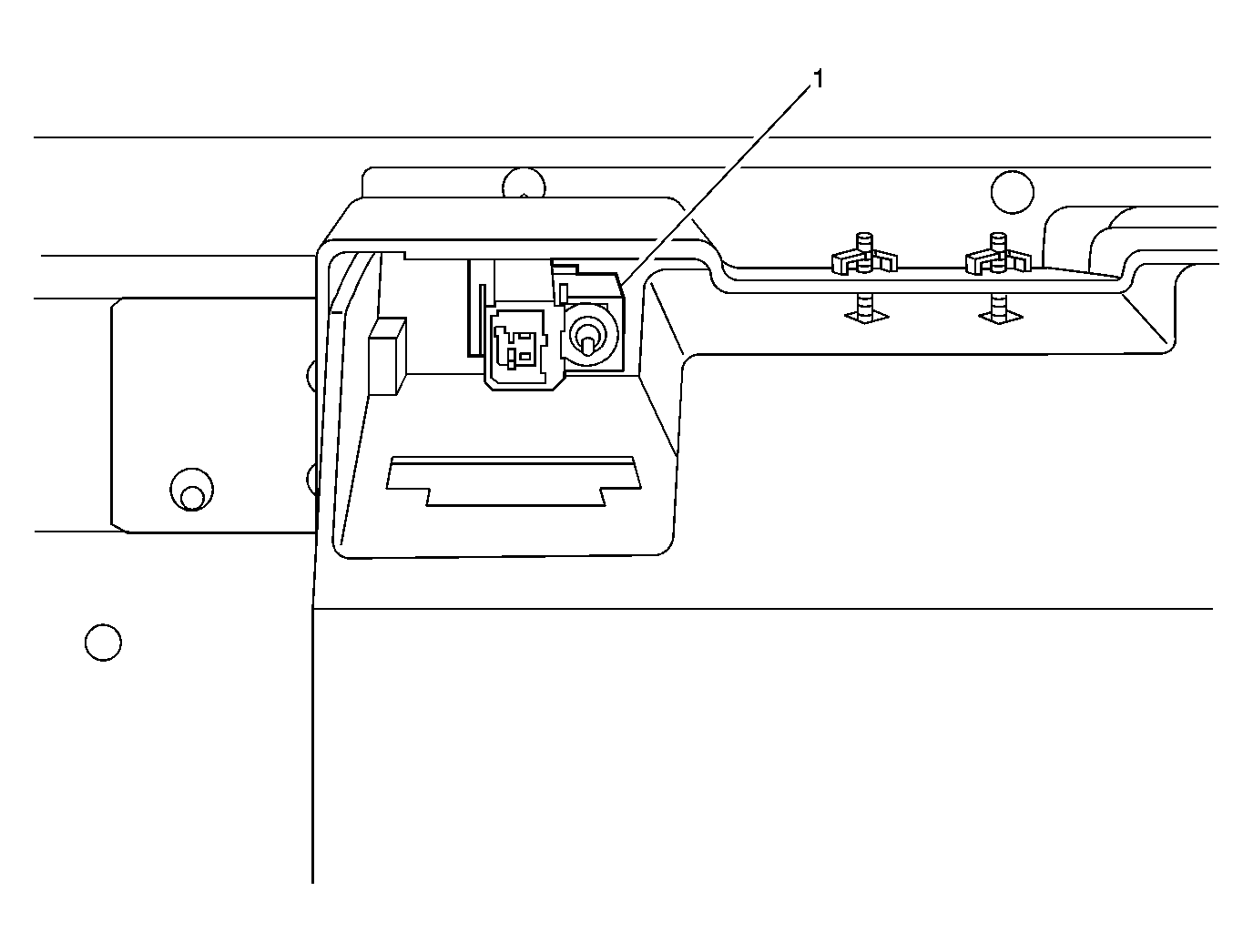

Fig 9: Behind I/P Compartment Component Views
GM1212231Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Compartment Lamp and Switch
Fig 10: Inside Center Console Component Views
GM1211267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/T Shift Lock Control Solenoid
2 PRNDL Lamp
3 C241
4 C240
Fig 11: Above Front Windshield Component Views
GM1322532Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vanity Mirror Lamp - Left Connector
2 Left Sunshade
3 Right Sunshade
4 Vanity Mirror Lamp - Right Connector
5 Vanity Mirror Lamp - Right
6 Inside Rearview Mirror
7 Vanity Mirror Lamp - Left

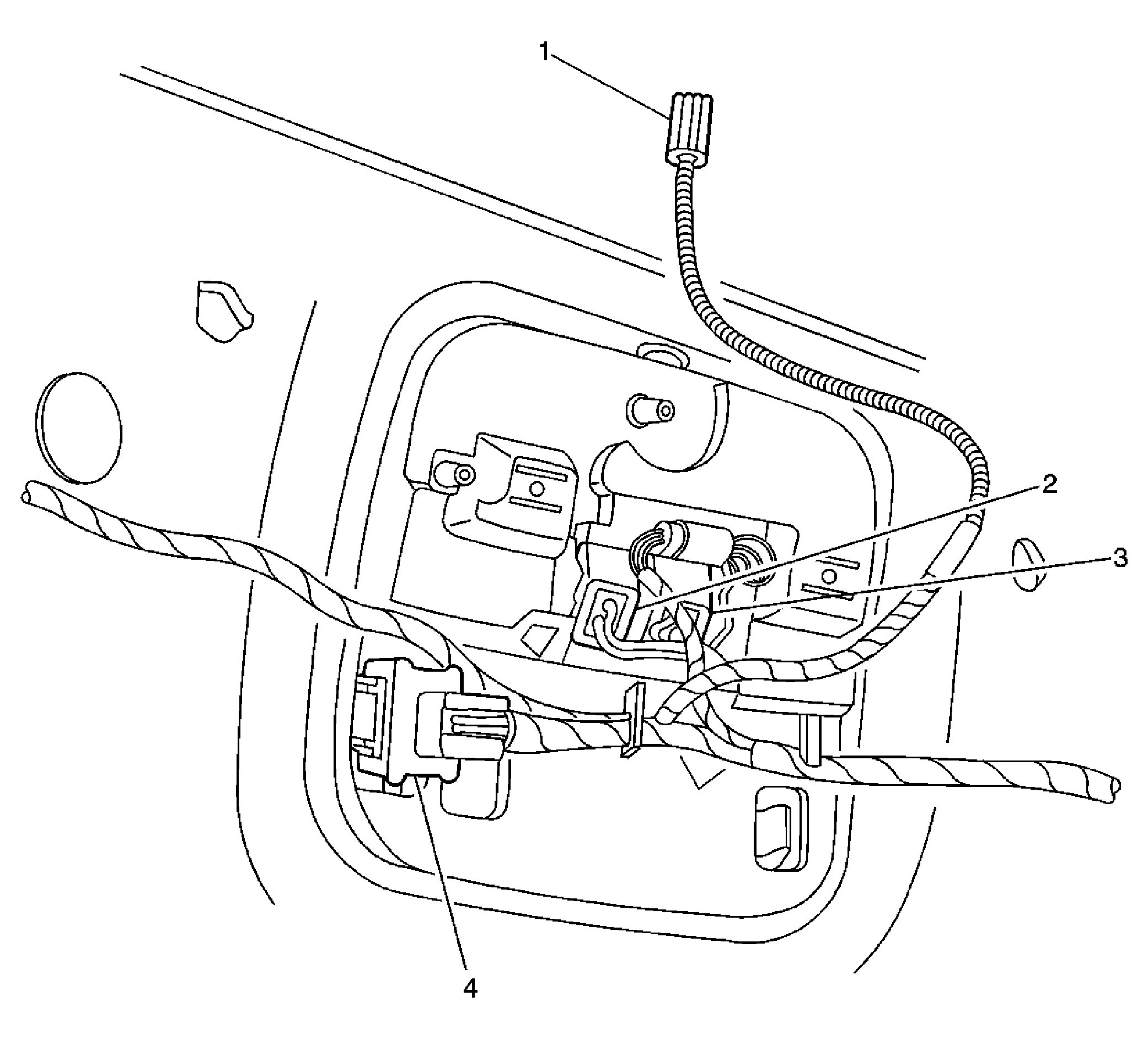

Fig 12: Roof Headliner, Front Component Views
GM1212236Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror Connector
2 LH Courtesy/Reading Lamp (TR9)
3 RH Courtesy/Reading Lamp (TR9)
4 Sunroof Switch

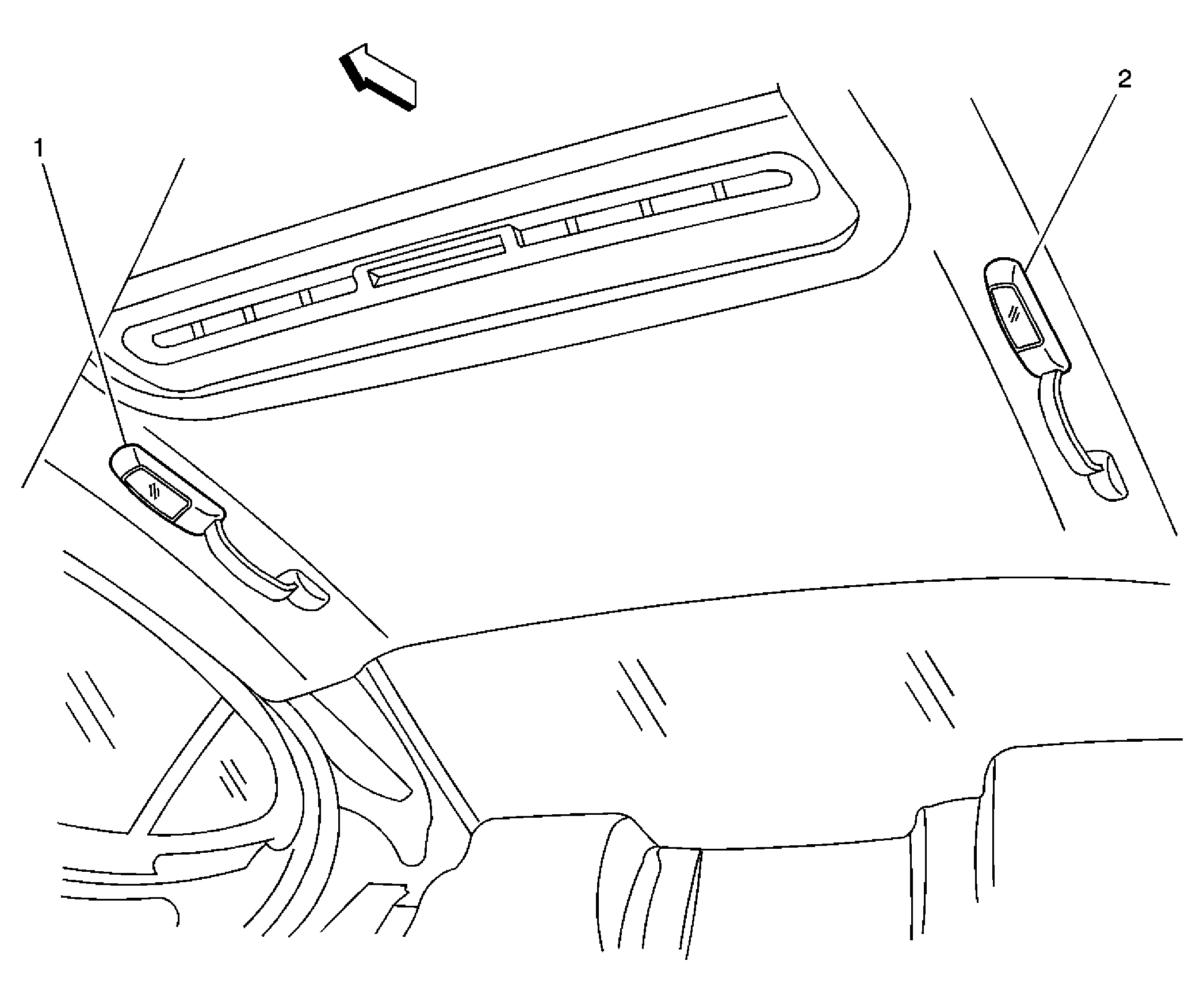

Fig 13: Roof Headliner Rear Component Views
GM1212237Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Courtesy/Reading Lamp - Left
2 Courtesy/Reading Lamp - Right
Fig 14: Left Side Of The Rear Window Shelf Component Views
GM1215411Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - LR (Speaker - RR Similar)
2 Rear Compartment Courtesy Lamp
3 Audio Amplifier (U87)
4 Audio Amplifier - C2 (U87)
5 Audio Amplifier - C1 (U87)

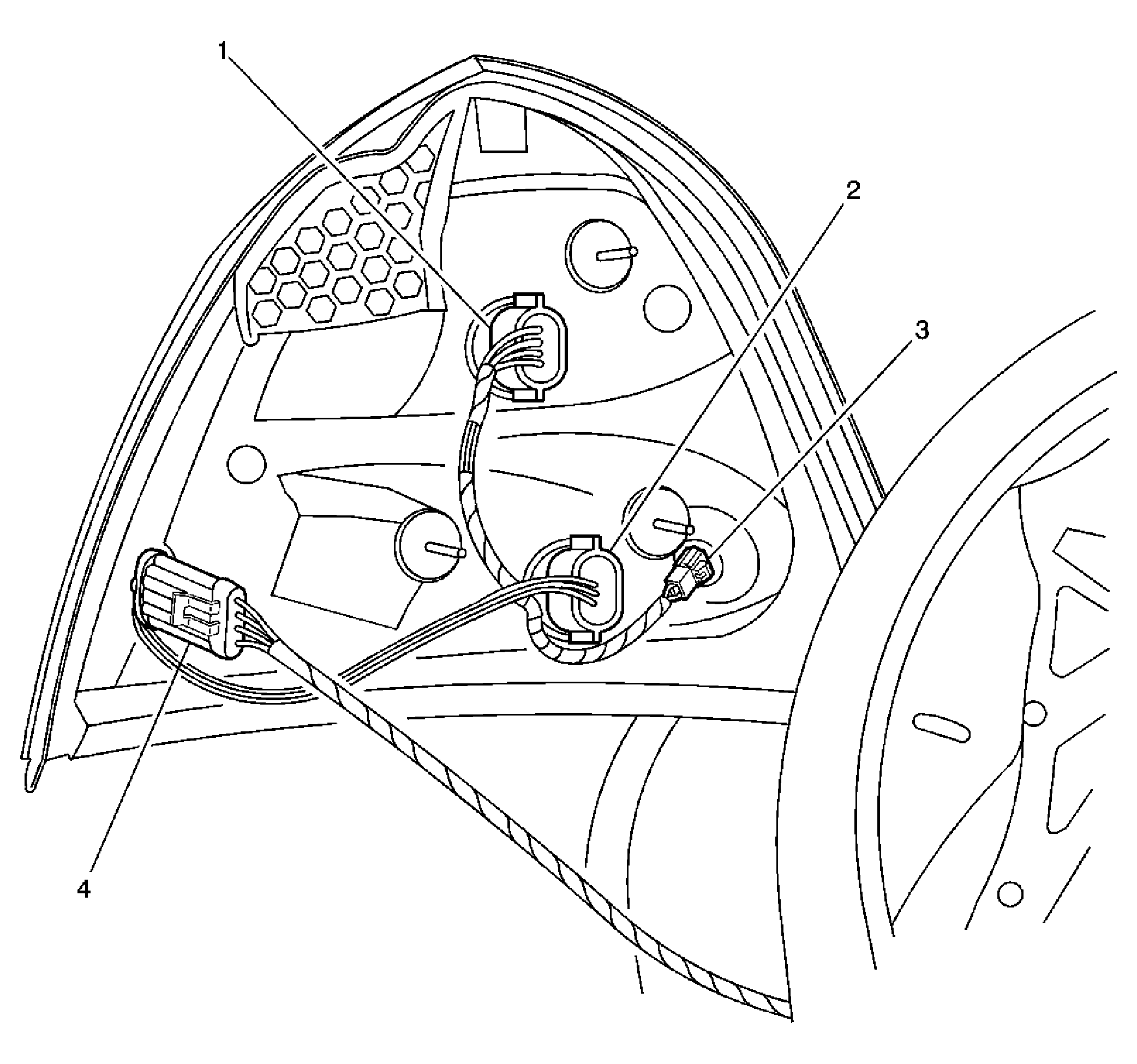

Fig 15: Left Rear Lamp Assembly Component Views
GM1212238Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tail Lamp - Left
2 Tail/Stop and Turn Signal Lamp - Left
3 Marker Lamp - LR
4 C401
Fig 16: Rear Of Vehicle Component Views
GM1320648Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Antenna
2 Center High Mounted Stop Lamp (CHMSL)
3 Backup Lamp - Right
4 License Lamp - Right
5 License Lamp - Left
6 Backup Lamp - Left

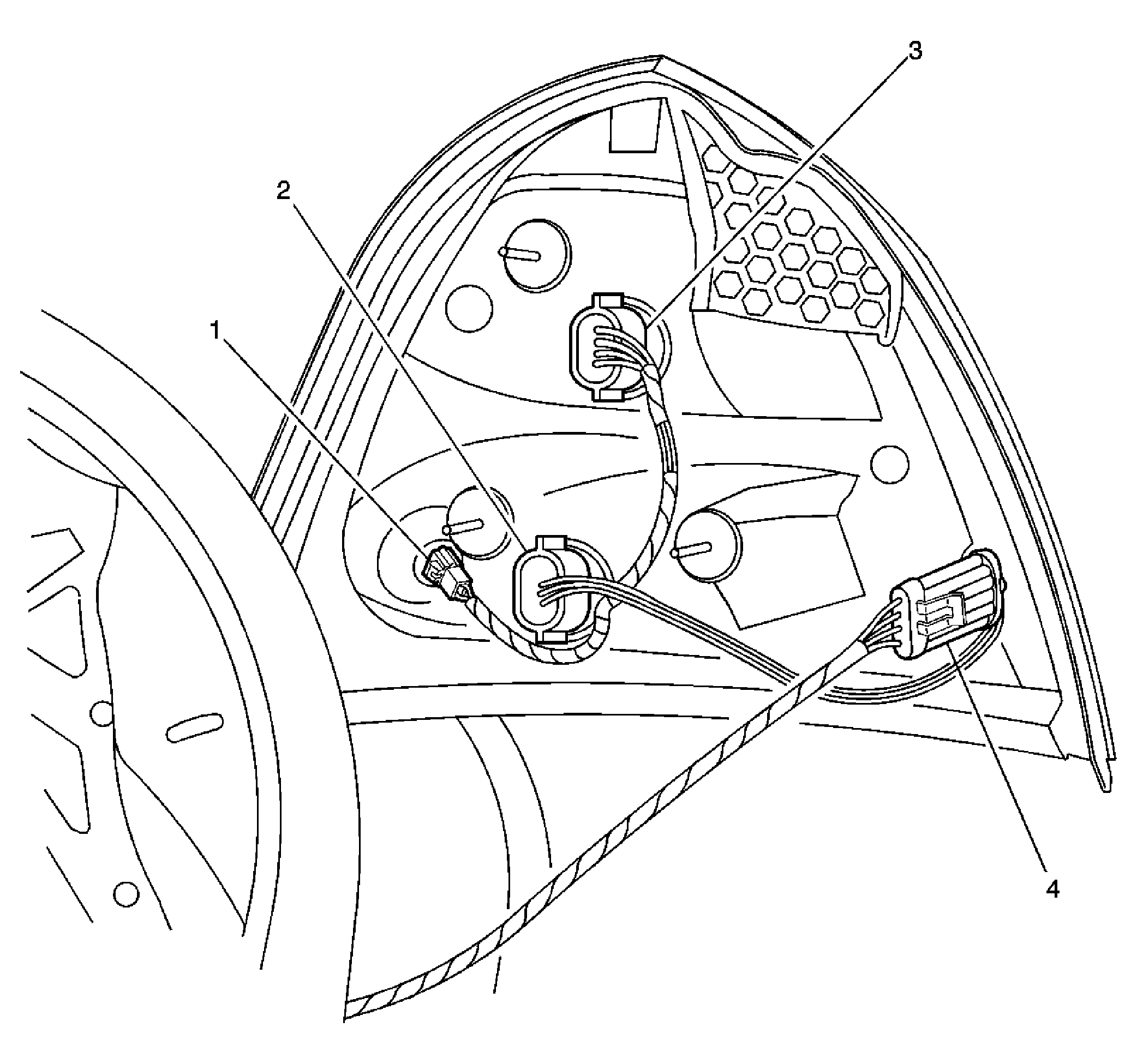

Fig 17: Right Rear Lamp Assembly Component Views
GM1212239Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - RR
2 Tail/Stop and Turn Signal Lamp - Right
3 Tail Lamp - Right
4 C402
