2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Cellular Communication Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

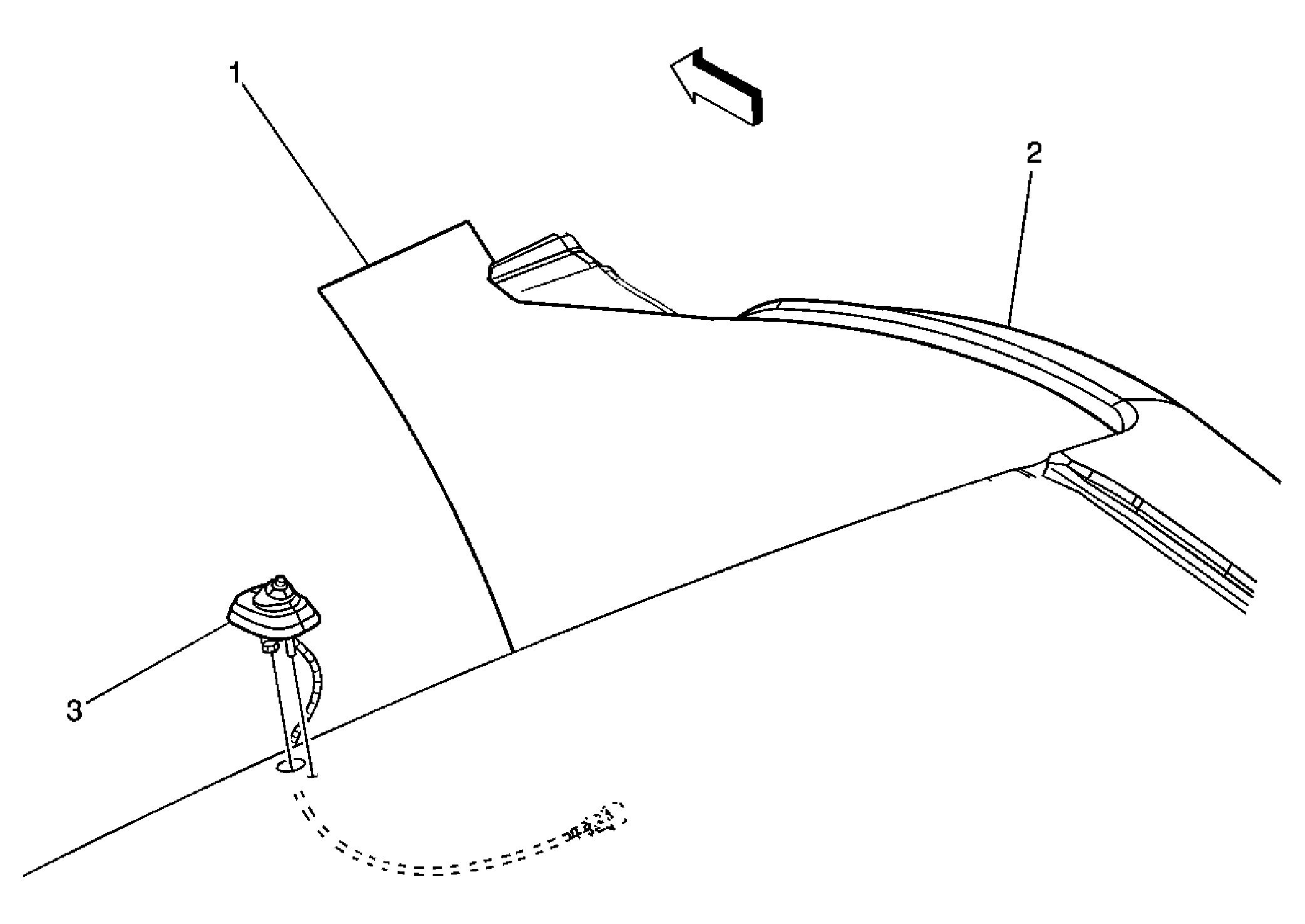

Fig 1: Front Center Of Roof Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Windshield
2	Right Front A-Pillar
3	Cellular Antenna

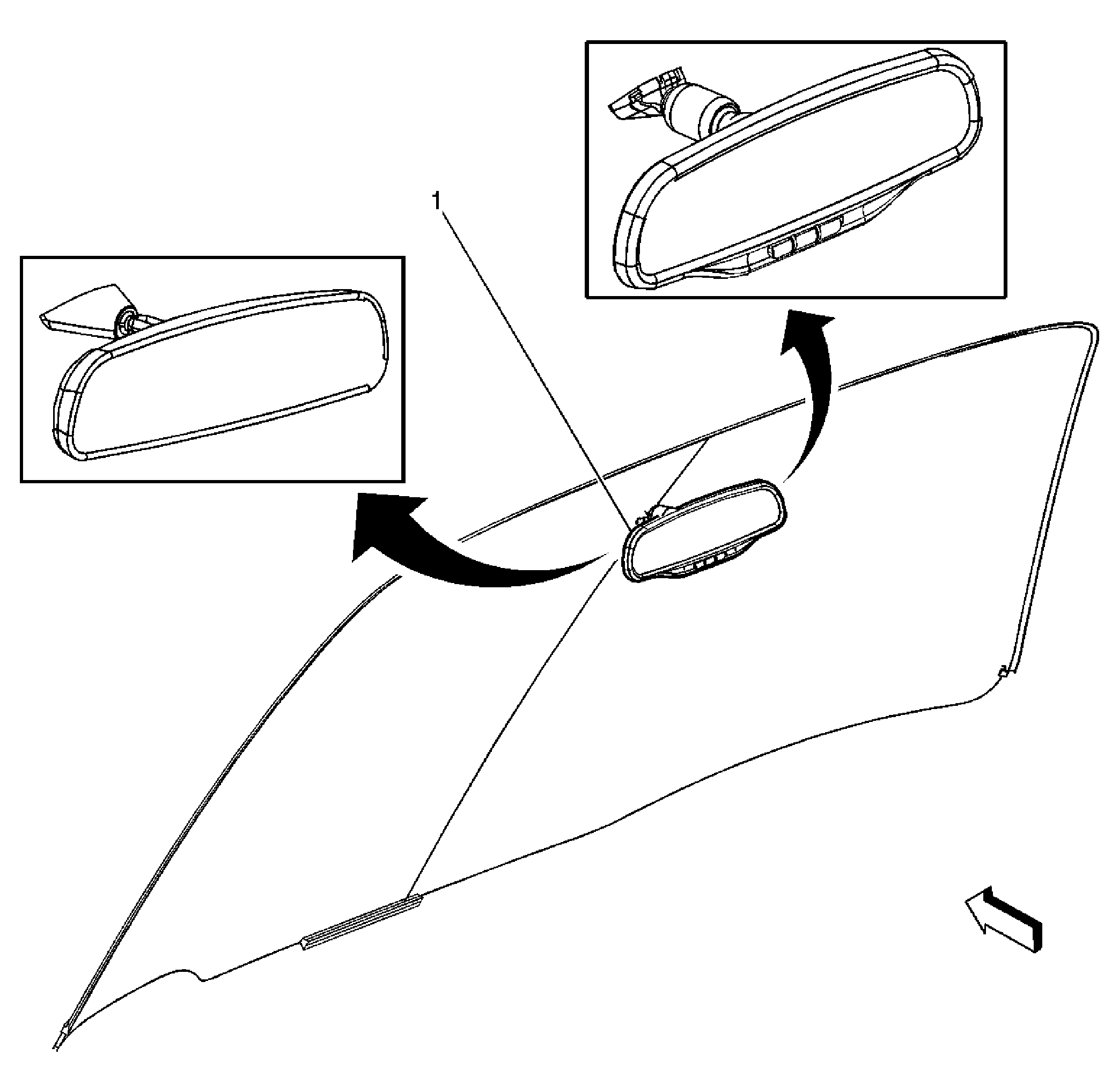

Fig 2: View Of Roof/Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror

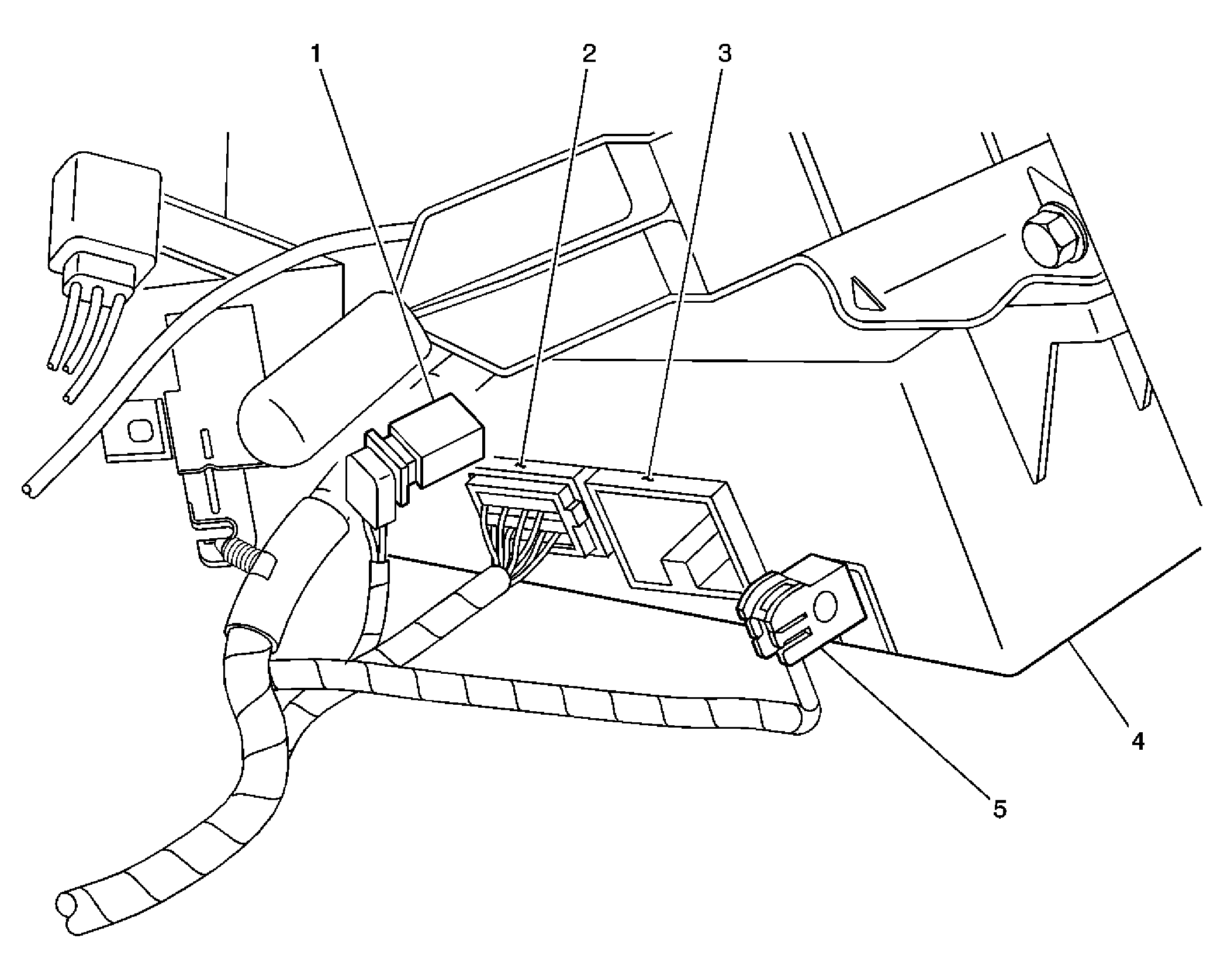

Fig 3: Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna
2	Vehicle Communications Interface Module (VCIM) - C1
3	Vehicle Communications Interface Module (VCIM) - C2
4	Vehicle Communications Interface Module (VCIM)
5	Navigation Antenna

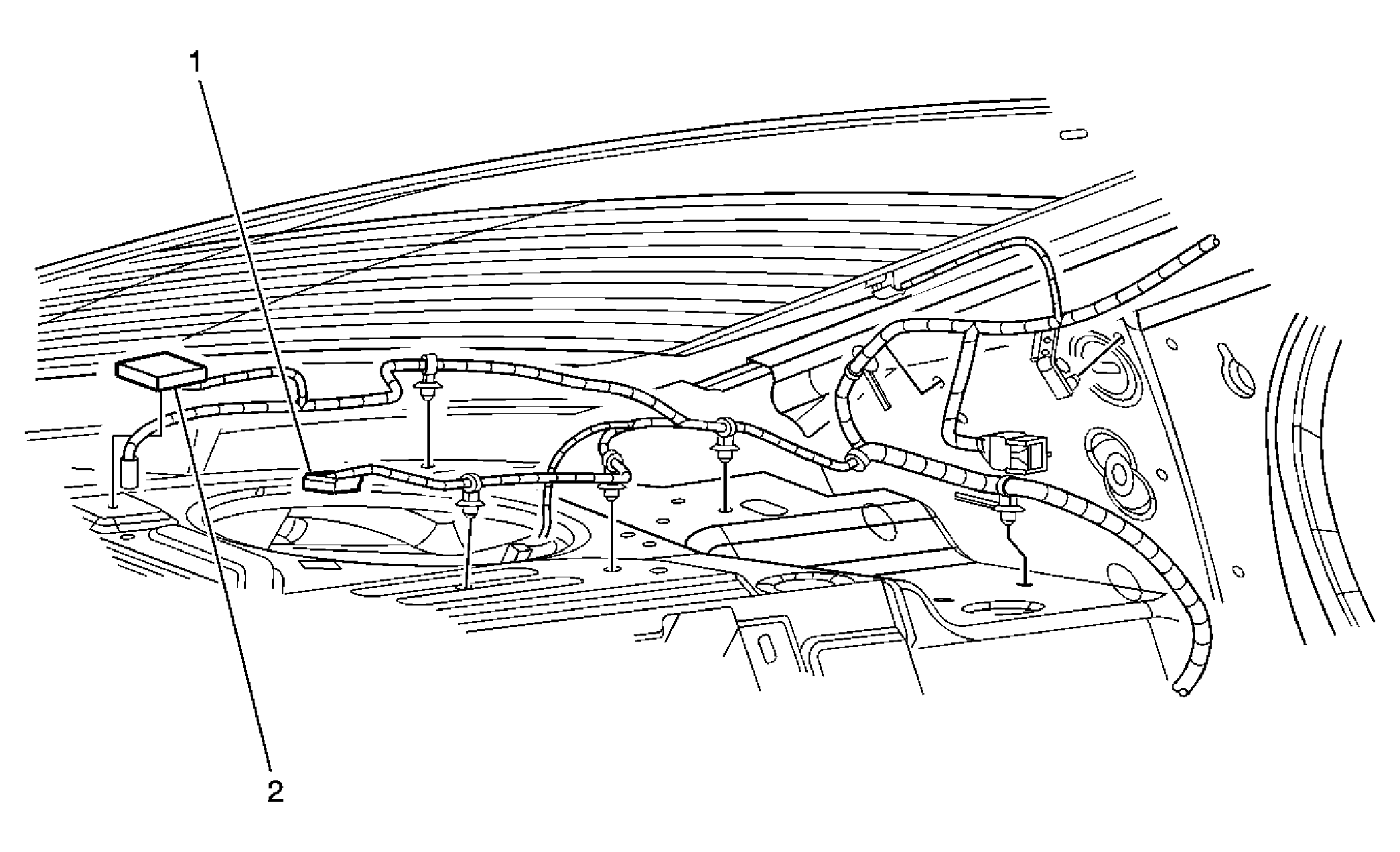

Fig 4: Top Left Side Of Rear Package Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Compass Module
2	Navigation Antenna
