2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the TP sensor O-ring to the TP sensor.

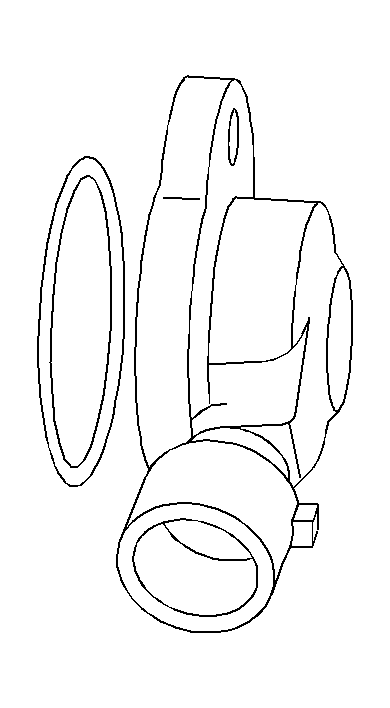

    2. Fig 1: Installing TP Sensor O-Ring
    GM201503Courtesy of GENERAL MOTORS CORP.
  2. Install the TP sensor.
    3. Fig 2: Installing TP Sensor
    GM201473Courtesy of GENERAL MOTORS CORP.
  3. Apply thread-locking compound LOCTITE® 262, GM P/N 12345493 (Canadian P/N 10953488) or equivalent to the TP sensor screws.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the TP sensor screws.

    Tighten:  Tighten the screws to 2.0 N.m (18 lb in).

    5. Fig 3: Installing TP Sensor Screws
    GM201482Courtesy of GENERAL MOTORS CORP.
  5. Connect the TP sensor electrical connector.
    6. Fig 4: View Of TP Sensor & Electrical Connector
    GM69065Courtesy of GENERAL MOTORS CORP.
  6. Connect the fuel lines. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
