2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Cellular Communication Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

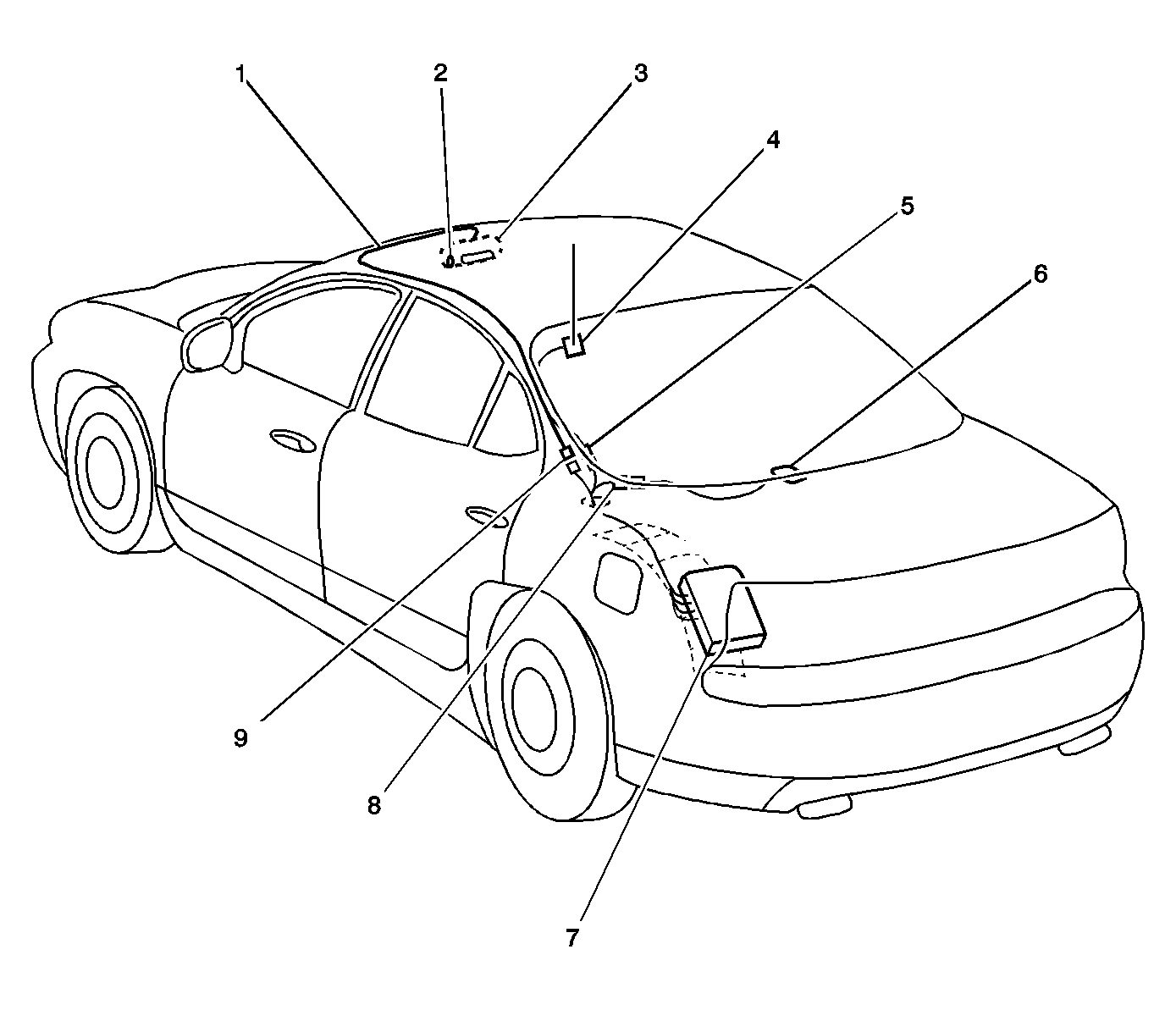

Fig 1: OnStar Subsystem
GM772332Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Harness
2 OnStar Button Assembly
3 Inside Rearview Mirror
4 Cellular Antenna
5 C393
6 Navigation Antenna
7 Vehicle Communication Interface Module (VCIM)
8 C395
9 C392

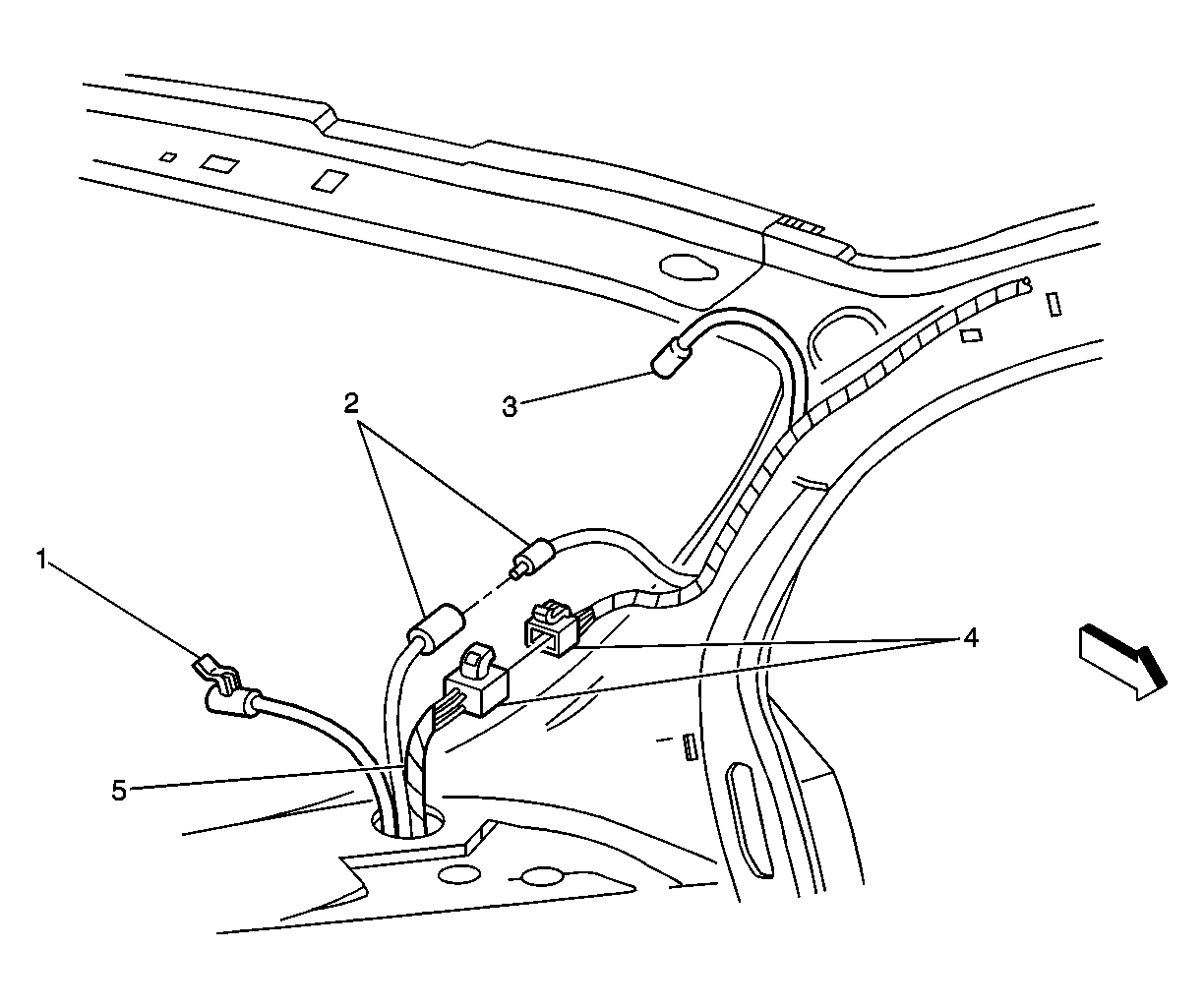

Fig 2: Above Left Side of Package Shelf
GM695155Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C395
2 C393
3 Cellular Antenna Coax Connector
4 C392
5 Main Body Wiring Harness

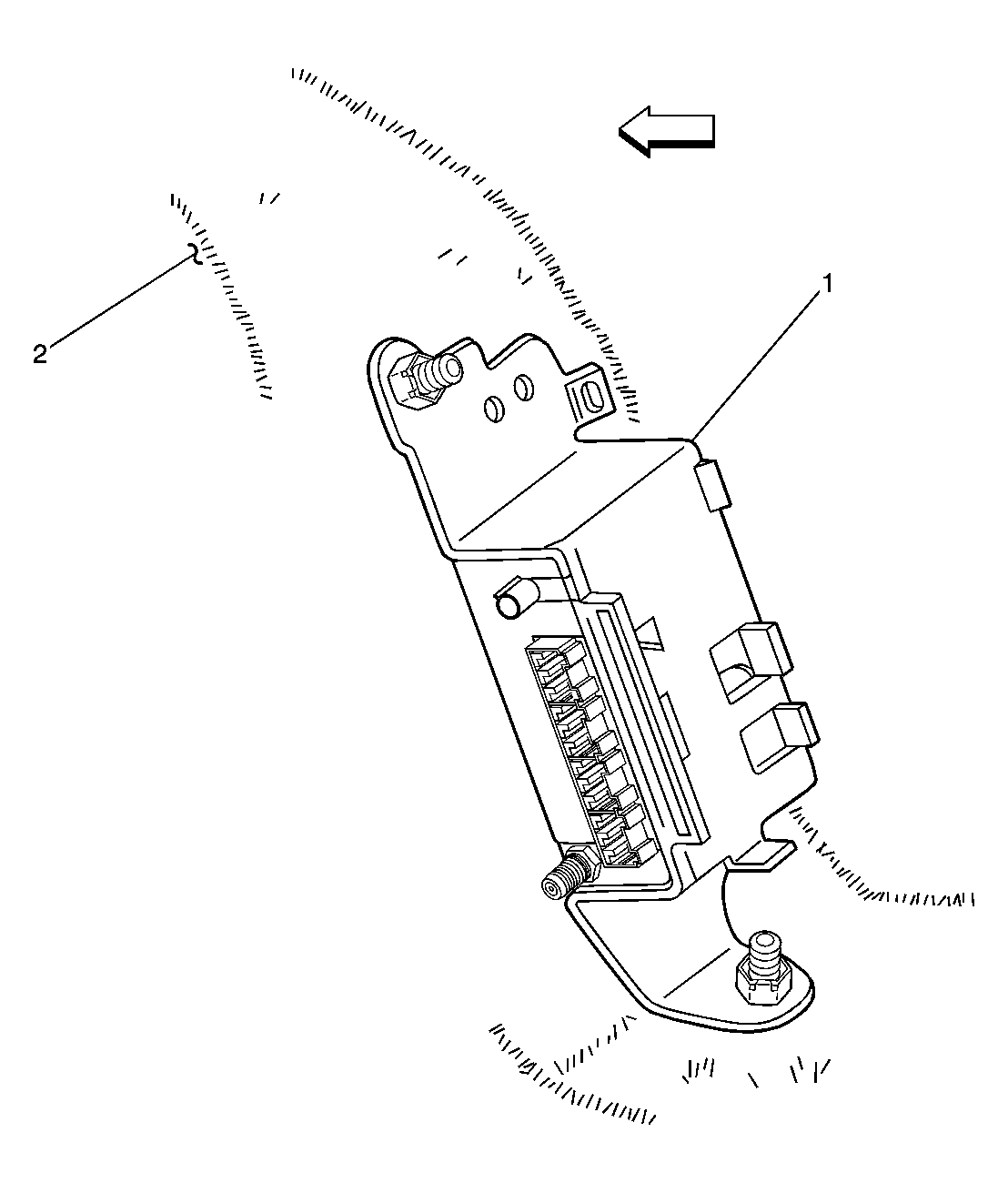

Fig 3: Vehicle Communication Interface Module (VCIM), Rear of Left Rear Wheelhouse
GM924921Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Communication Interface Module (VCIM)
2 Wheelhouse-LR
