2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Navigation System Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

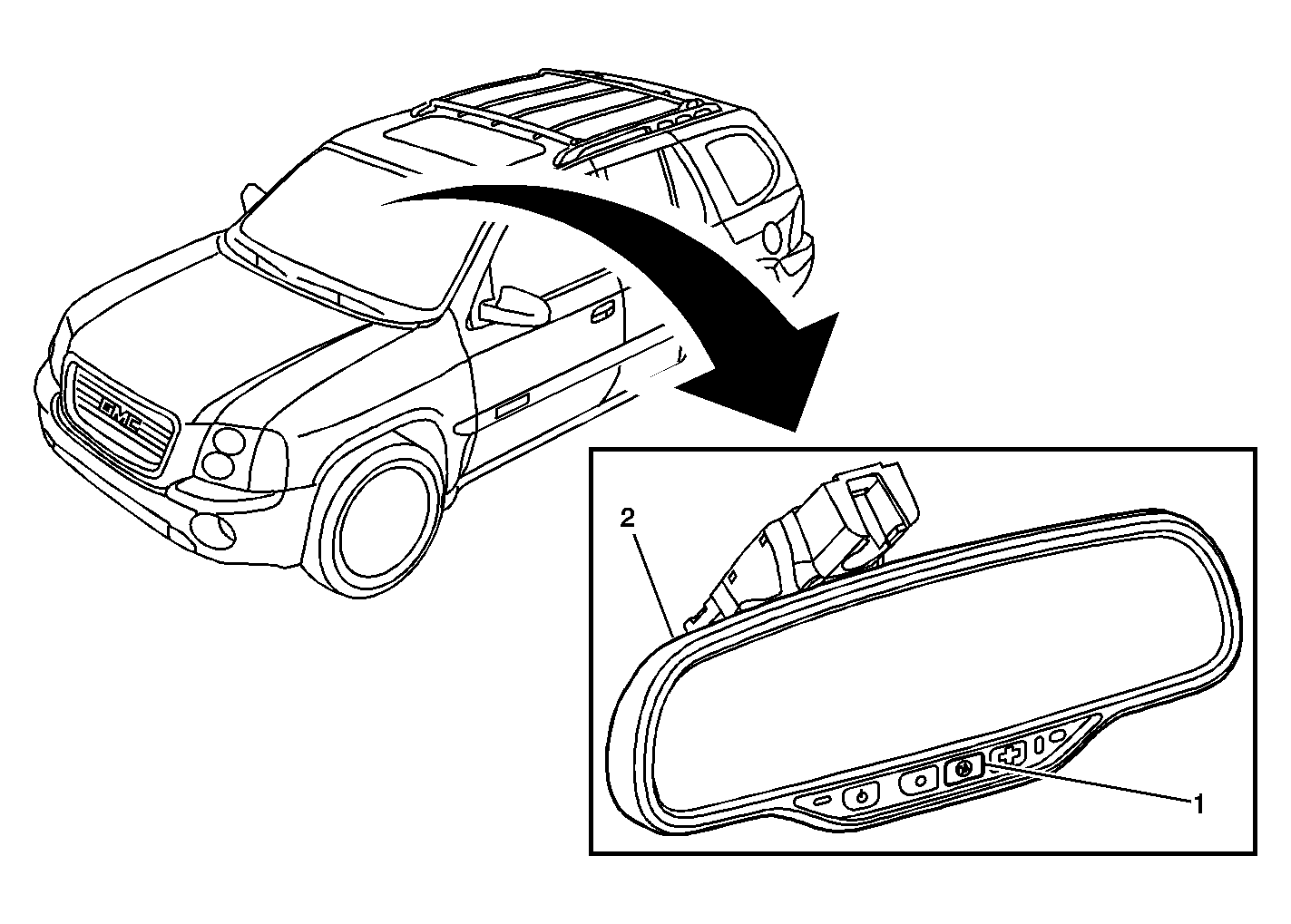

Fig 1: OnStar Keypad

GM799494

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	OnStar Keypad
2	Rearview Mirror

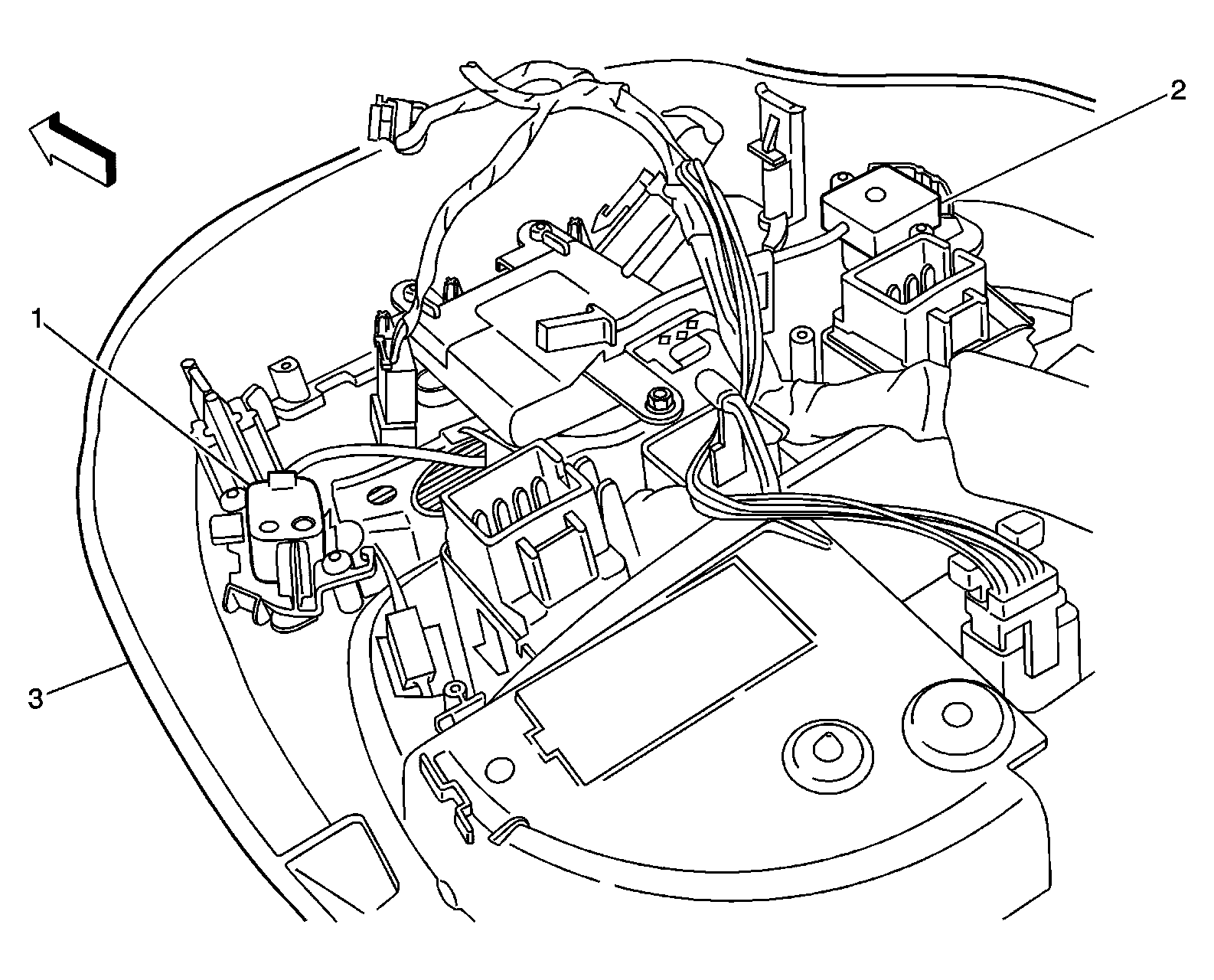

Fig 2: Overhead Console

GM906337

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone
2	Noise Reduction Microphone
3	Overhead Console

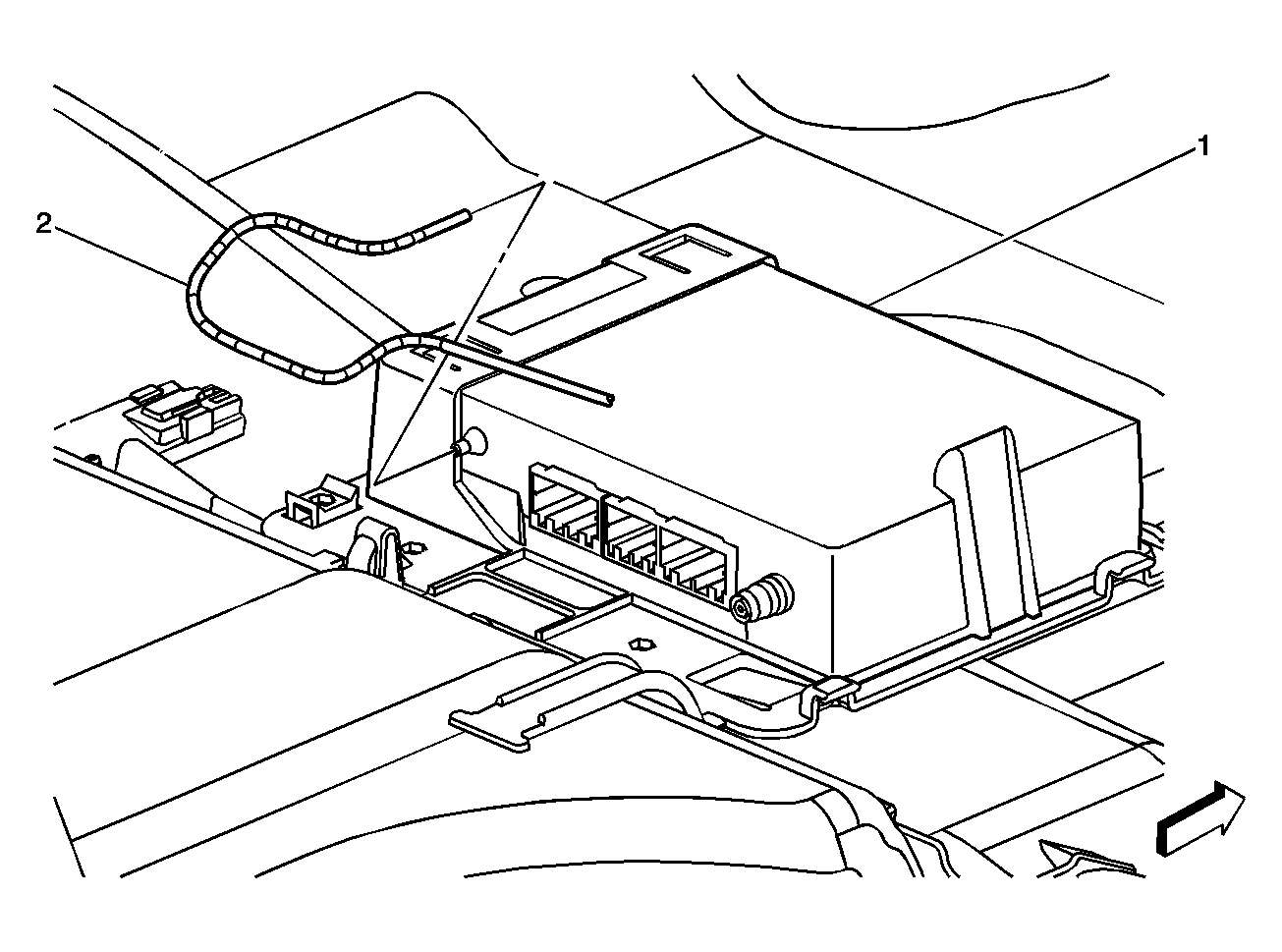

Fig 3: Global Positioning System Antenna Connection

GM799496

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)
2	Headliner Harness

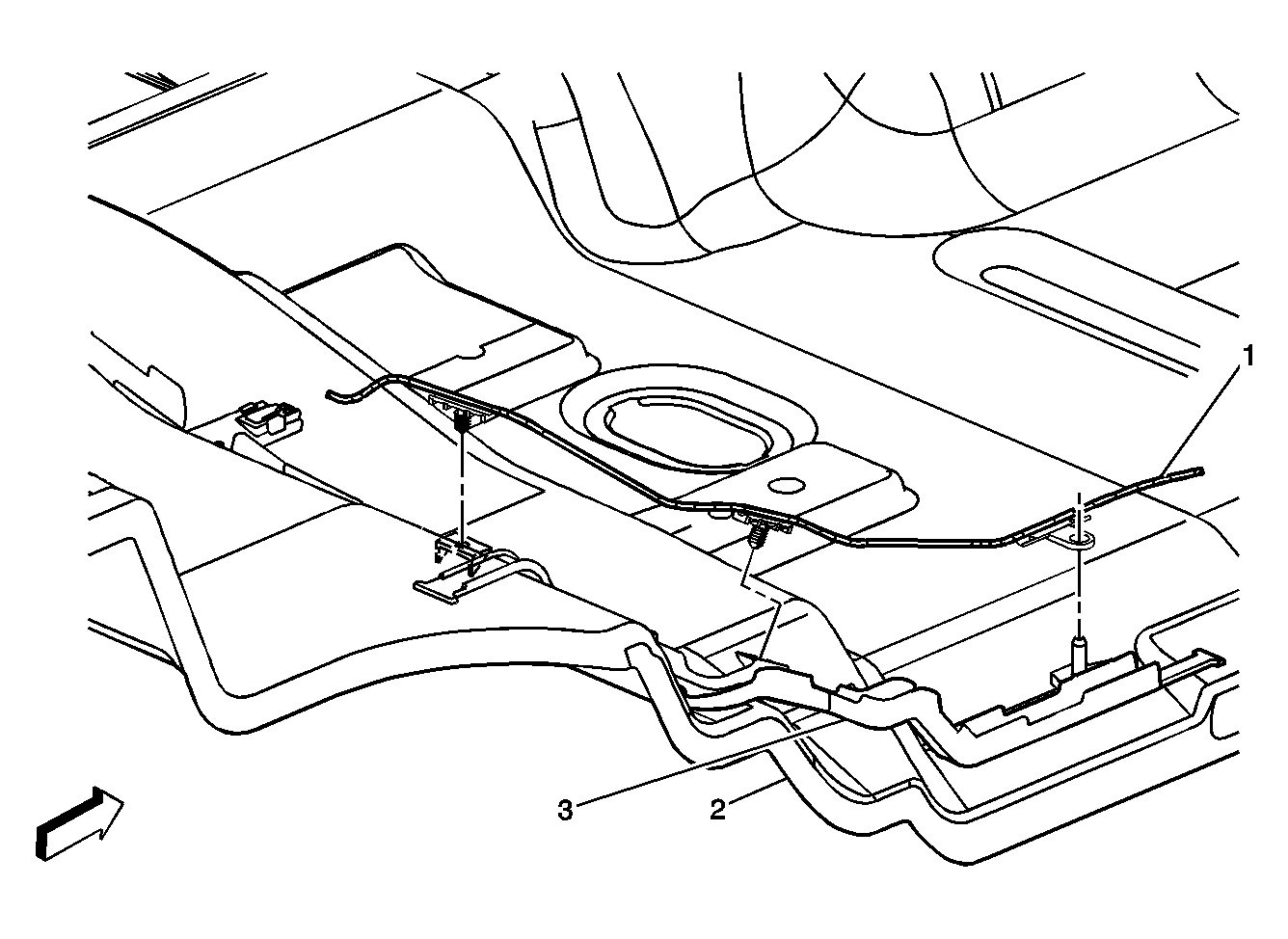

Fig 4: Component Views - Rear Floor

GM799498

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner Harness to GPS Antenna
2	Rear Floor
3	Body Harness Channel

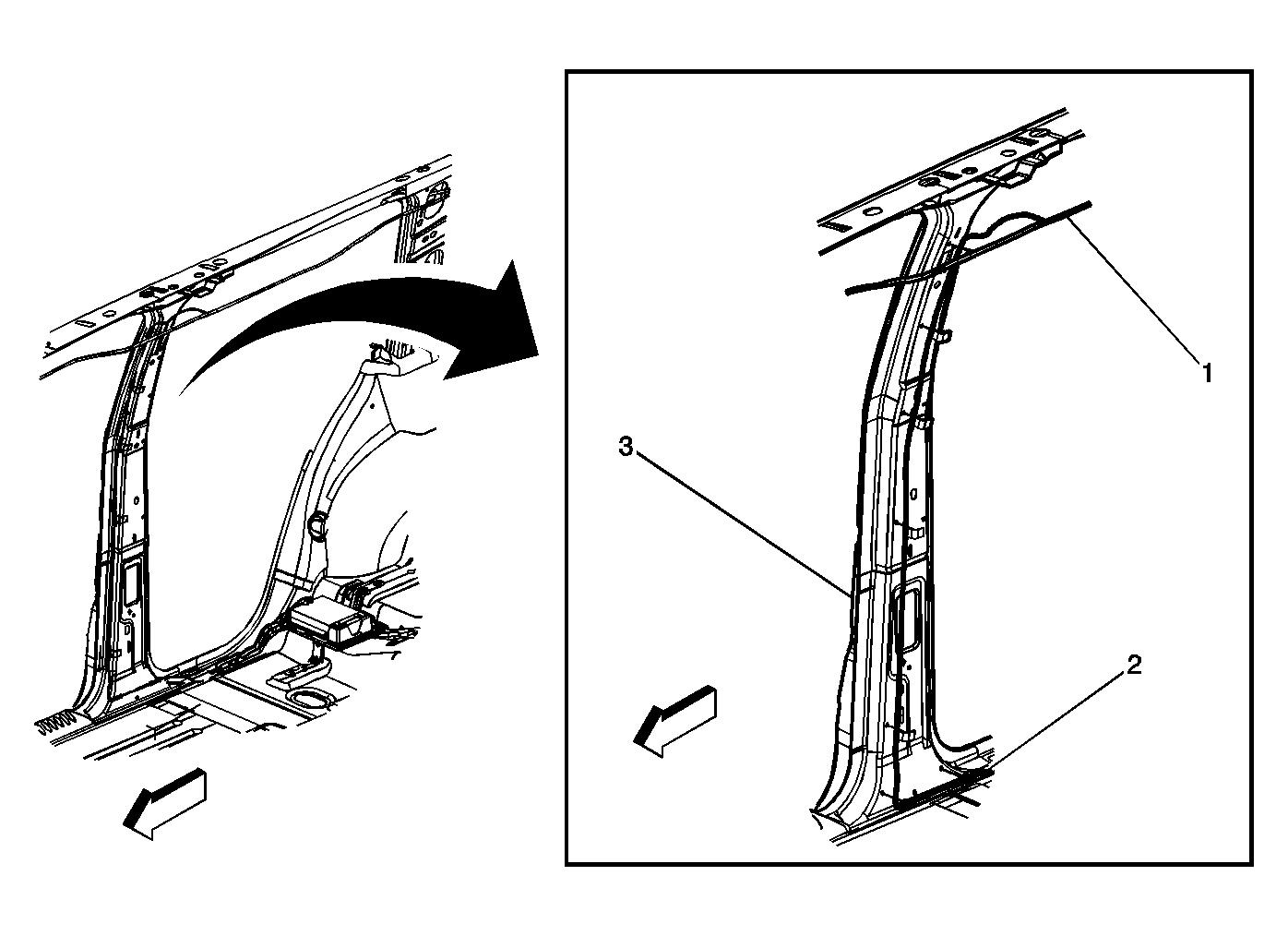

Fig 5: Component Views - Right B Pillar

GM799500

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner Harness to GPS Antenna
2	Headliner Harness, to Vehicle Communication Interface Module (VCIM)
3	Door Frame

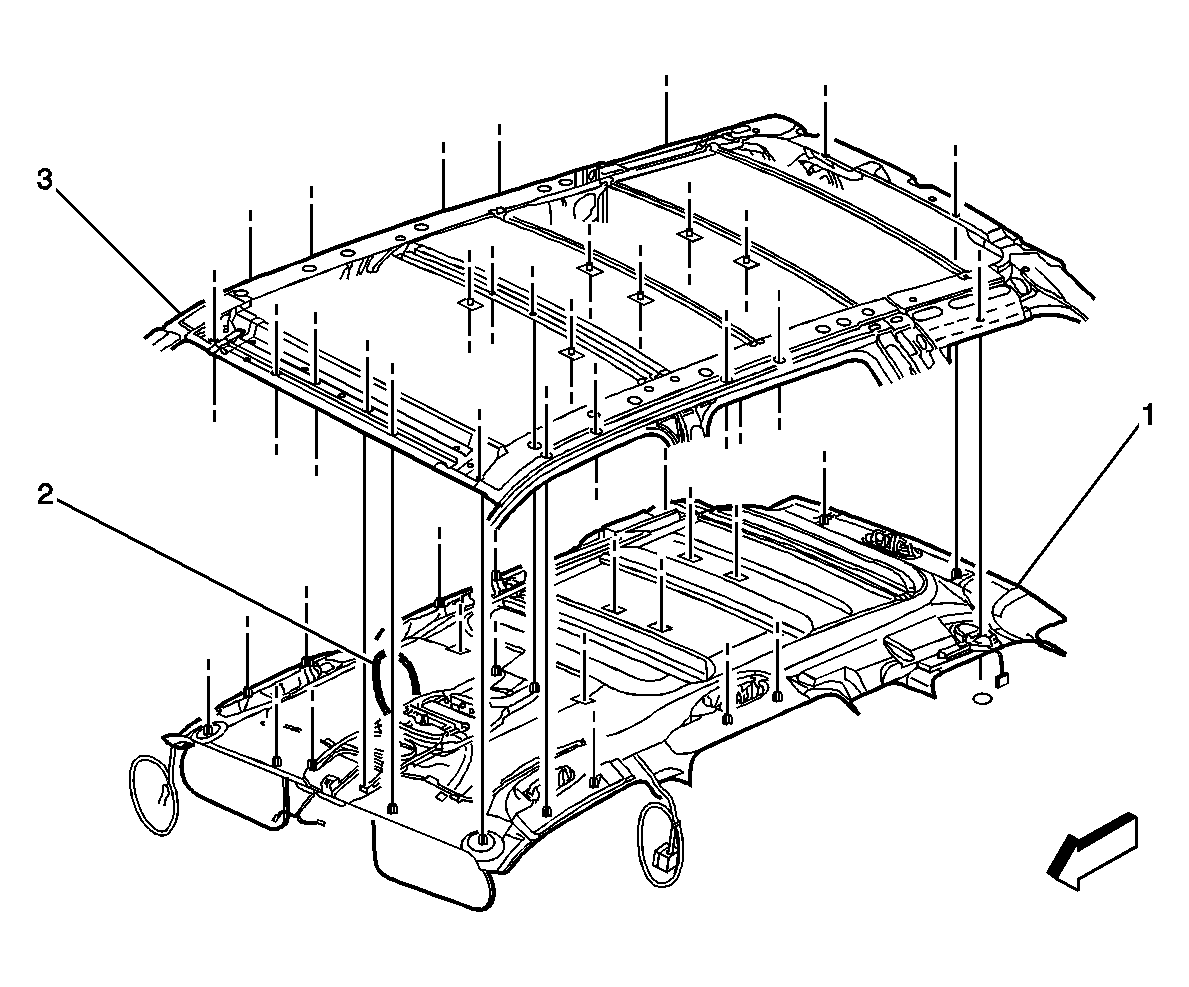

Fig 6: Component Views - Headliner

GM799512

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Antenna Harness, partial, to GPS Antenna
3	Roof Panel

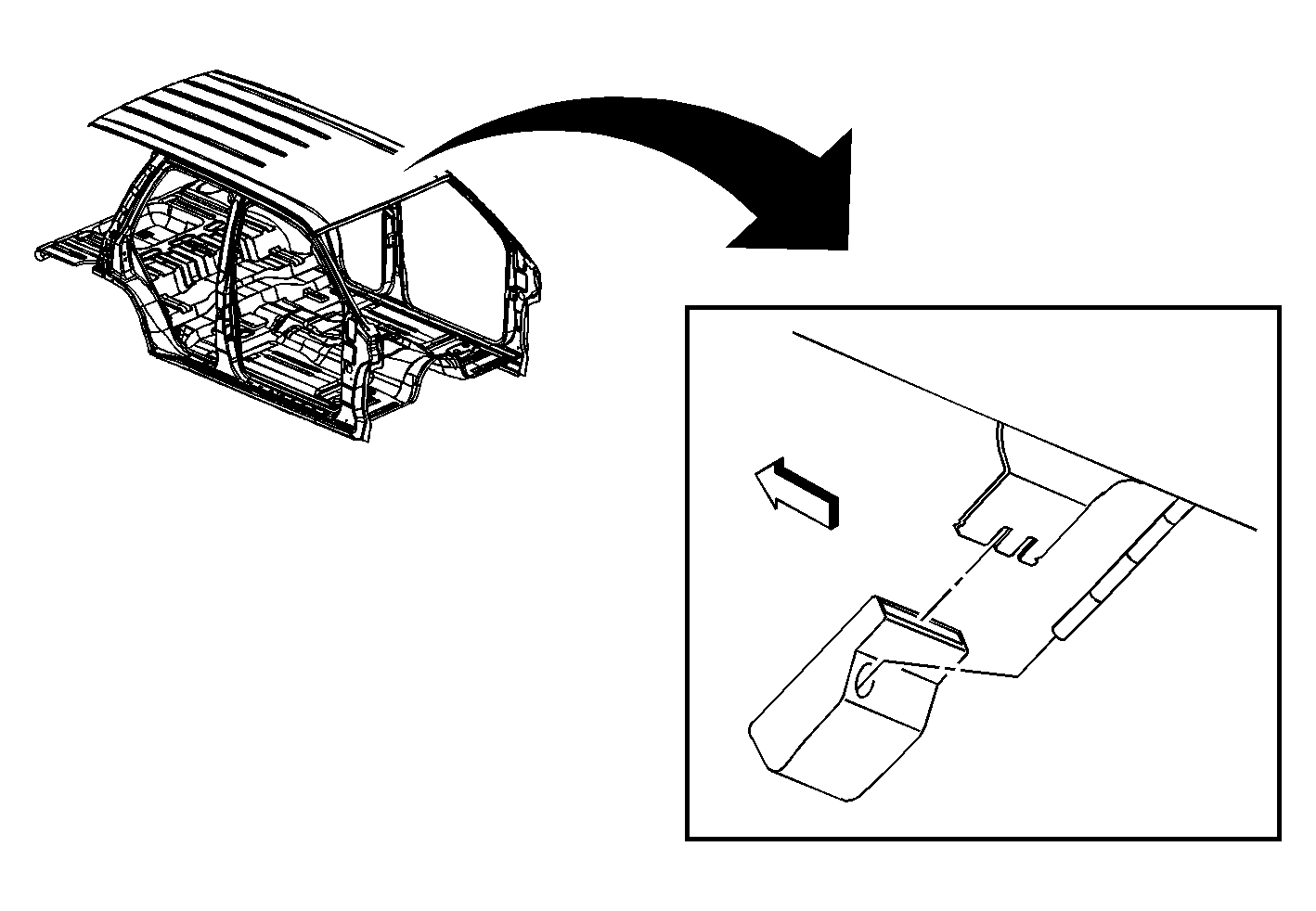

Fig 7: Global Positioning System (GPS) Antenna

GM799516

Courtesy of GENERAL MOTORS CORP.
