WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Overhead Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone
2	Noise Compensation Microphone (UQA w/Class 2 Amp)
3	Overhead Console

Fig 2: Antennas

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigation Antenna
2	Cellular Antenna
3	Navigation Antenna
4	Front Roof Panel

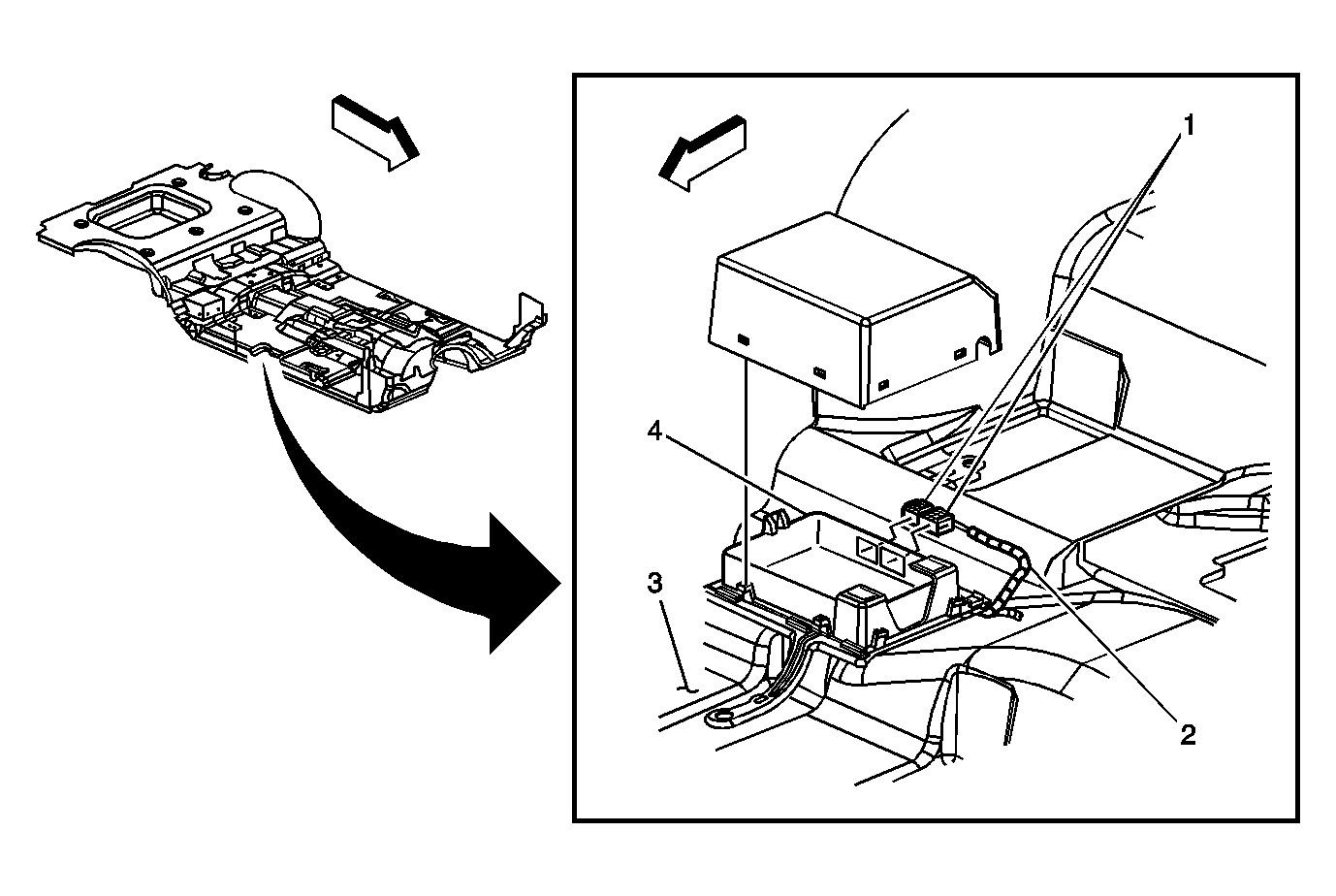

Fig 3: Vehicle Communication Interface Module (VCIM) - Short Wheelbase (SWB)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Connectors
2	Body Harness
3	Rear Floor Panel
4	Vehicle Communication Interface Module (VCIM)

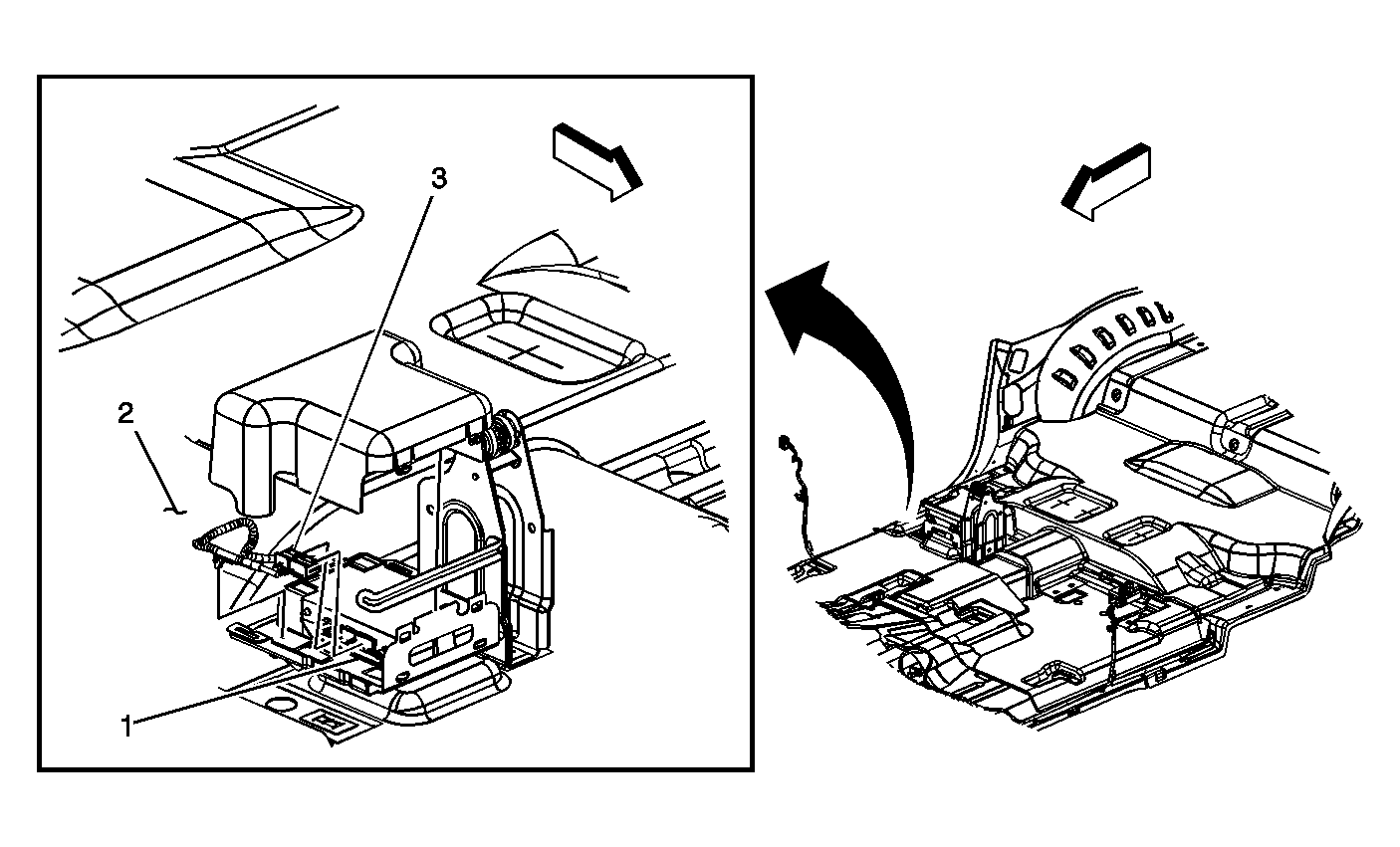

Fig 4: Vehicle Communication Interface Module (VCIM) - Long Wheelbase (LWB)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)
2	Rear Floor
3	Connectors
