2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE
Engine Electrical Component Views
| Callout | Component Name |
|---|---|
| 1 | Crankshaft Position (CKP) Sensor A Connector and Bracket |
| 2 | Knock Sensor (KS) Connector |
| 3 | Engine Oil Pressure (EOP) Switch Connector |
| 4 | Starter Solenoid |
| 5 | Starter Motor |
| 6 | Fusible Links (Starter) |
| 7 | A/C Compressor Clutch Diode |
| Callout | Component Name |
|---|---|
| 1 | Generator |
| 2 | Ignition Control Module (ICM) |
| 3 | Heated Oxygen Sensor (HO2S) 1 |
| 4 | Ignition Coils |

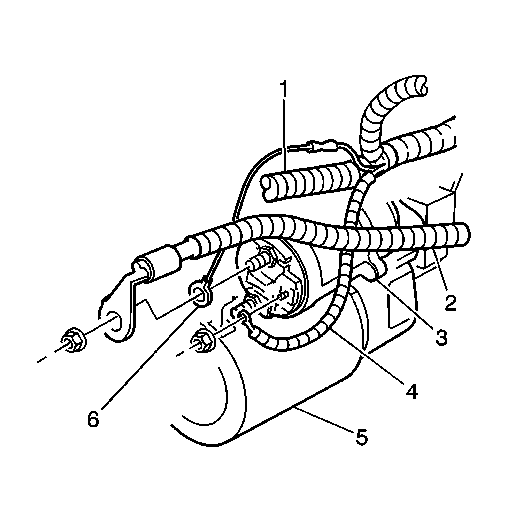

| Callout | Component Name |
|---|---|
| 1 | To A/C Compressor Clutch |
| 2 | Positive Battery Cable |
| 3 | Starter Solenoid |
| 4 | Starter Solenoid Ground |
| 5 | Starter |
| 6 | Battery Positive |
