2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Power Outlet Component Views

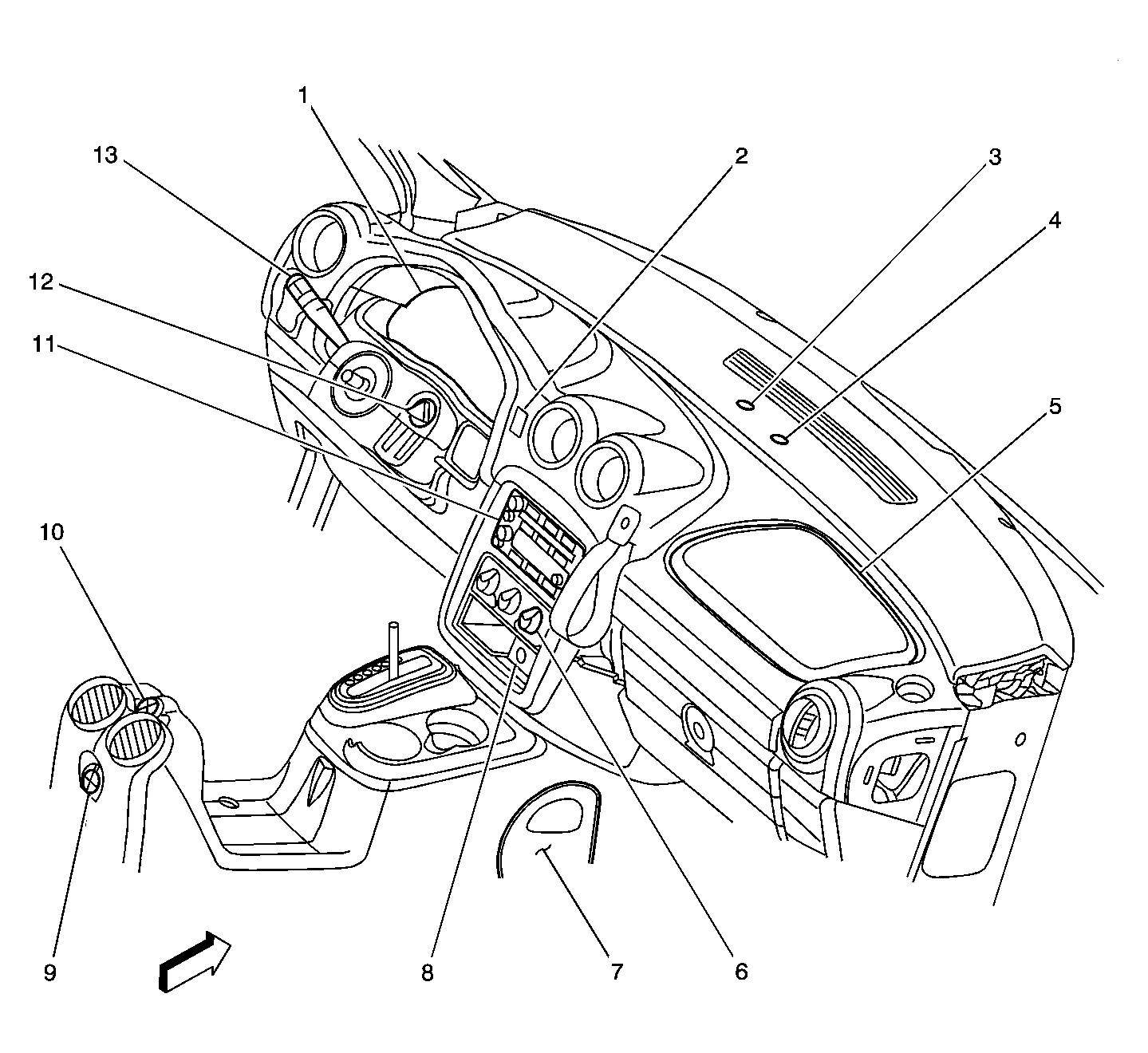

Fig 1: Instrument Panel & Center Console Location View - Pontiac
GM760711Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Cluster
2 Driver's Information/HUD Switches
3 A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
4 Security Indicator Lamp
5 Inflatable Restraint I/P Module
6 HVAC Control Module
7 Fuse Block-Center Console
8 Cigar Lighter
9 Auxiliary Power Outlet-Center Console Lower (2002 and earlier)
10 Auxiliary Power Outlet-Center Console Upper
11 Radio
12 Ignition Switch
13 Turn Signal, Wiper, Washer, Cruise and High Beam Switch
Fig 2: Cargo Area Location View - Left
GM772877Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tailgate Audio Controls
2 Subwoofer
3 Aux Outlet-Rear
4 Auto Level Control (ALC) Inflator Air Switch
