2004 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

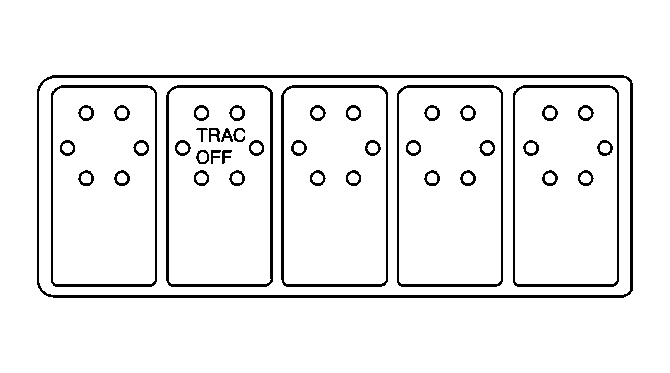

Fig 1: View Of Instrument Panel Accessory Trim Plate

Courtesy of GENERAL MOTORS CORP.

Remove the instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Aztek) in Instrument Panel, Gages and Console.

Fig 2: Removing/Installing Traction Control Switch Bolts/Screws

Courtesy of GENERAL MOTORS CORP.

Remove the bolts/screws from the switch bank to instrument panel.
Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

Fig 3: Identifying Traction Control Switch Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors.
