Installation Procedure

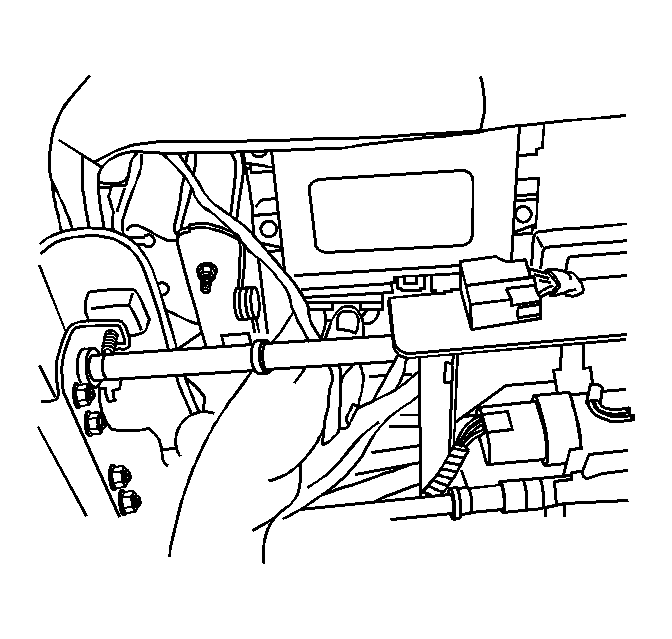

- Install the memory seat module to the seat frame.
- Press the module into the bracket until the module is firmly seated.
- Connect the electrical connector to the memory seat module.

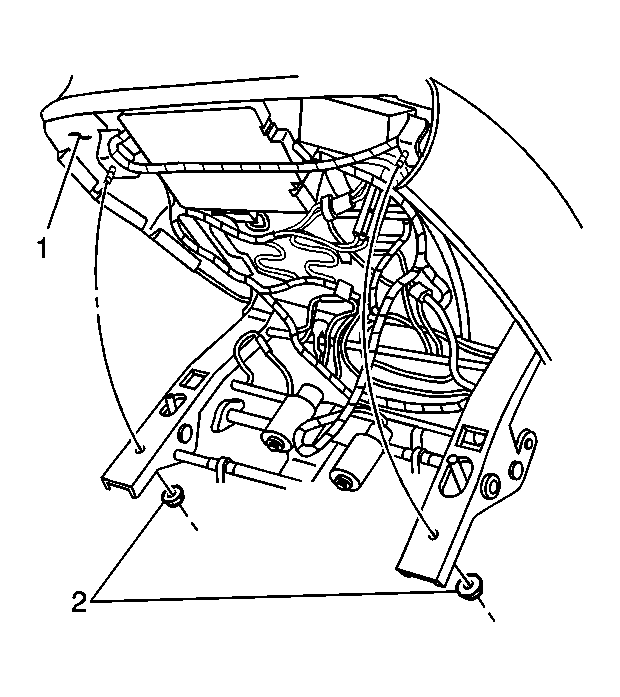

- Install the seat cushion assembly (1) to the seat riser.
- Install the fasteners (2) to the seat cushion assembly (1).

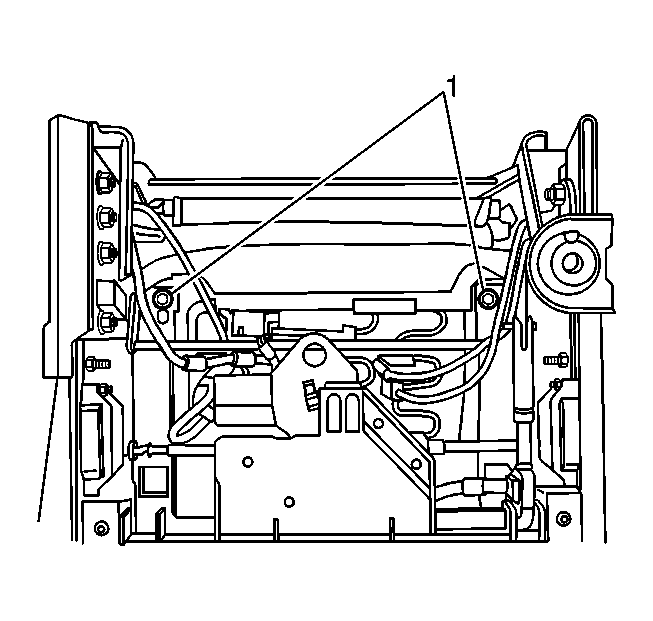

- Adjust the front seat assembly up and forward in order to access the fasteners (1).
- Install the fasteners (1) to the seat cushion assembly.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).
- Angle the front seat cushion up, in order to access the assembly fasteners.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).
- Enable the SIR. Refer to SIR Disabling and Enabling Zone 7 in SIR.
- Calibrate the seat. Refer to Memory Seat Calibration Procedure .
