2003 Pontiac Sunfire AutomaticFACTORY OEM SERVICE PROCEDURE
Installation Procedure

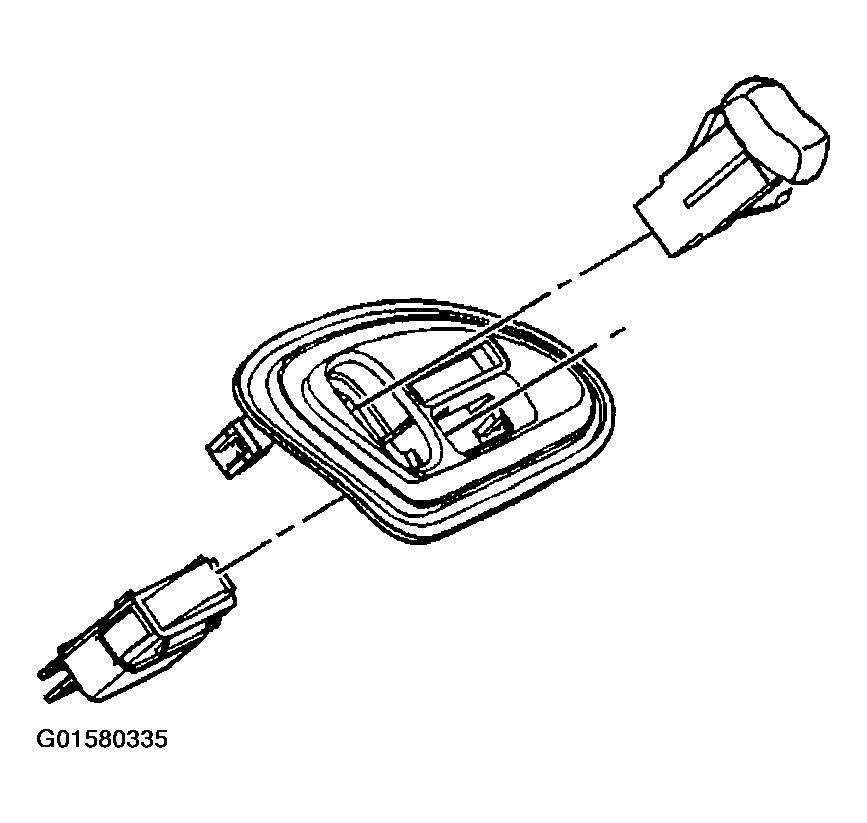

- Install the traction control switch to the instrument panel dimmer switch bezel.
- Connect the electrical connector to the traction control switch.
- Align the instrument panel dimmer switch bezel to the dash and carefully press the retaining clips into the correct mounting areas on the dash.
- Verify the repair. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .
