2003 Pontiac Sunfire AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

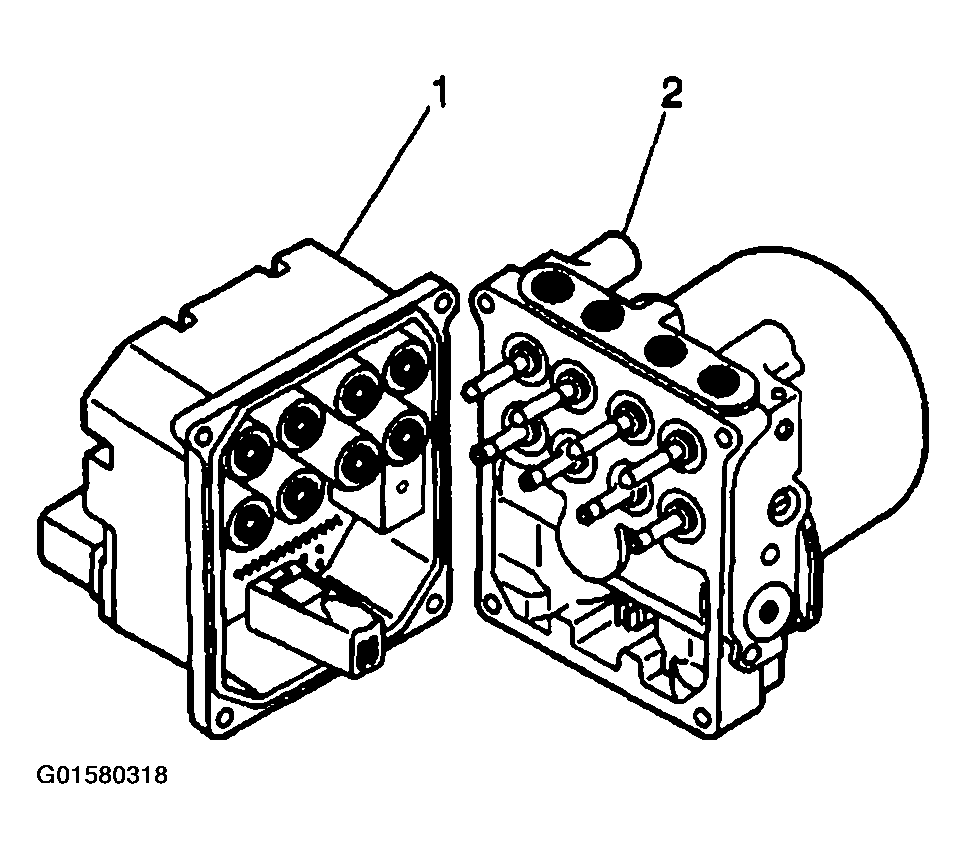

Fig 1: Installing EBCM To BPMV

Courtesy of GENERAL MOTORS CORP.

Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
Install the EBCM (1) to the BPMV (2).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the four screws that attach the EBCM (1) to BPMV (2).
Tighten

Tighten the four screws to 5 N.m (44 lb in).
Connect the EBCM harness connector (4).

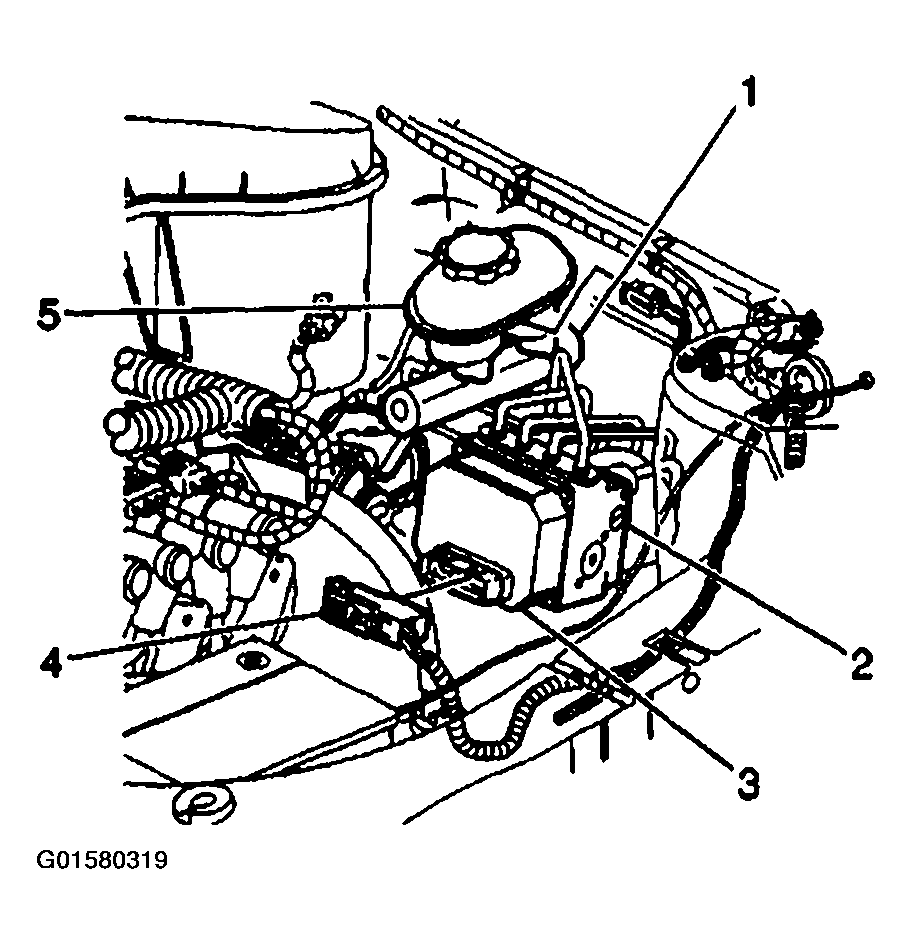

Fig 2: Connecting Electronic Brake Control Module Harness Connector
Courtesy of GENERAL MOTORS CORP.
Push down the harness connector lock tab and then move the sliding connector cover back in the home position to lock.
Push the CPA (2) back into place.

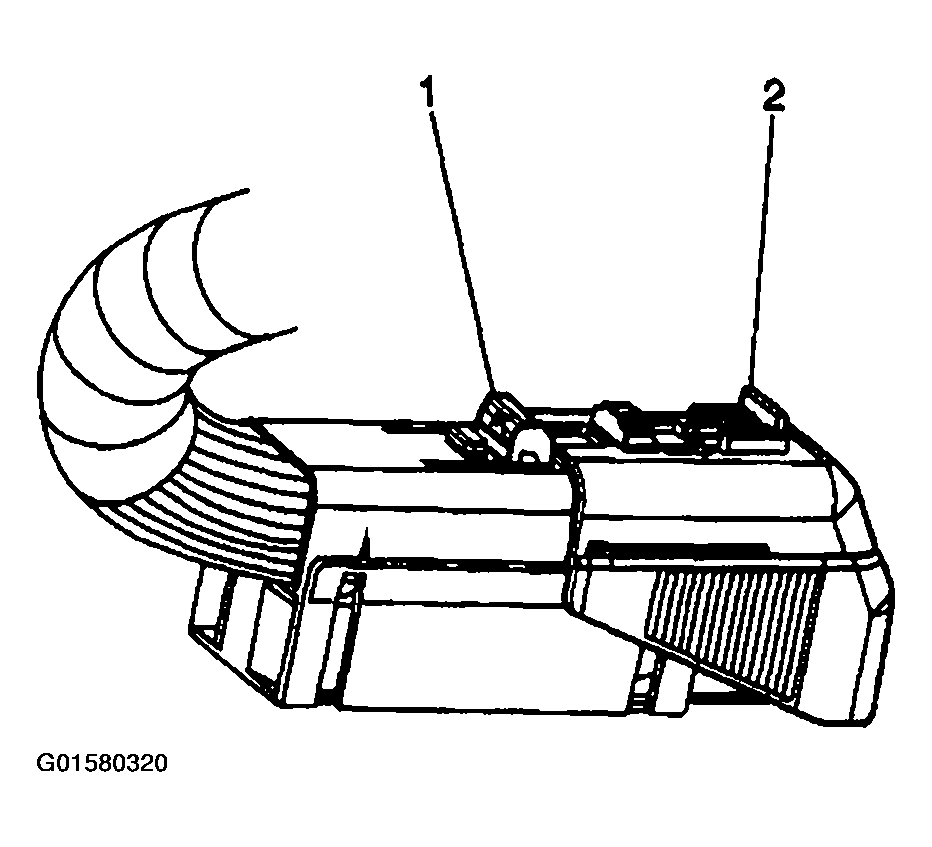

Fig 3: Installing Connector Position Assurance To Connector Lock Tab
Courtesy of GENERAL MOTORS CORP.
Perform the Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS in ABS.
