2003 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Install the O-ring to the speed sensor, if removed.
Install the speed sensor (1) to the transfer case.

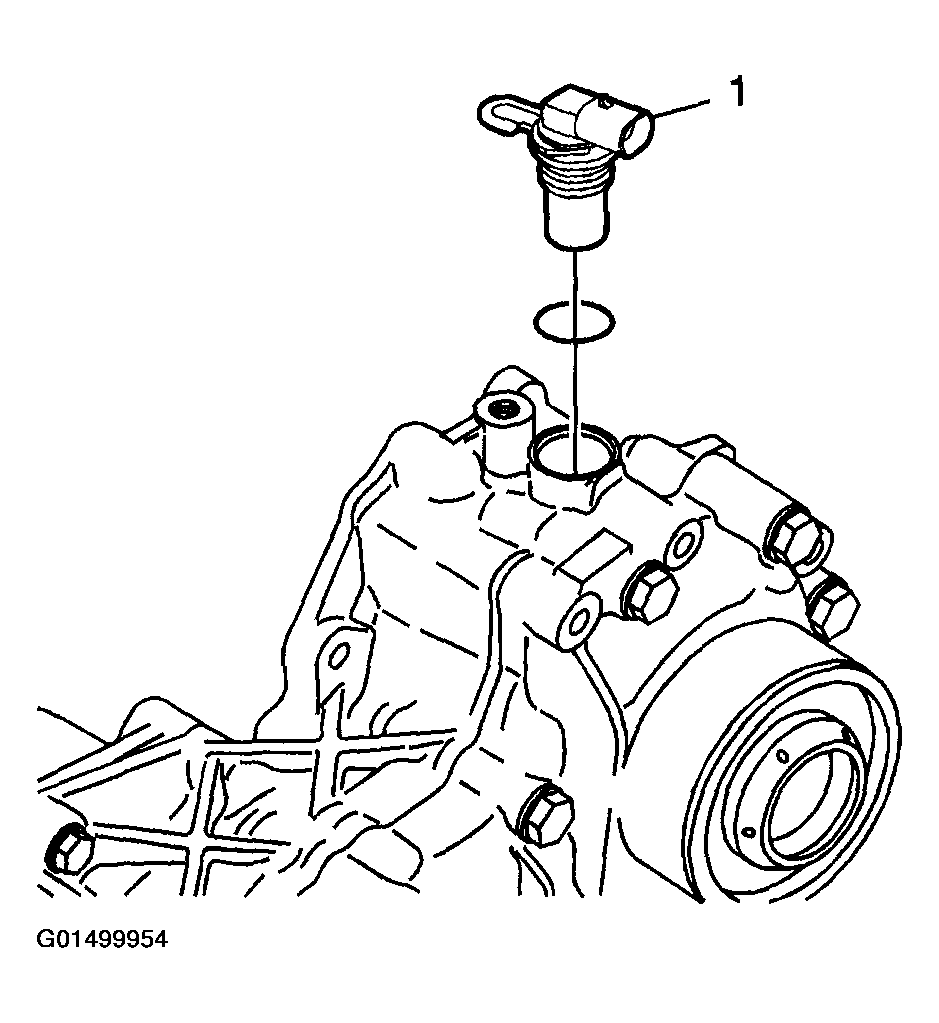

Fig 1: Installing Speed Sensor To Transfer Case
Courtesy of GENERAL MOTORS CORP.
Position the pinion housing vent hose (2) and mounting bracket to the speed sensor bolt boss.

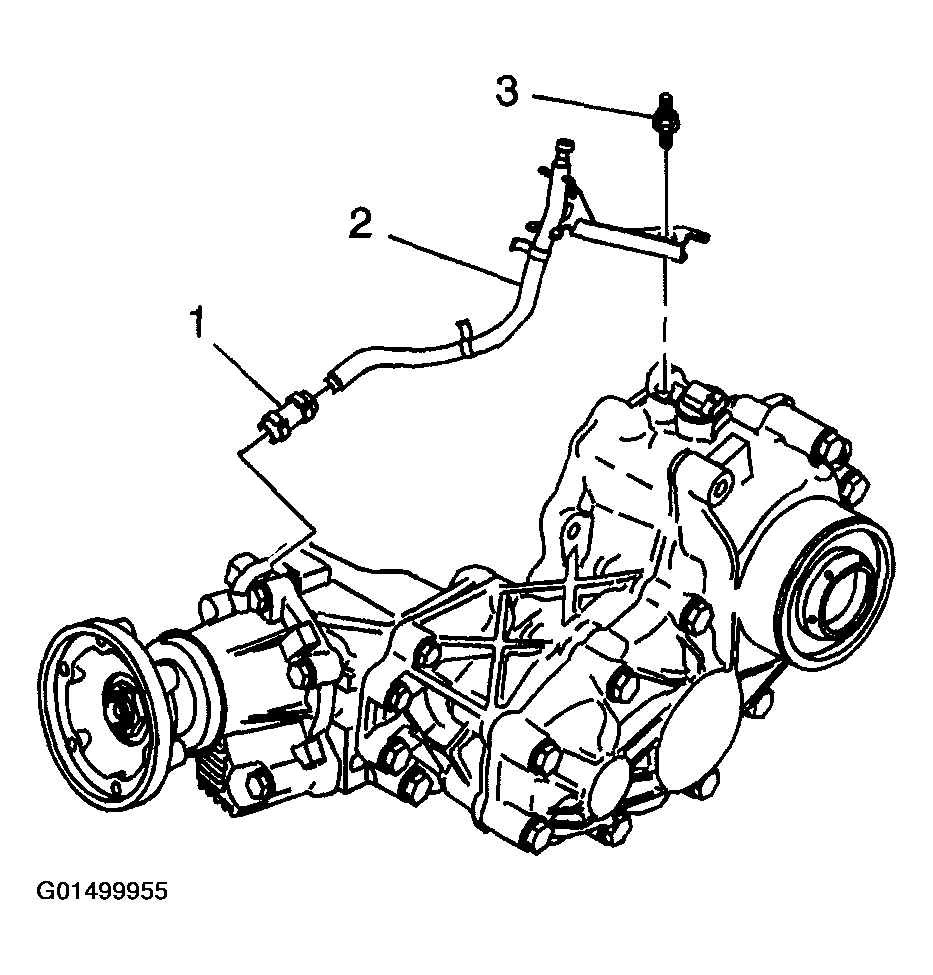

Fig 2: Pinion Housing Vent Hose & Mounting Bracket To Speed Sensor Bolt Boss
Courtesy of GENERAL MOTORS CORP.
Install the speed sensor bolt (3) to the transfer case.
Tighten

Tighten the bolt to 30 N.m (22 lb ft).
Connect the electrical connector to the speed sensor.
Lower the vehicle.
