2003 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
NOTE:
Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
- Turn the ignition switch to the OFF position.
- Remove the air cleaner housing from the engine compartment.

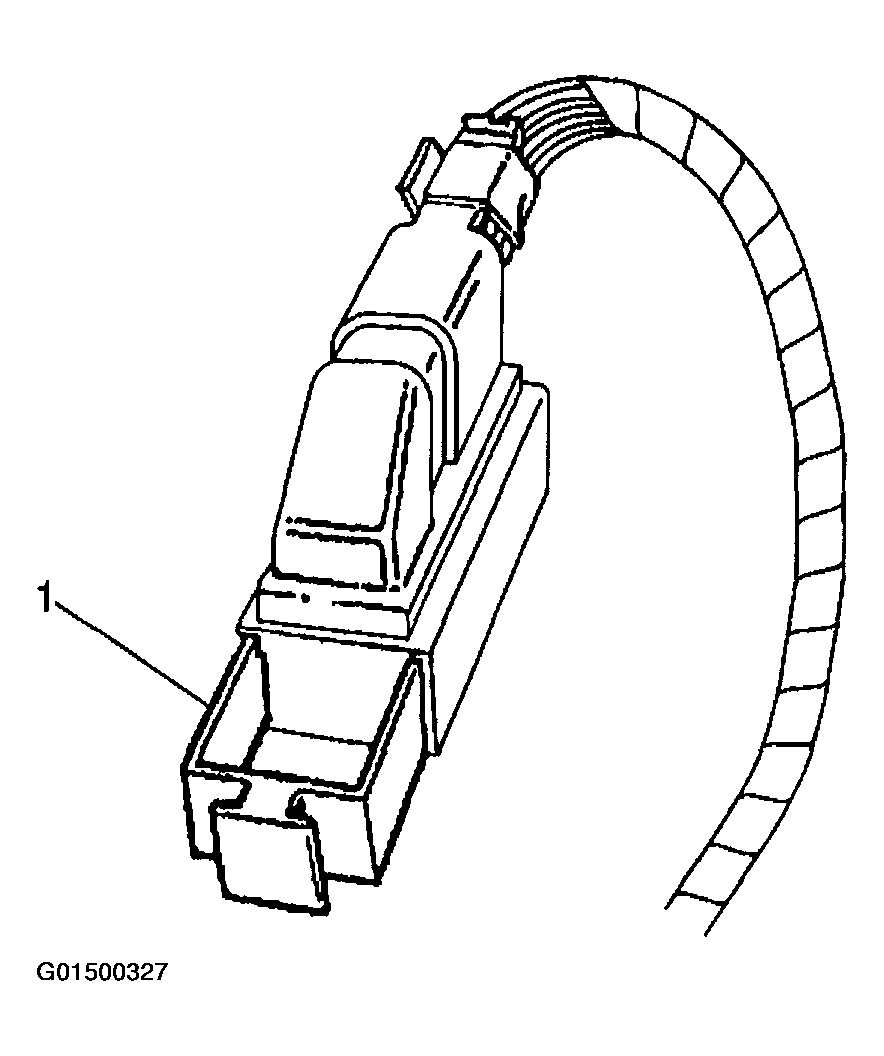

- Disconnect the EBCM harness connector.
- Brush off any dirt/debris that has accumulated on the assembly.
- Disconnect the pump motor connector (3) at the bottom of the EBCM.
Important:
- Do not damage the seal by prying the EBCM from the BPMV.

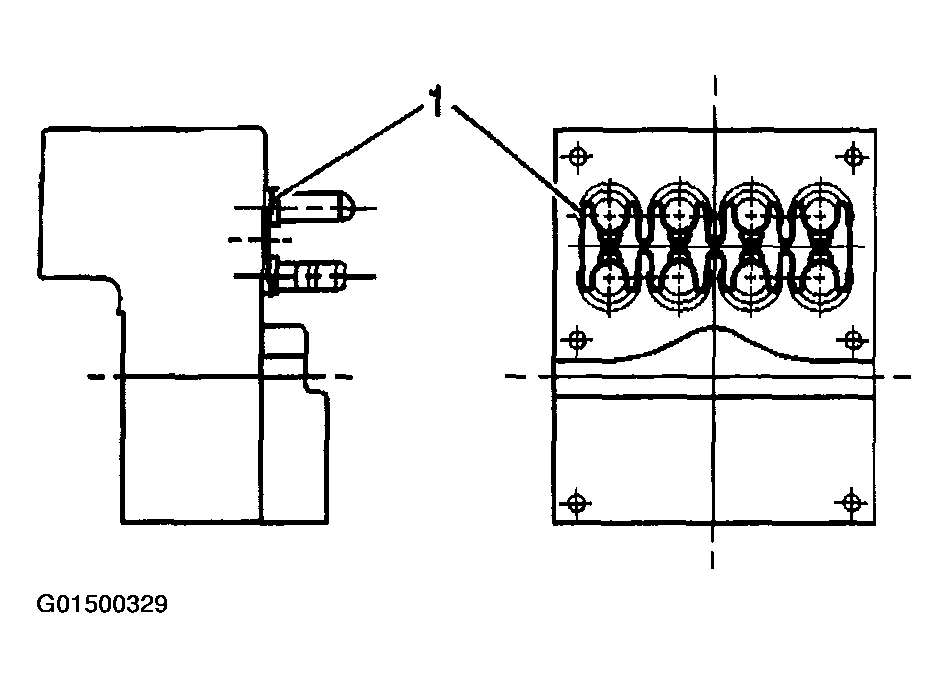

- Do not damage the solenoid valves while removing the EBCM from the BPMV.

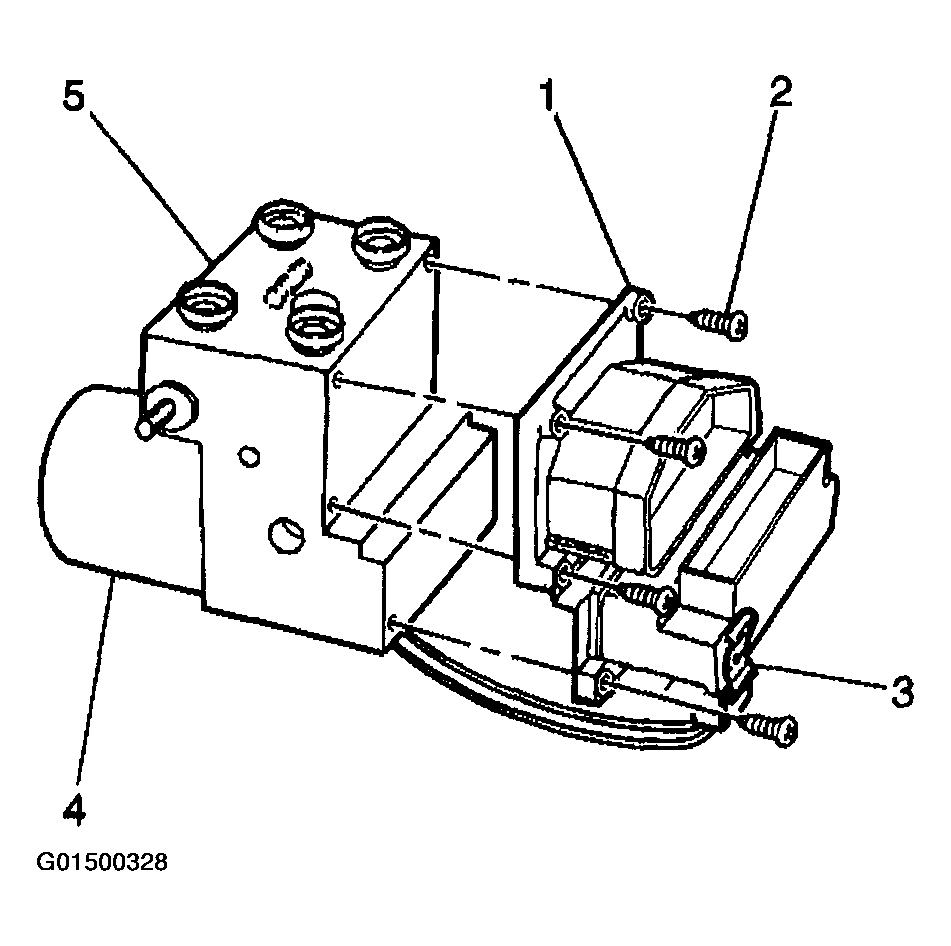

- Remove the six EBCM to BPMV screws (2).
- Separate the EBCM from the BPMV by gently pulling apart until separated (1).
