Shift Control Cable

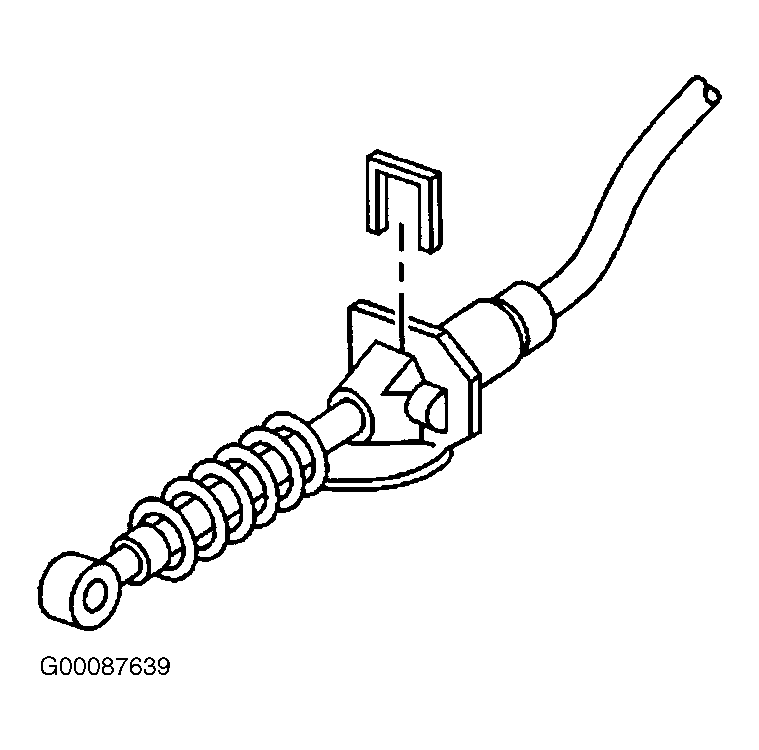

Position the transmission shift control lever into Park. Apply the park brake. Raise and support the vehicle. Position the transmission range selector lever to Park. Rotate the range select lever clockwise until it reaches the full mechanical stop position. Snap the transmission shift cable into the bracket with the cable adjustment button up. Snap the shift cable onto the range selector lever pin. Press cable adjustment button down. Insert the retainer to the shift cable. See Fig 1 . Remove the safety stands. Lower the vehicle.
