2002 Pontiac Firebird Formula, AutomaticFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location | ||||
|---|---|---|---|---|---|
| Underhood Fuse Block (Bottom) | In Left Front Corner Of Engine Compartment | ||||
| Powertrain Control Module (PCM) (V6 VIN K) | On Right Side Of Engine Compartment, Rear Of Wheelhouse | ||||
| Powertrain Control Module (PCM) (V8 VIN G) | On Right Side Of Engine Compartment, Rear Of Wheelhouse | ||||
| Starter (V6 VIN K) (1) | On Bottom Left Side Of Engine | ||||
| Starter (V8 VIN G) (2) | On Bottom Right Side Of Engine | ||||
| Starter Relay | In Underhood Fuse Block (Bottom) | ||||

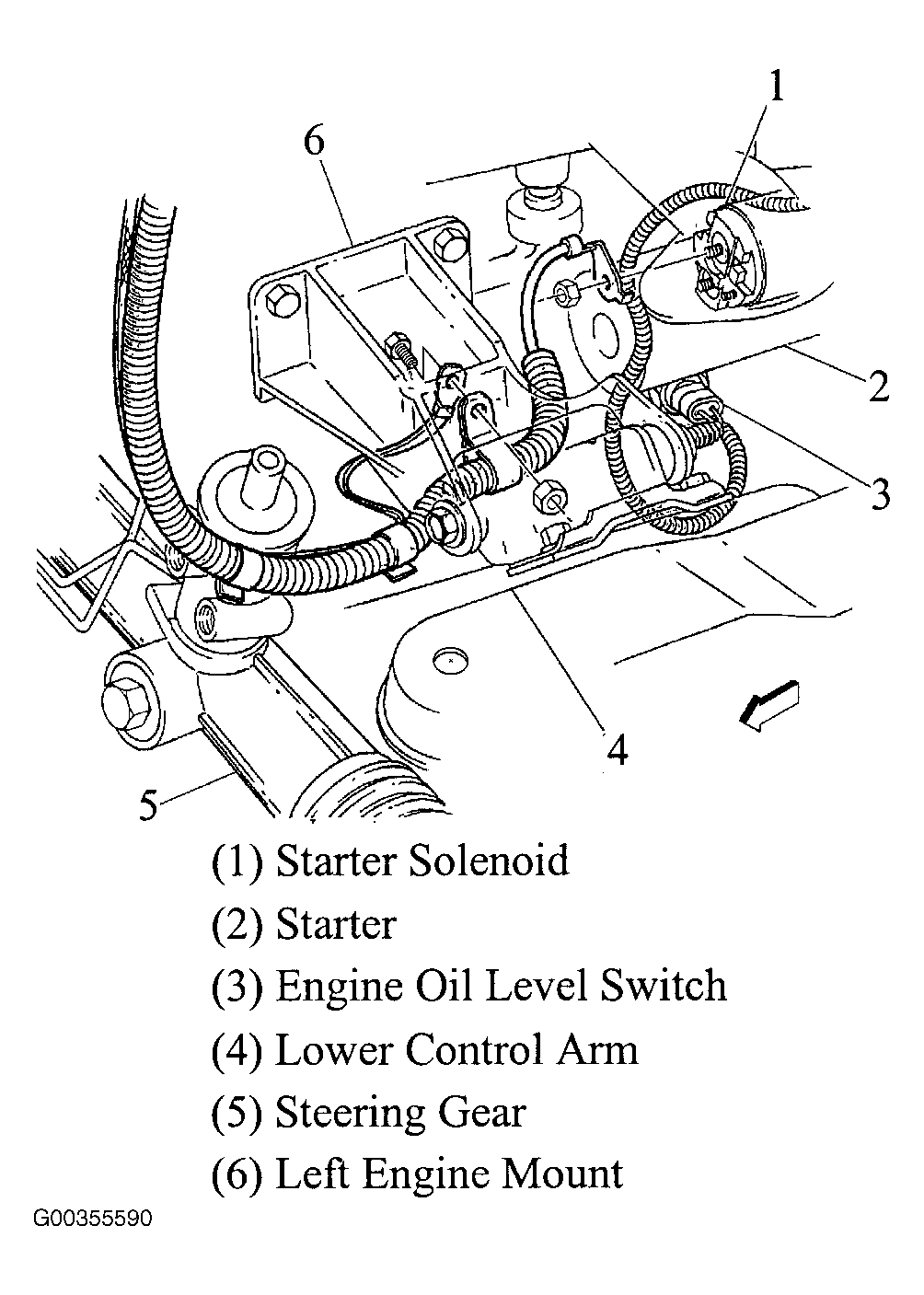

| Starter Solenoid (V6 VIN K) (1) | On Bottom Left Side Of Engine, Above Starter Motor | ||||
| Starter Solenoid (V8 VIN G) (2) | On Bottom Right Side Of Engine, Above Starter Motor | ||||
|
|||||
