2002 Pontiac Firebird Formula, AutomaticFACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Clutch Diode (3.8L VIN K) | In engine harness, near breakout to fuel injector No. 2. |
| A/C Clutch Diode (5.7L VIN G) | In A/C compressor clutch wiring harness. |
| A/T Shift Lock Control Solenoid Diode | Taped to instrument panel harness, near BCM breakout. |
| Audio Amplifier | Behind rear quarter inner trim panel. |
| Blower Resistor | In HVAC module. |
| Data Link Connector (DLC) | Under dash, to right of steering column. See Figure. |
| Horn | Below right headlight. |

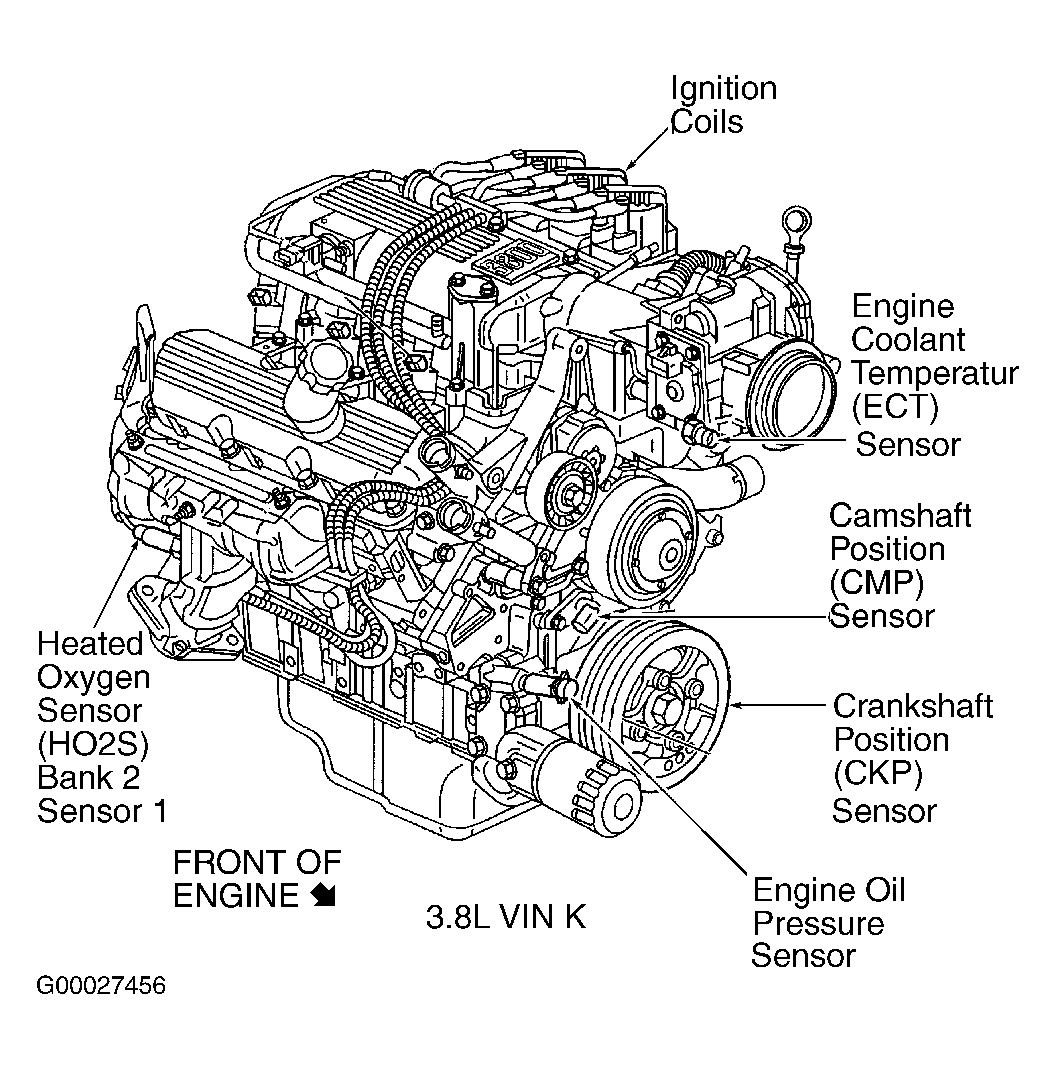

| Ignition Coils (3.8L VIN K) | On top left side of engine. See Figure. |

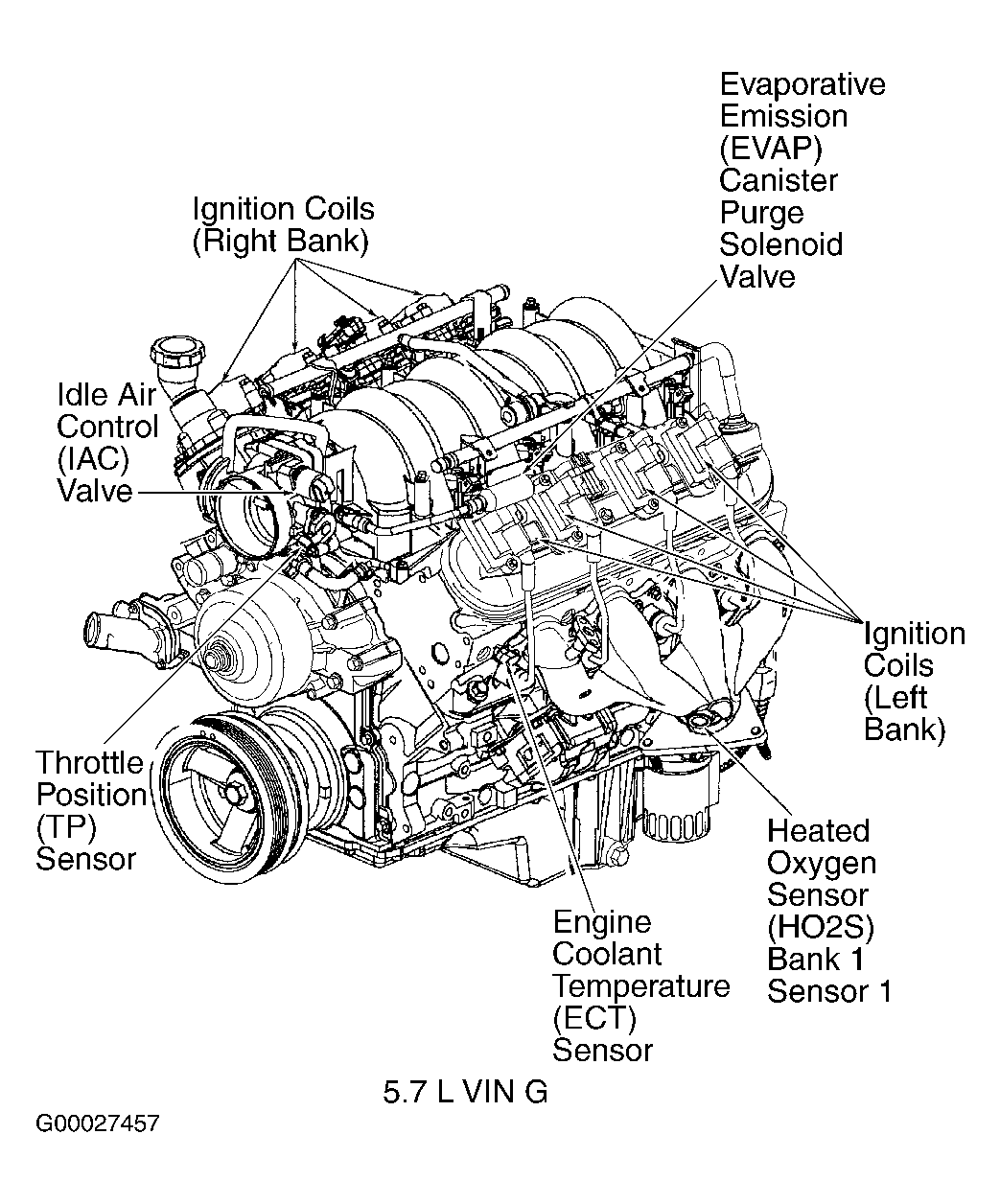

| Ignition Coils (5.7L VIN G) | On valve cover, on top of each cylinder. See Figure. |
| Windshield Wiper Isolation Diode | In forward lamp harness, near base of steering column. |
