2002 Pontiac Firebird Formula, AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the drivers side closeout insulator (1). Refer to LOCK ACTUATOR REPLACEMENT - Door .

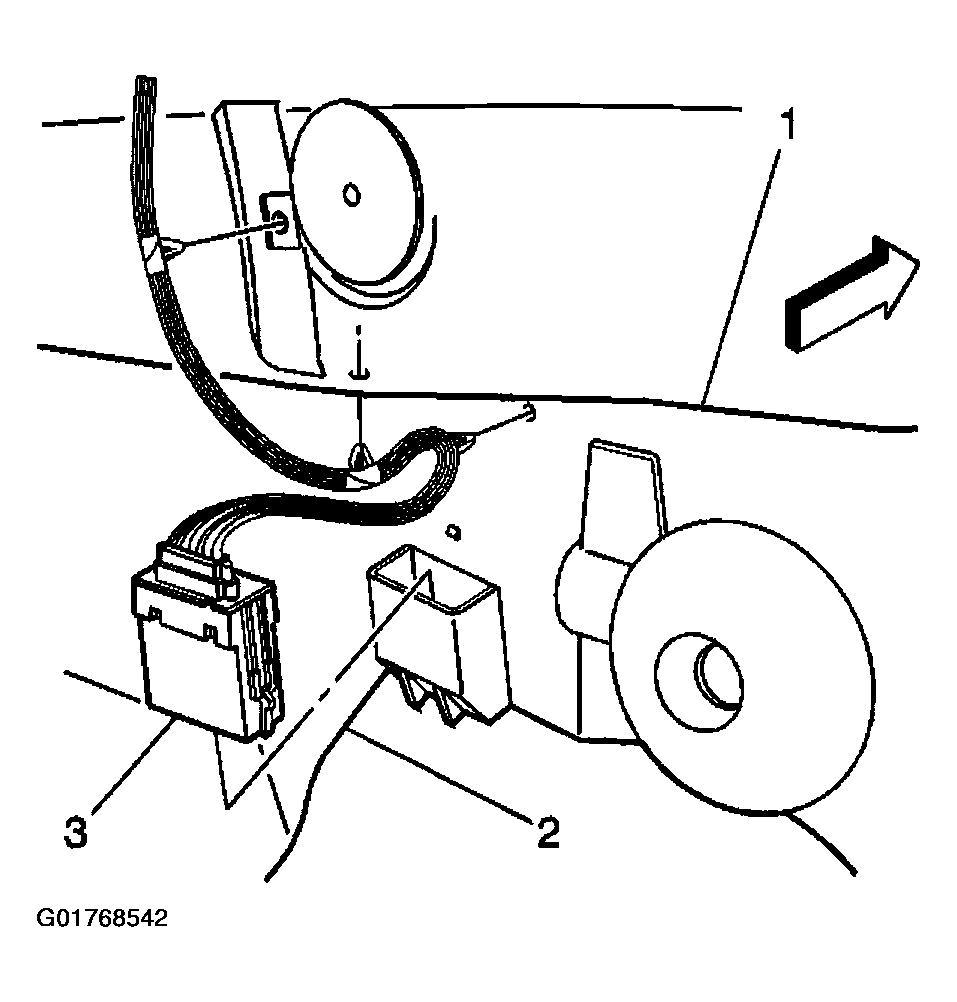

Important: The location of the molded pocket for the power window control module (3) is above the floor tunnel (2), on the dash mat (1) underneath the instrument panel.
- Remove the wire harness from the dash mat (1) above the floor tunnel (2) by gently prying on the rosebud clips.
- Remove the power window control module (3) from the molded pocket in the dash mat (1).
- Disconnect the wire harness from the power window control module and remove from the vehicle.
