2002 Pontiac Aztek FWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

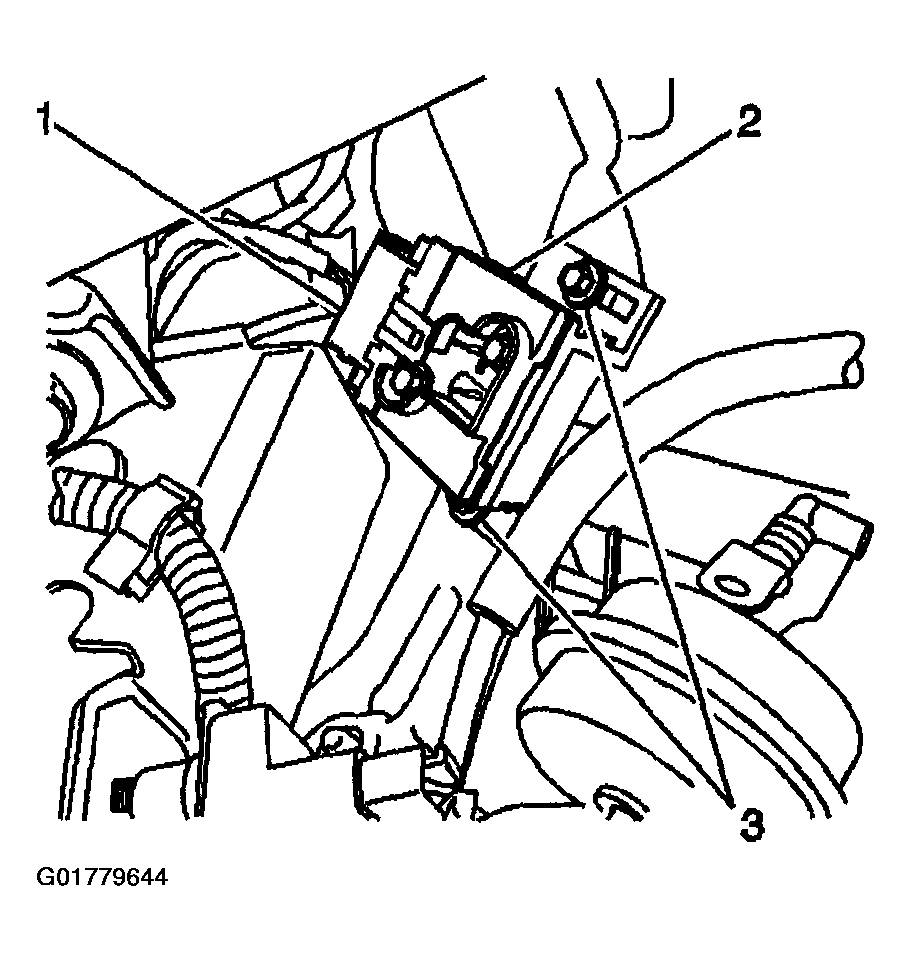

- Connect the electrical connector (1) to the I/P dimmer module (2).
- Install the I/P dimmer module (2) to the HVAC bracket.CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the I/P dimmer module bolts (3).
Tighten
Tighten the bolts to 4 N.m (36 lb in).
- Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
