Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Under normal use, the battery in the transmitter will last about 2 years. For battery replacement, use a Panasonic® 3 volt, type CR2032, or equivalent.

  1. Open the transmitter case and perform the following steps:
    1. 1.1. Insert a dime between the 2 halves of the transmitter near the key ring hole.
    2. 1.2. Twist the dime.

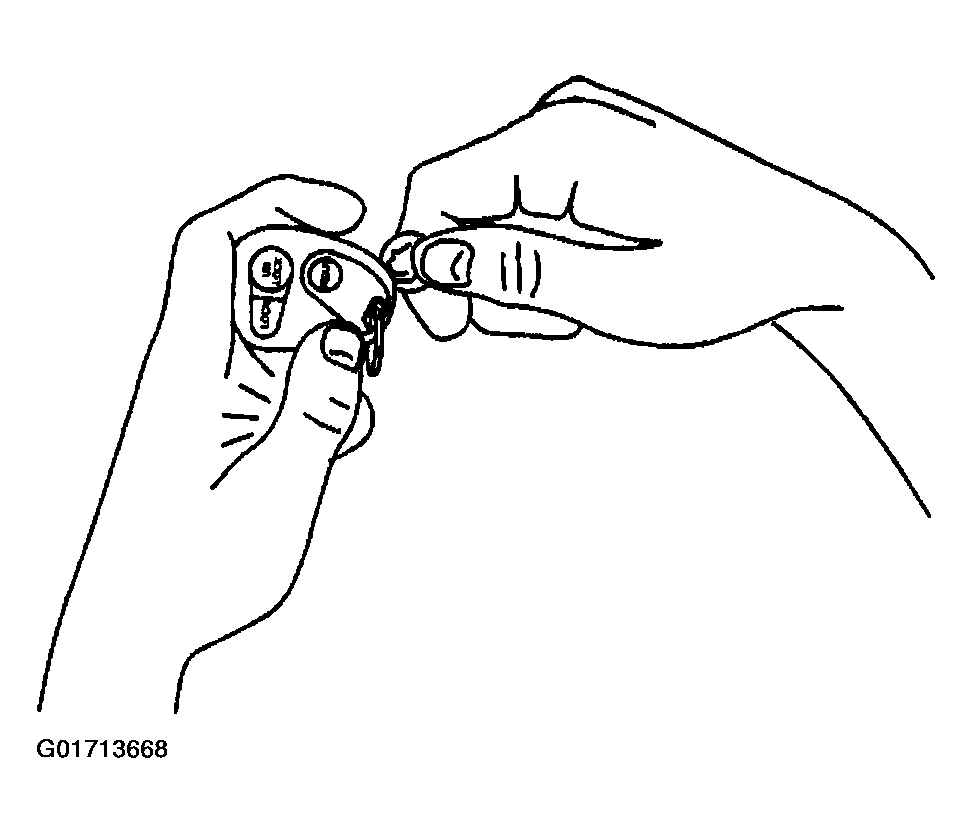

    Fig 1: Opening Transmitter Case
    G01713668Courtesy of GENERAL MOTORS CORP.
  2. Remove the battery.

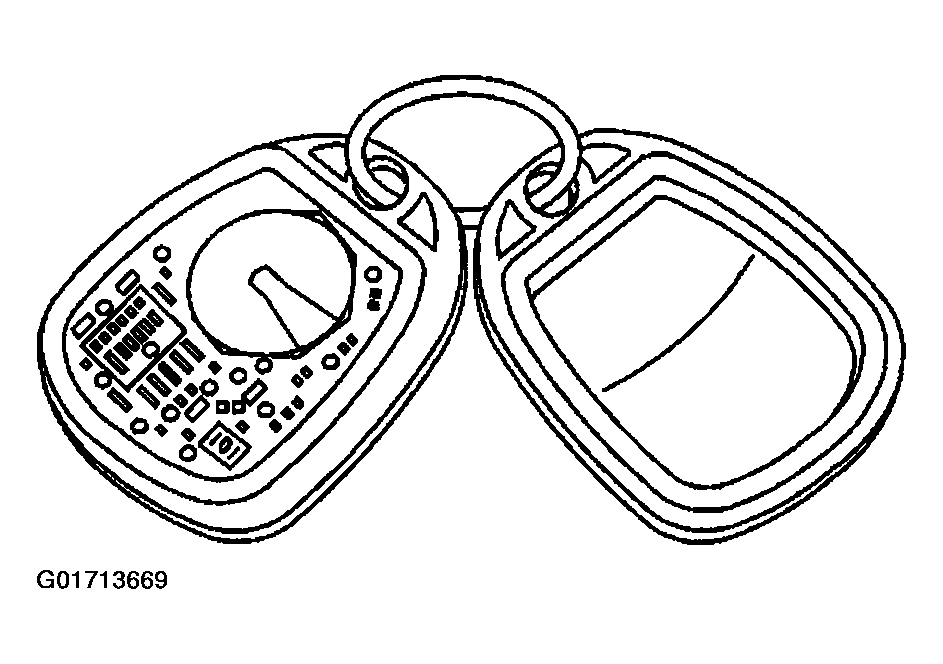

    Fig 2: Removing Battery
    G01713669Courtesy of GENERAL MOTORS CORP.
