2002 Pontiac Aztek FWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- If replacing the VCIM, record the 10-digit STID number, and the 11-digit ESN number from the labels on the new module.

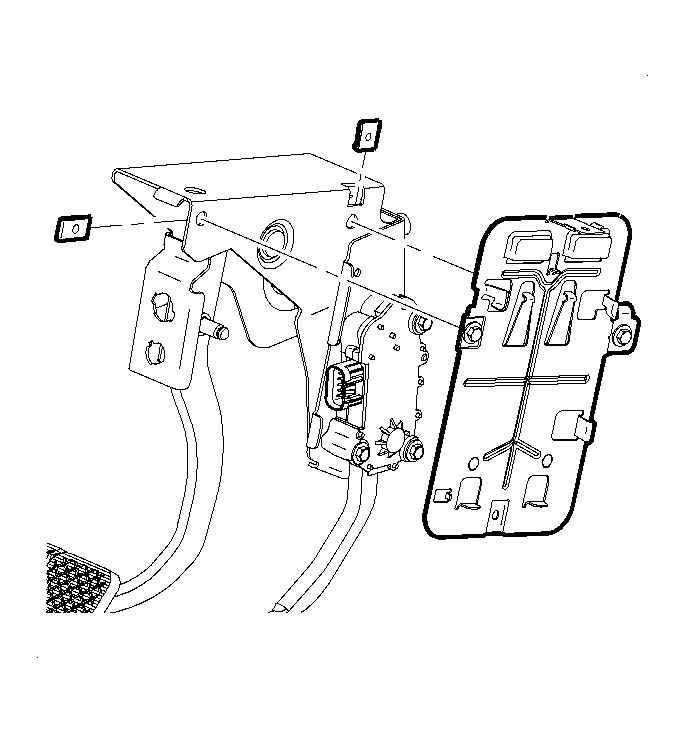

- Install the OnStar® CIM bracket.

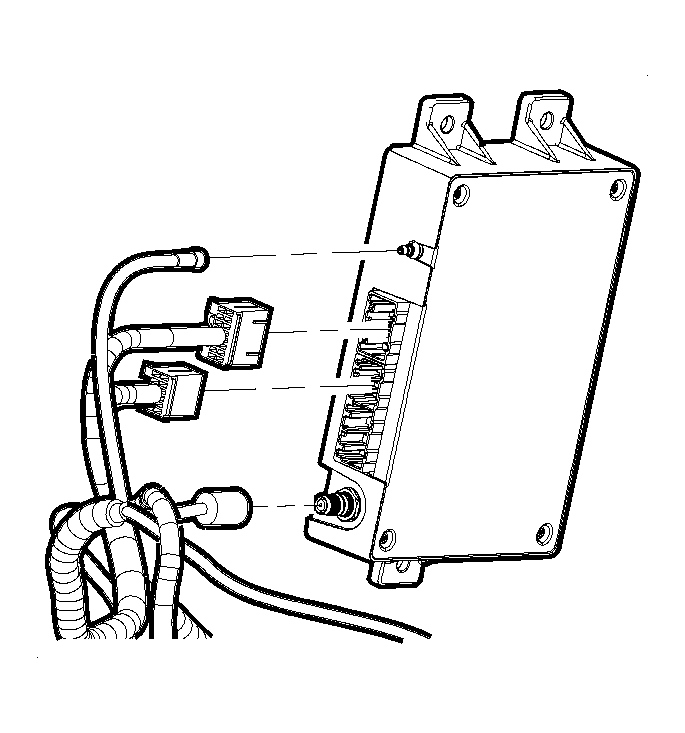

- Connect the electrical connectors, the GPS antenna, and the cellular coax cable.

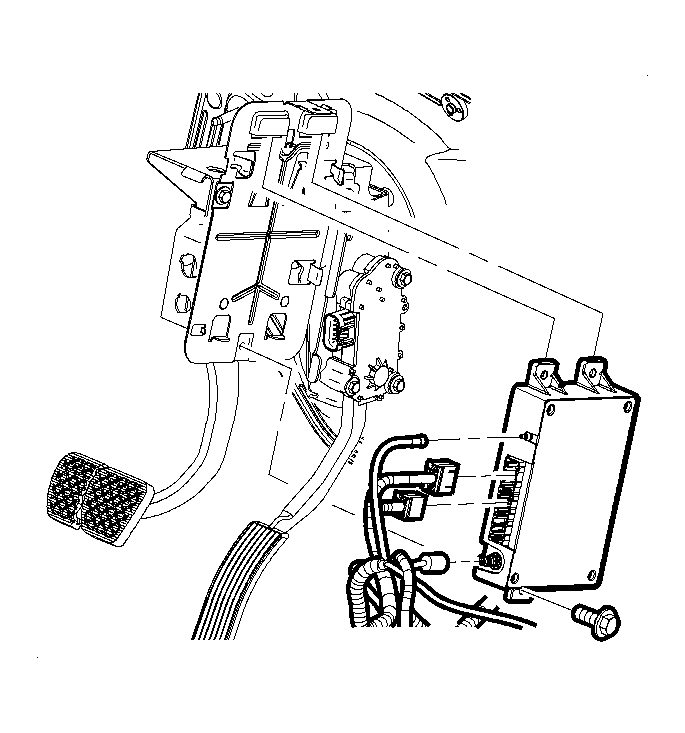

- Tilt the CIM inboard and install the CIM.
