2002 Pontiac Aztek FWDFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

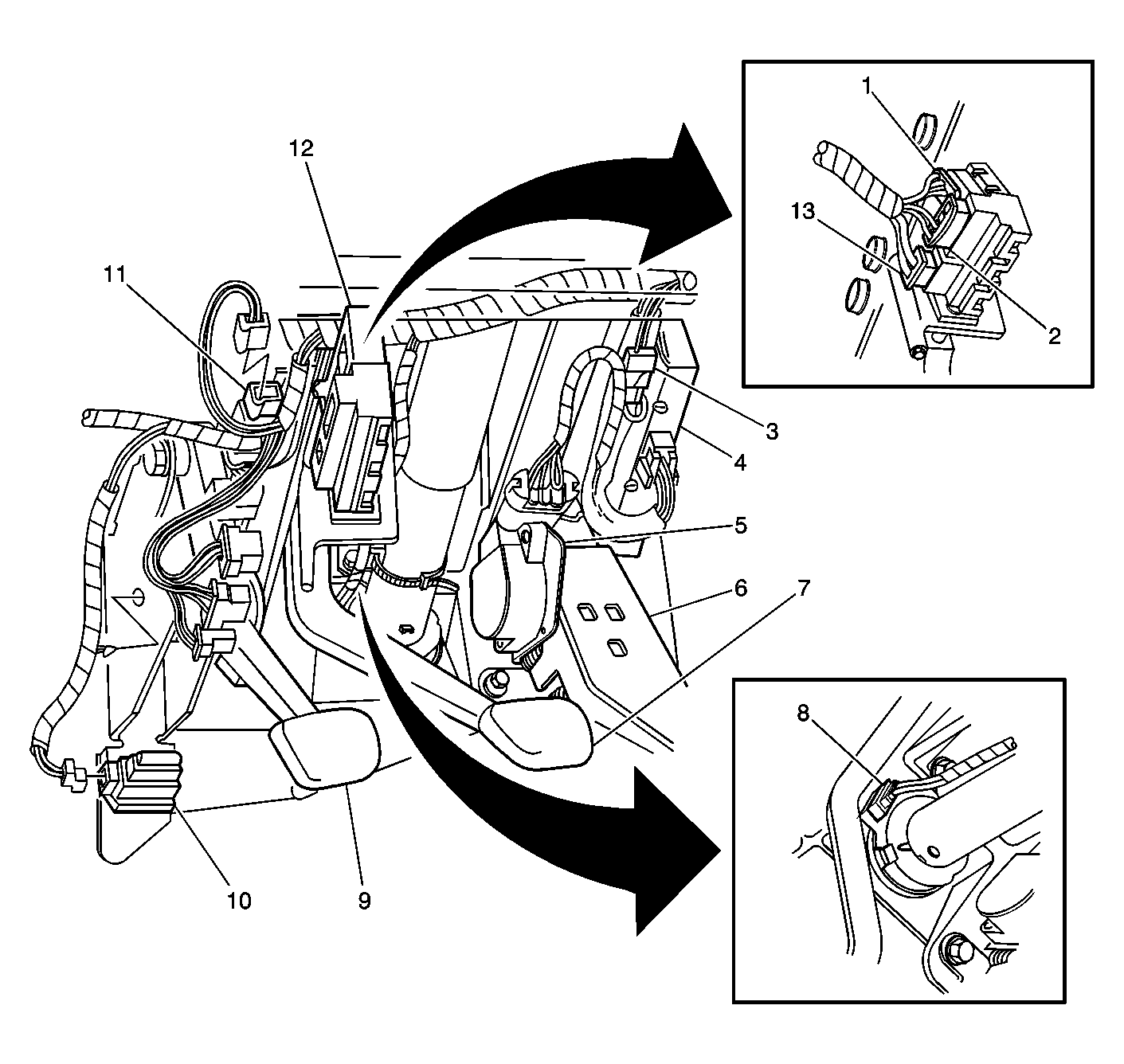

| Callout | Component Name |
|---|---|
| 1 | Stop Lamp Switch C1 |
| 2 | Stop Lamp Switch C3 |
| 3 | C213 |
| 4 | Bose Signal Processor |
| 5 | Accelerator Pedal Position (APP) Sensor |
| 6 | Accelerator Pedal |
| 7 | Brake Pedal |
| 8 | Steering Wheel Position Sensor |
| 9 | Clutch Pedal |
| 10 | Clutch Pedal Start Switch |
| 11 | Clutch Pedal Position Switch |
| 12 | Stop Lamp Switch |
| 13 | Stop Lamp Switch Connector C2 |

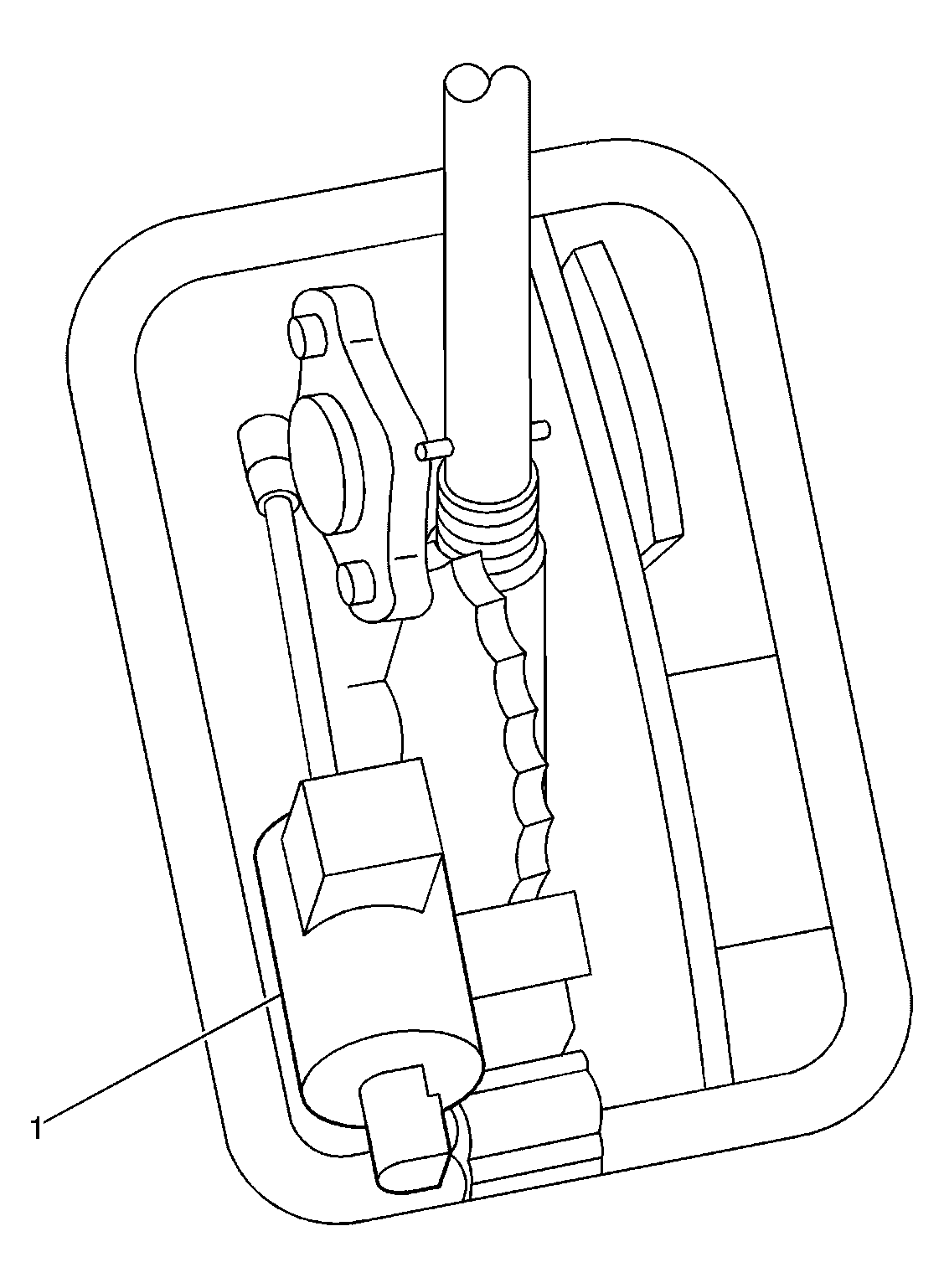

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid |
