Installation Procedure
- Install the PCM to the PCM rear bracket.
- Position the PCM front bracket.
- Install the PCM front retaining fasteners.
Tighten: Tighten the PCM retaining fasteners to 2.0 N.m (17 lb in).

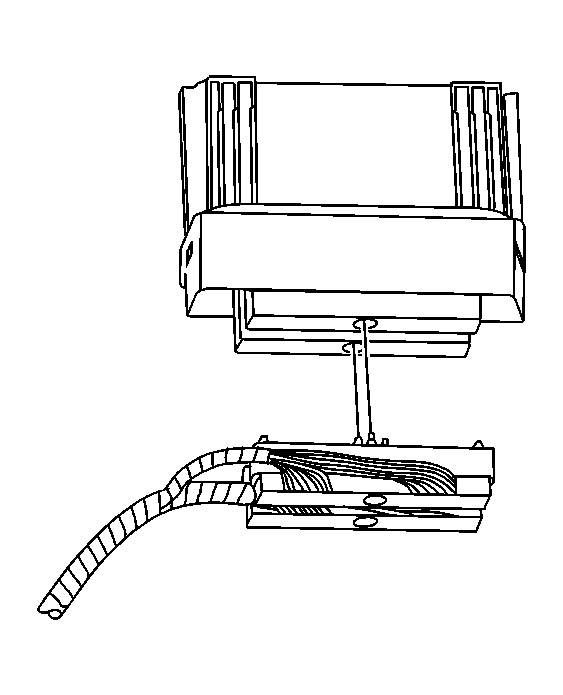

- Connect the electrical connectors to the PCM.
Tighten: Tighten the PCM electrical connectors to 8 N.m (70 lb in).
- Install the TAC module. Refer to Throttle Actuator Control (TAC) Module Replacement .
- Install the wheelhouse filler panel. Refer to Wheelhouse Filler Replacement in Body Front End.
- If a new PCM is being installed, program the PCM. Refer to Service Programming System (SPS) in Programming.
