Installation Procedure

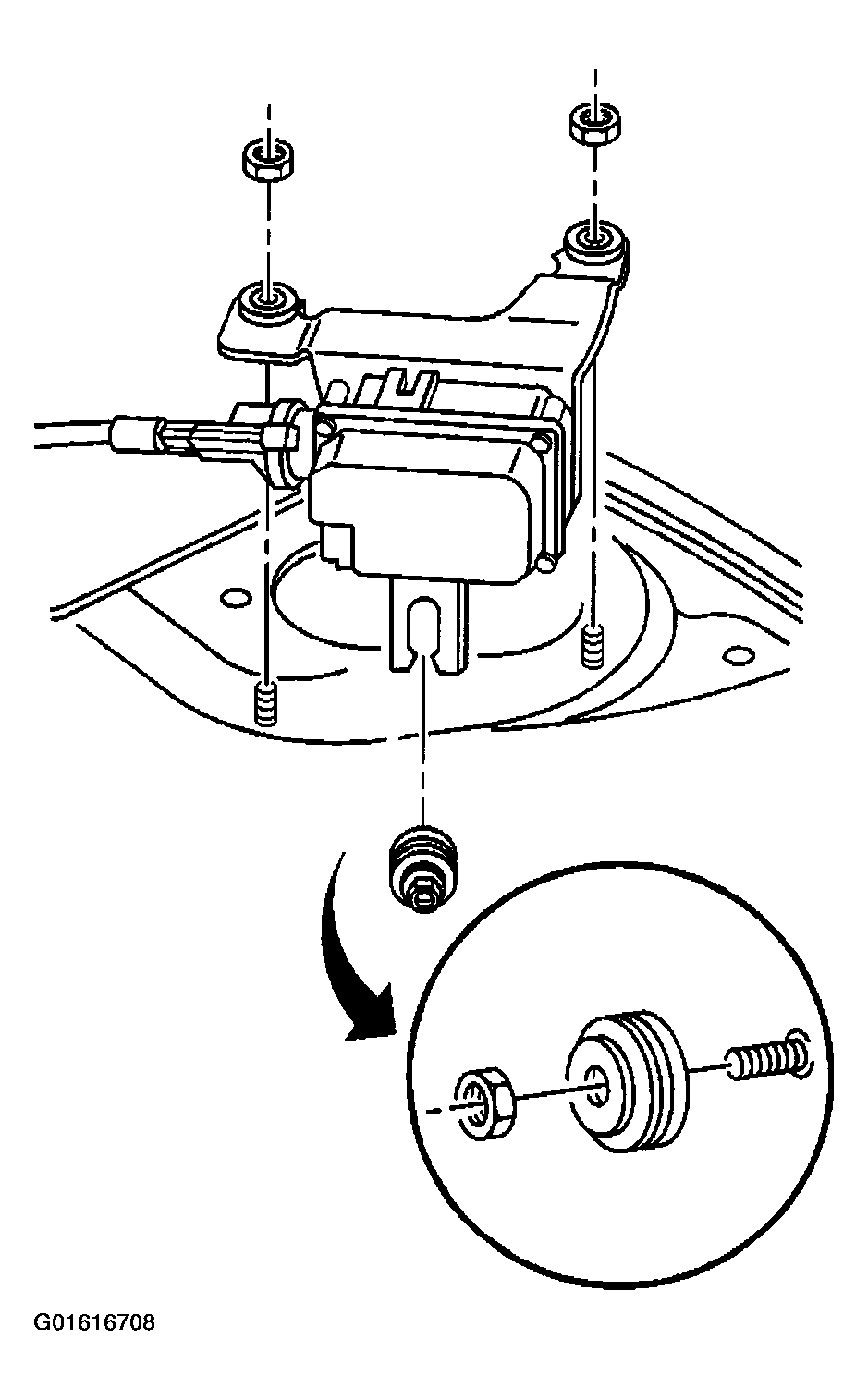

- Install the cruise control module on the mounting studs.NOTE: Refer to FASTENER NOTICE .
- Install the cruise control module mounting nuts on the strut tower.
Tighten
Tighten the mounting nuts to 2 N.m (18 lb in).

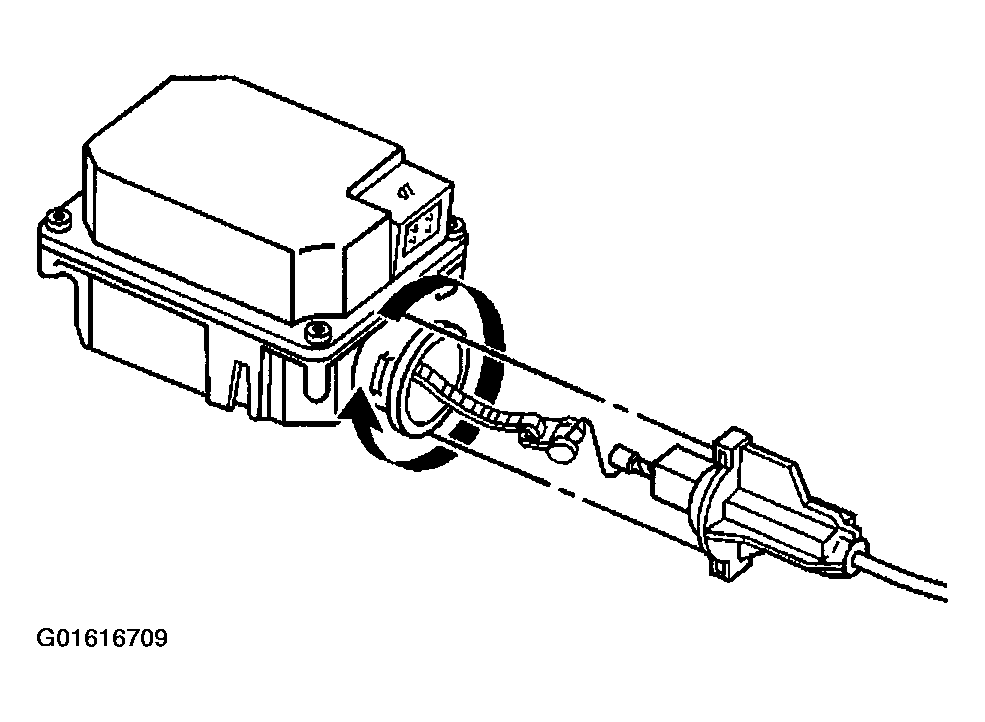

- Connect the electrical connector to the cruise control module.
- Install the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (3.1L) or Cruise Control Cable Replacement (3.8L) .
