2002 Pontiac Aztek FWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Install the cruise control cable to the engine.

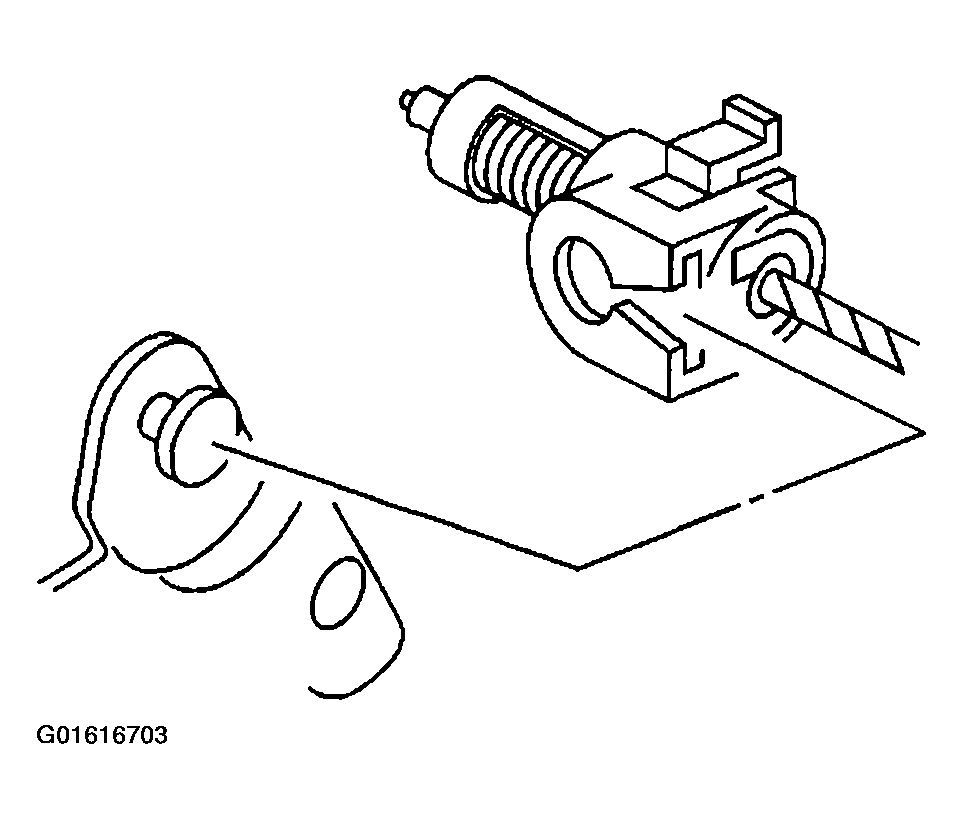

- Install the cruise control cable to the throttle lever and the accelerator control cable bracket.

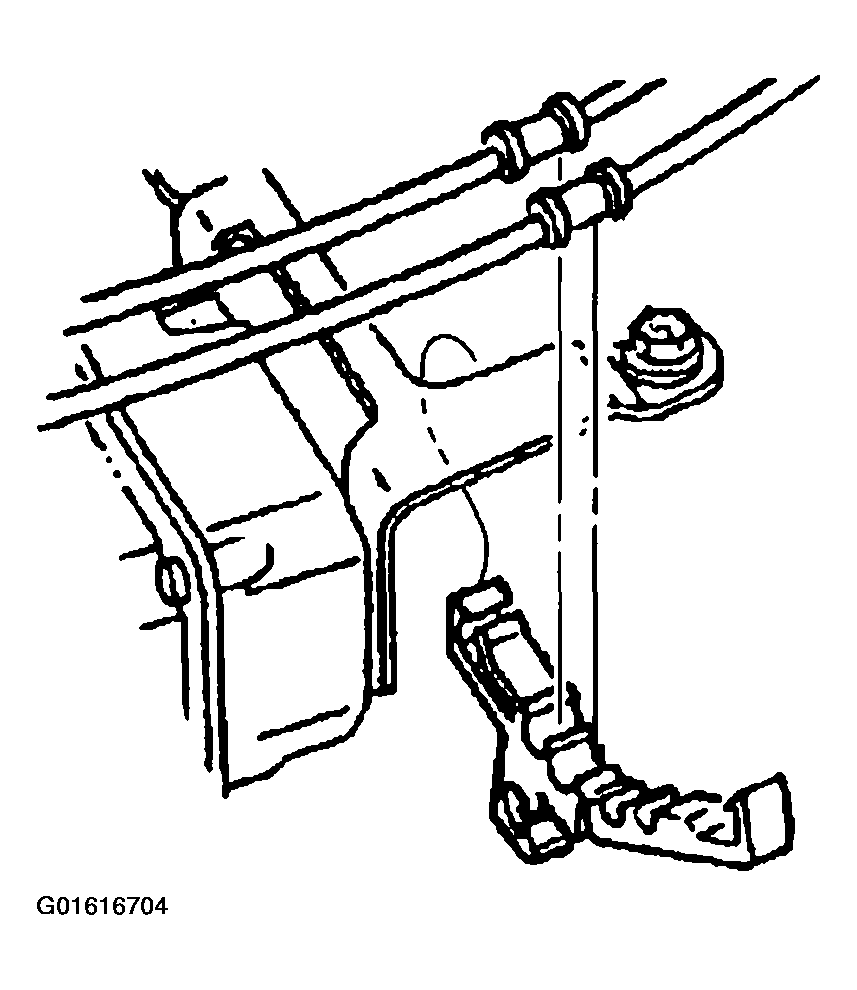

- Install the cruise control cable to the cruise control retainers.
- Install the cruise control cable to the cruise control module strap.
Important: Ensure the cruise control module strap is not twisted during installation of the cruise control cable.
- Rotate the cruise control cable clockwise.
Install the cruise control cable to the cruise control module.
