2002 Pontiac Aztek FWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Install the muffler over the rear axle and towards the rear of the vehicle.
Install the exhaust hanger insulators to the muffler.
If the vehicle is equipped with AWD, use the utility stand to raise and install the crossmember. Refer to CROSSMEMBER .

Fig 1: Installing Muffler
Courtesy of GENERAL MOTORS CORP.
Install a new catalytic converter gasket.
NOTE: Refer to FASTENER NOTICE .
Install the catalytic converter bolts.
Tighten

Tighten the bolts to 34 N.m (25 lb ft).
Lower the vehicle.

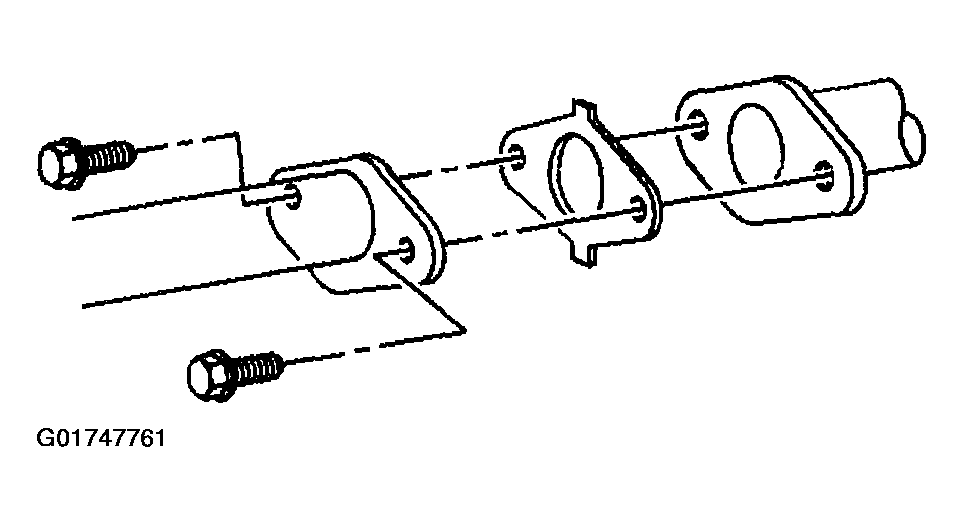

Fig 2: Installing Catalytic Converter Gasket & Bolts
Courtesy of GENERAL MOTORS CORP.
