2002 Pontiac Aztek FWDFACTORY OEM SERVICE PROCEDURE
Component Locations
NOTE:

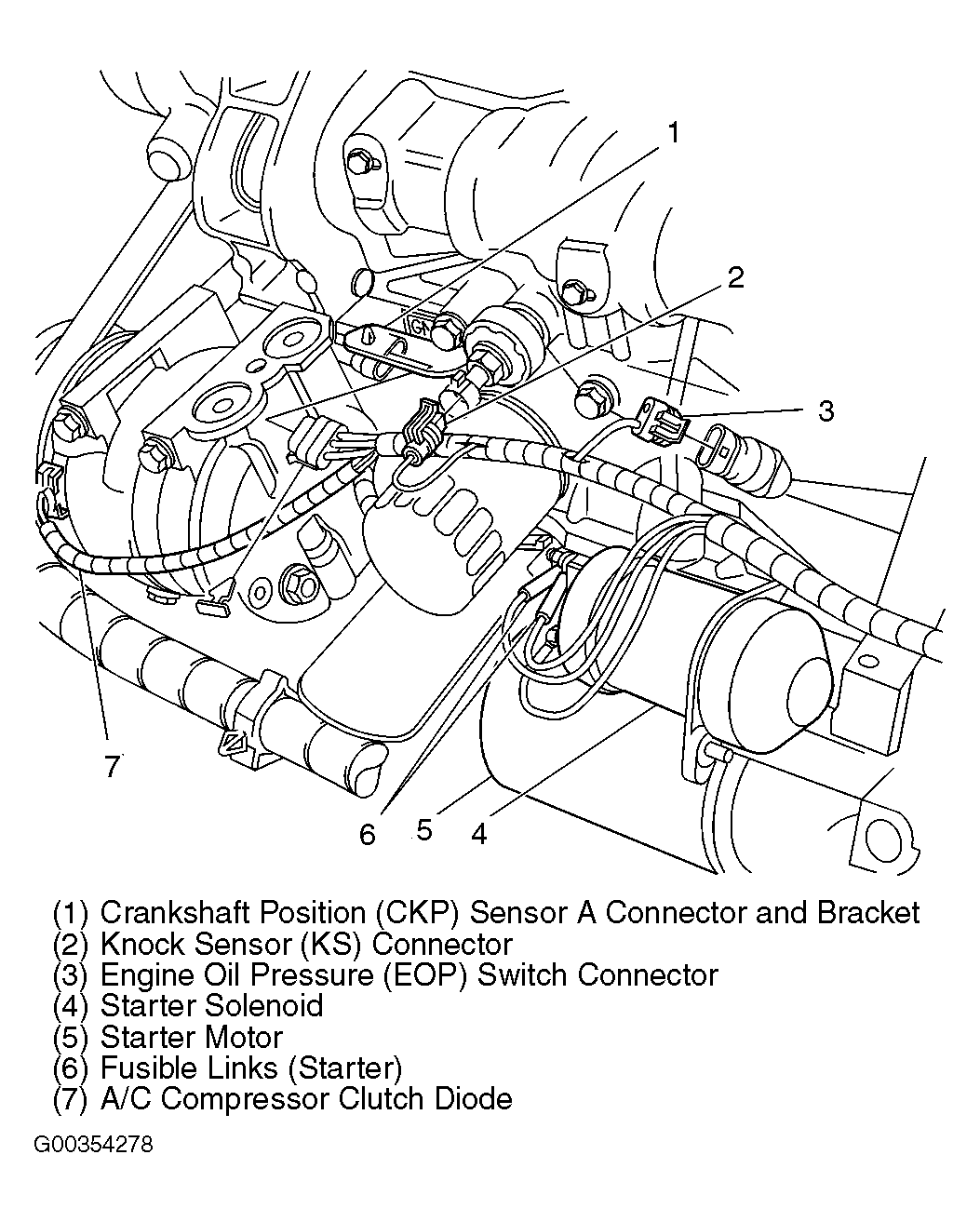

Starter relay may also be referred to as crank relay. To locate and identify starter motor and components, see Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector | Lower Left Side Of Instrument Panel |
| Ignition Switch | Lower Side Of Steering Column |
| Instrument Panel Fuse Block | Right Side Of Instrument Panel, Near Door Pillar |
| Park/Neutral Position Switch | Mounted To Top Of Steering Column, Near Gear Selector |
| Powertrain Control Module | Right Side Of Engine Compartment, Forward Of Strut Tower |
| Starter Relay | Underhood Fuse Block |
| Underhood Fuse Block | Right Side Of Engine Compartment, On Strut Tower |
