Installation Procedure
- Install the battery ground (negative) cable to the vehicle.
- Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

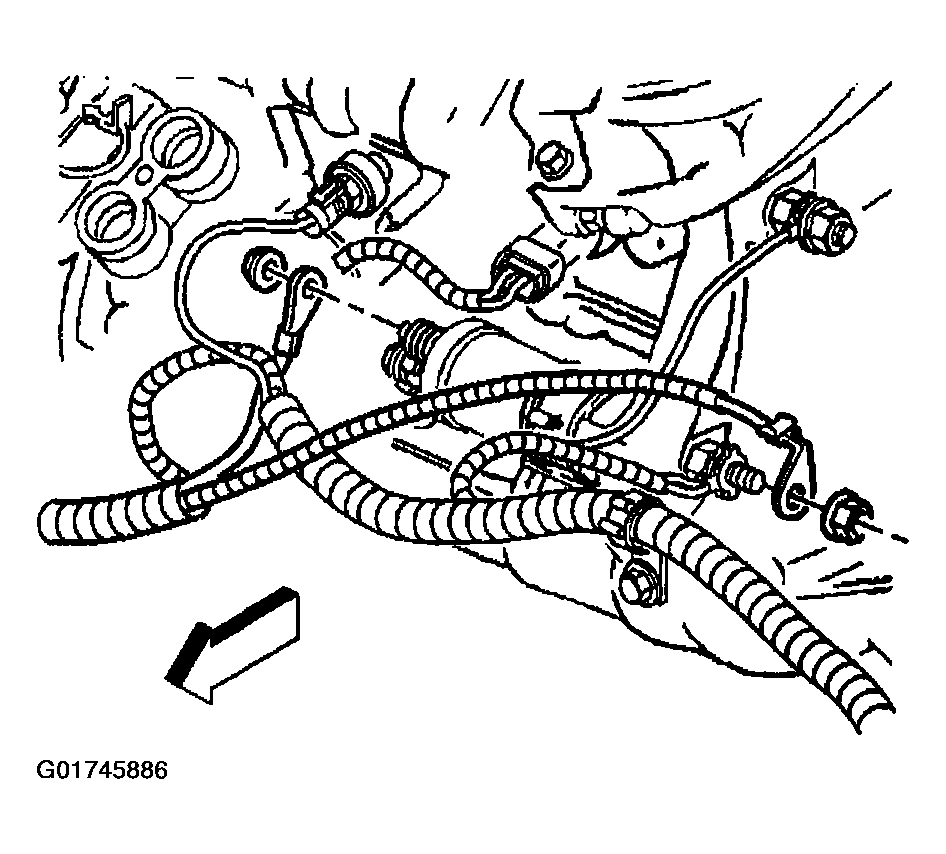

- Install the battery ground (negative) cable and nut to the transaxle stud.
Tighten
Tighten the nut to 25 N.m (18 lb ft).
- Install the battery cable to the conduit.
- Install the battery cable conduit to the conduit retainers.
- Install the lower radiator baffle. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS .
- Lower the vehicle.

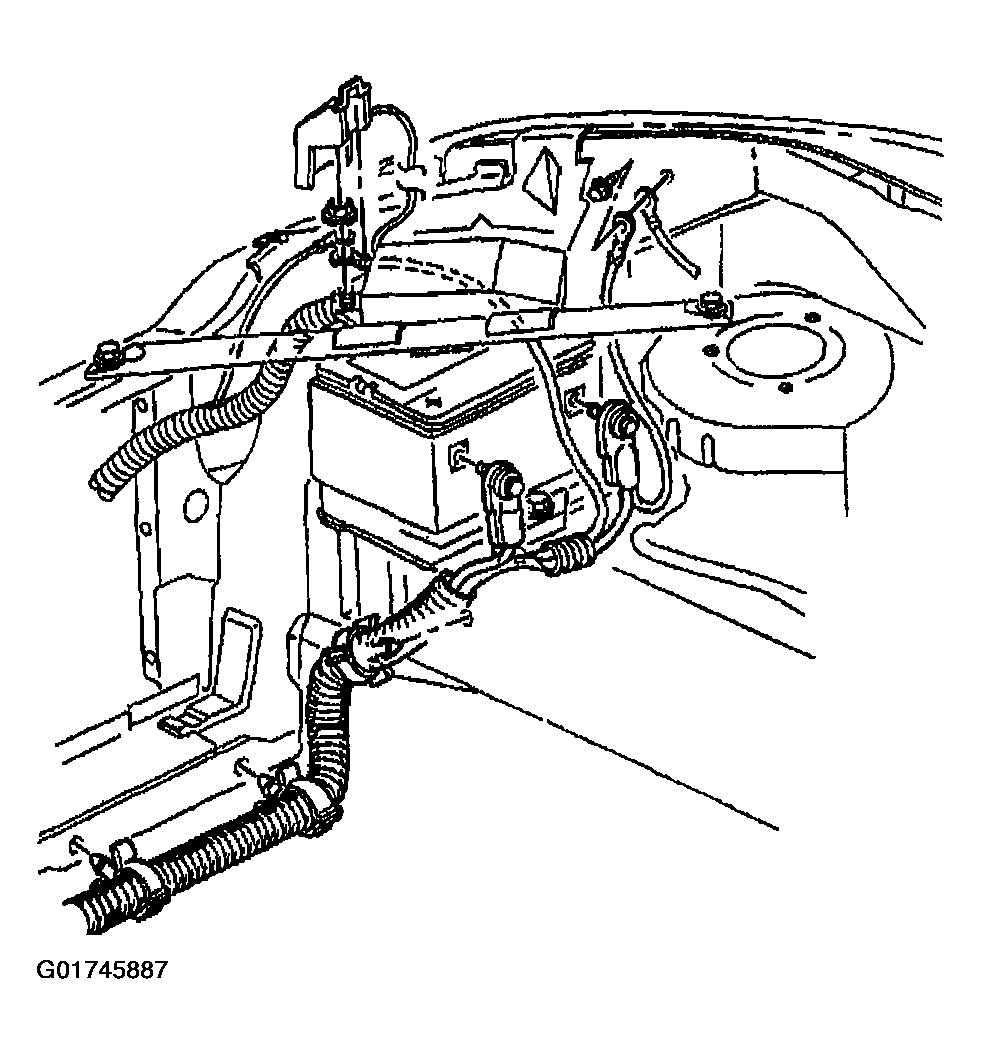

- Install the battery ground (negative) cable and bolt to the inner fender.
Tighten
Tighten the bolt to 5 N.m (44 lb in).
- Install the battery ground (negative) cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
