Installation Procedure
- Install the strut to the vehicle.NOTE: Refer to FASTENER NOTICE .

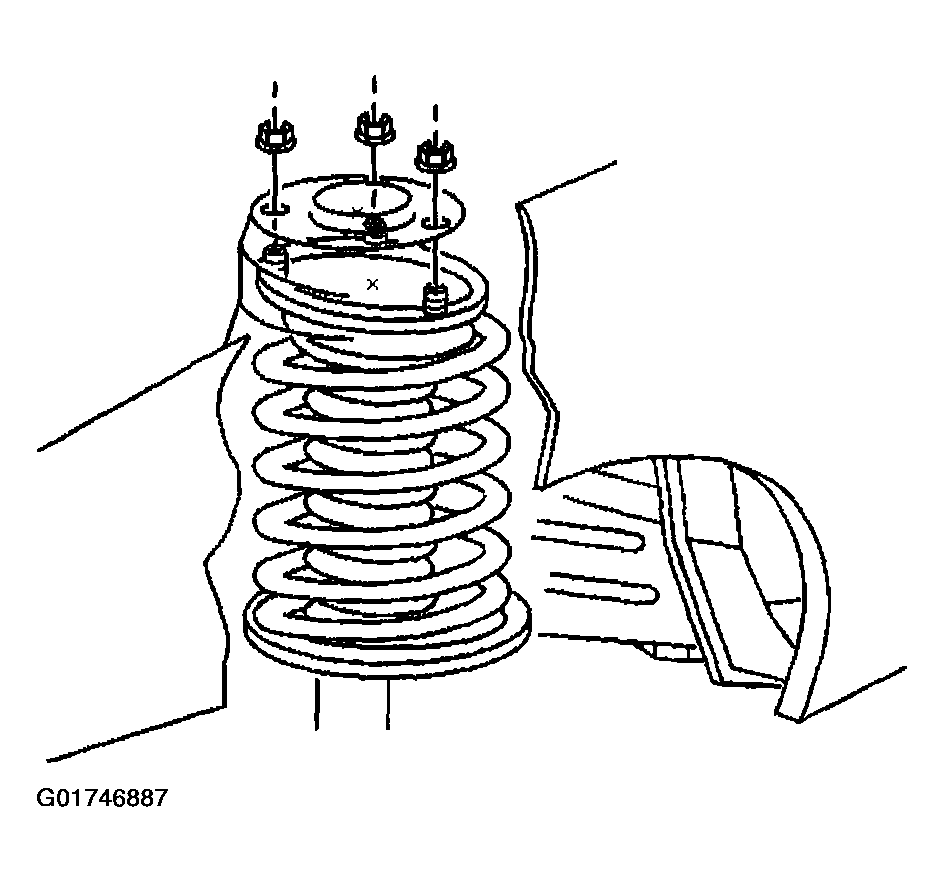

- Install the strut upper nuts.
Tighten
Tighten the strut upper nuts to 41 N.m (30 lb ft).
- Install the wiper module refer to WIPER MOTOR MODULE REPLACEMENT .

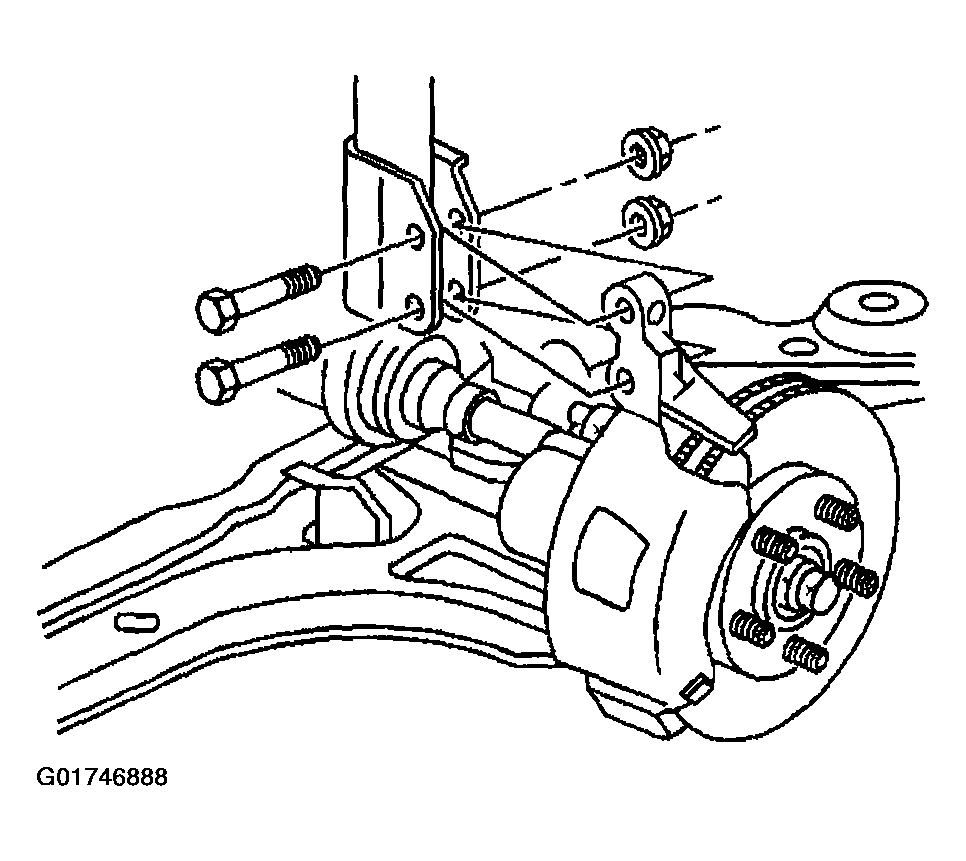

- Install the strut lower bolts and nuts.
Important: This is a prevailing torque type fastener. This fastener may be reused ONLY if:
- The fastener and its counterpart are clean and free from rust.
- The fastener develops 3 N.m (27 lb in) of torque (drag) against its counterpart prior to the fastener seating.
If the fastener does not meet these criteria, REPLACE the fastener.

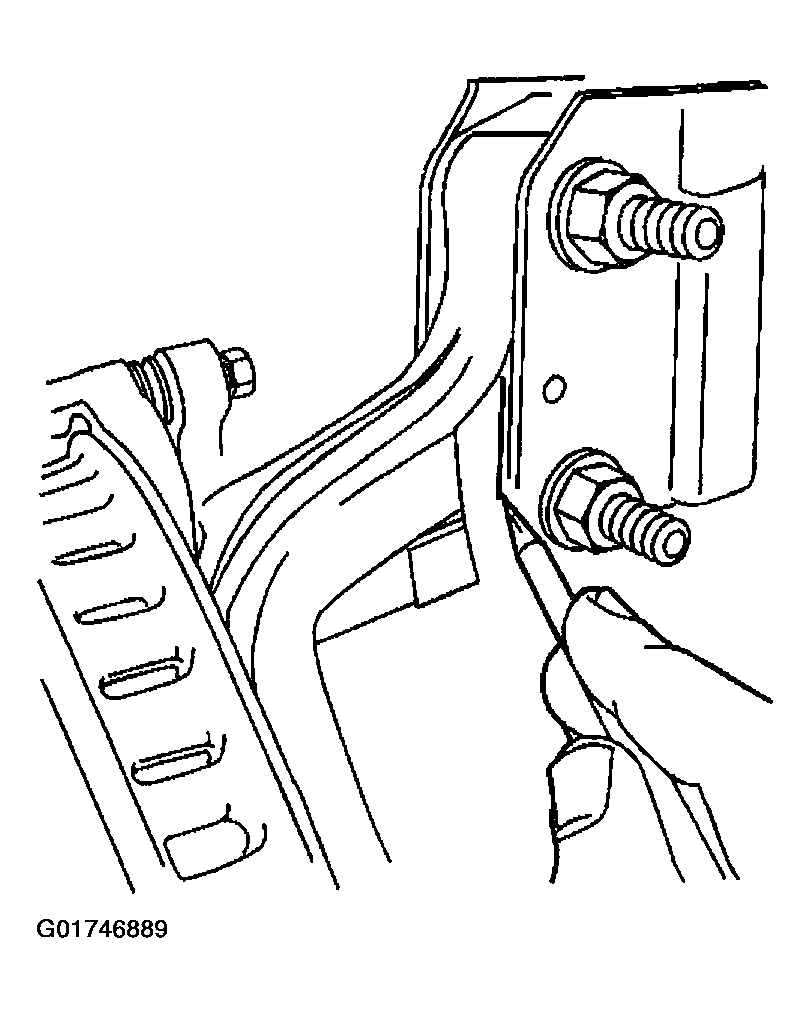

- Align the strut to the mark on the knuckle.
Tighten
Tighten the strut lower nuts to 123 N.m (90 lb ft).
- Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Inspect the adjust the camber as necessary.
- Lower the vehicle.
