2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE
Headlight Leveling Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION )
- Remove the front scuff plate. (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the front side trim. (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)

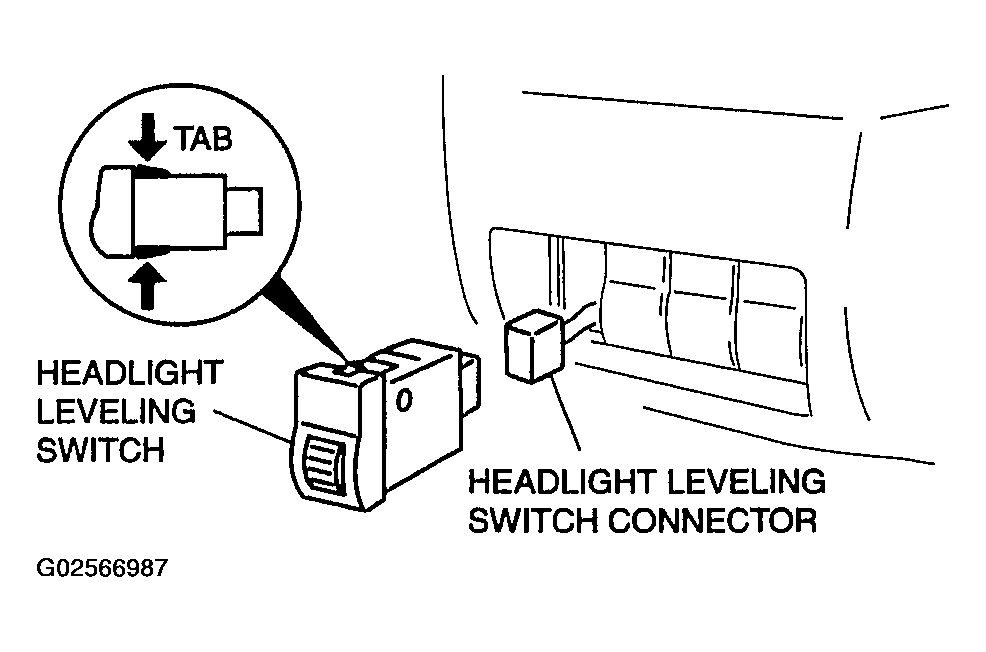

- Remove the headlight leveling switch
- Disconnect the headlight leveling switch connector.
- Install in the reverse order of removal.
