2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Install the lamp module to the connector until fully seated.

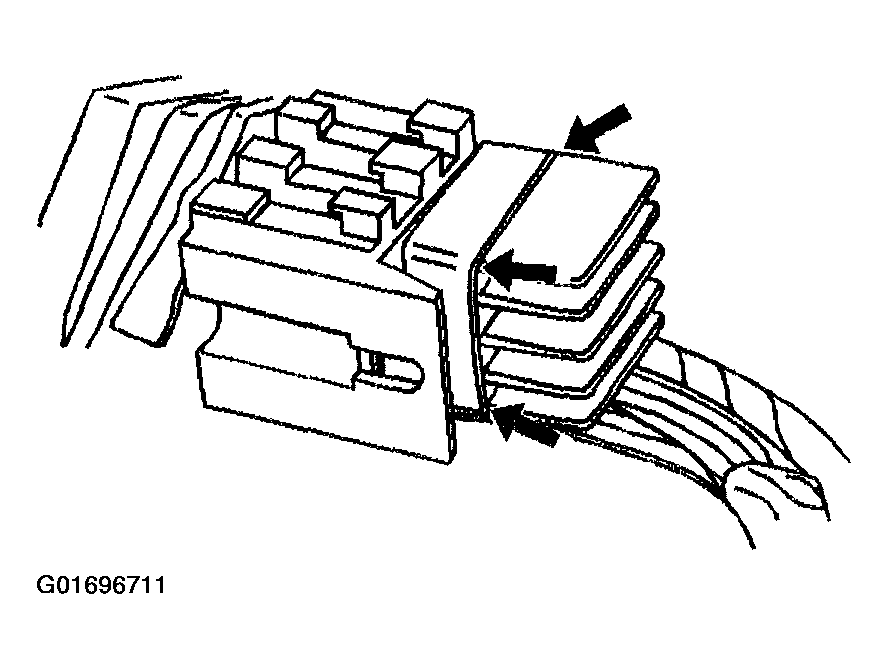

Important: Do not tape past the line where the cooling fins begin. Taping around the fins will result in the module overheating.
- Install a new electrical tape around the module in order to secure the module to the IP wire harness.
- Connect all the electrical connectors.

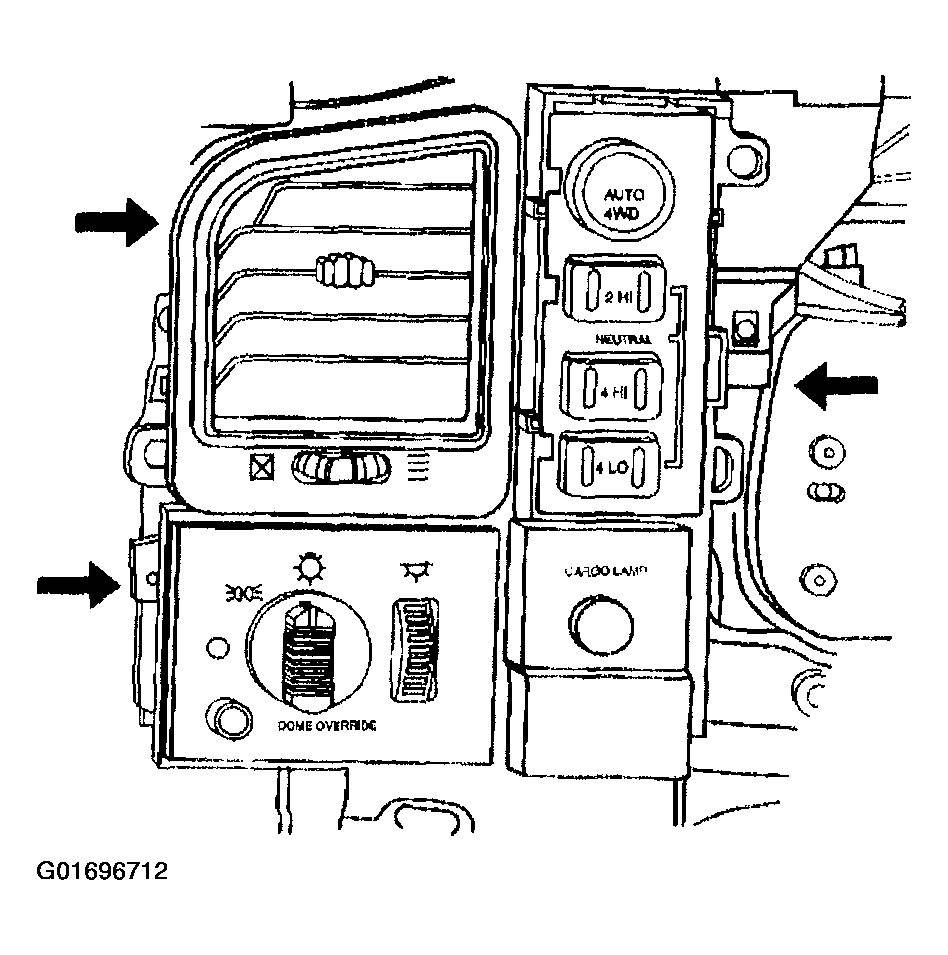

- Install the head lamp switch/4WD shift button housing to the IP so that the retainers are fully seated.
- Install the IP trim bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER .
