2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module to the vehicle.
  2. Connect the cruise control cable to the cruise control module. Refer to CRUISE CONTROL CABLE REPLACEMENT (4.8L, 5.3L, & 6.0L Engines) .
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the nuts in order to retain the cruise control module to the cowl. Tighten the nuts to 9 N.m (80 lb in).

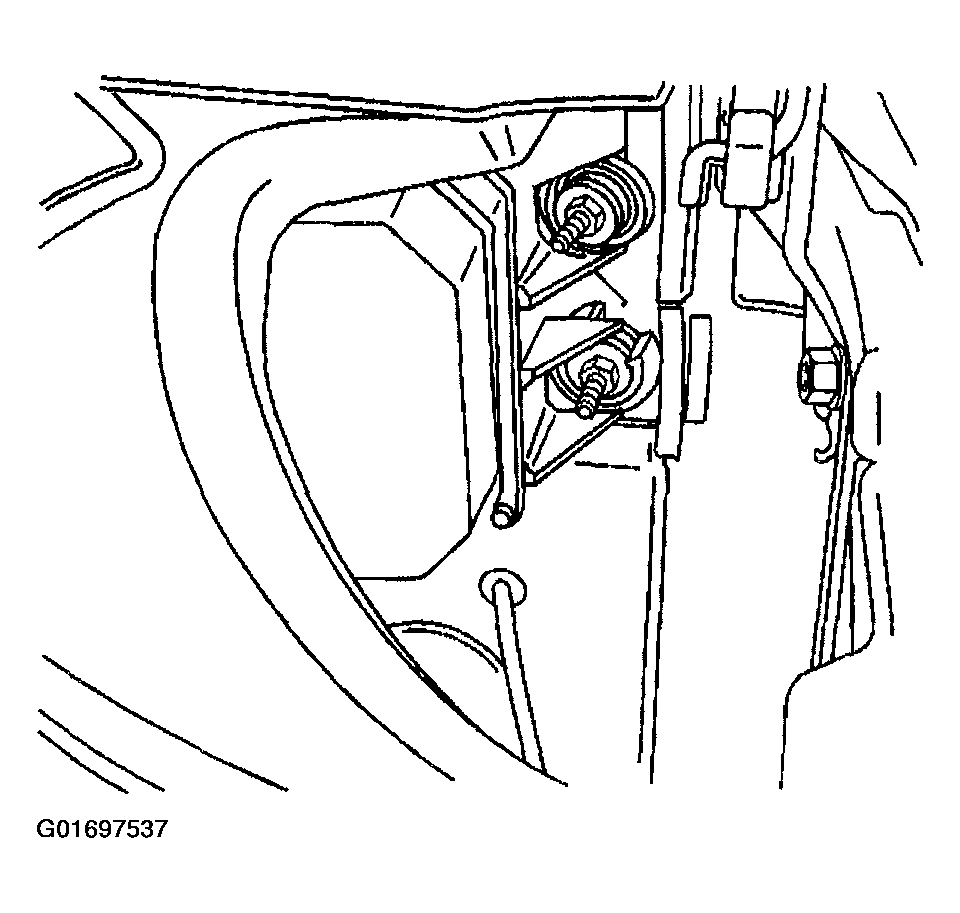

    4. Fig 1: Installing Cruise Control Module To Cowl Nuts
    G01697537Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector at the cruise control module.

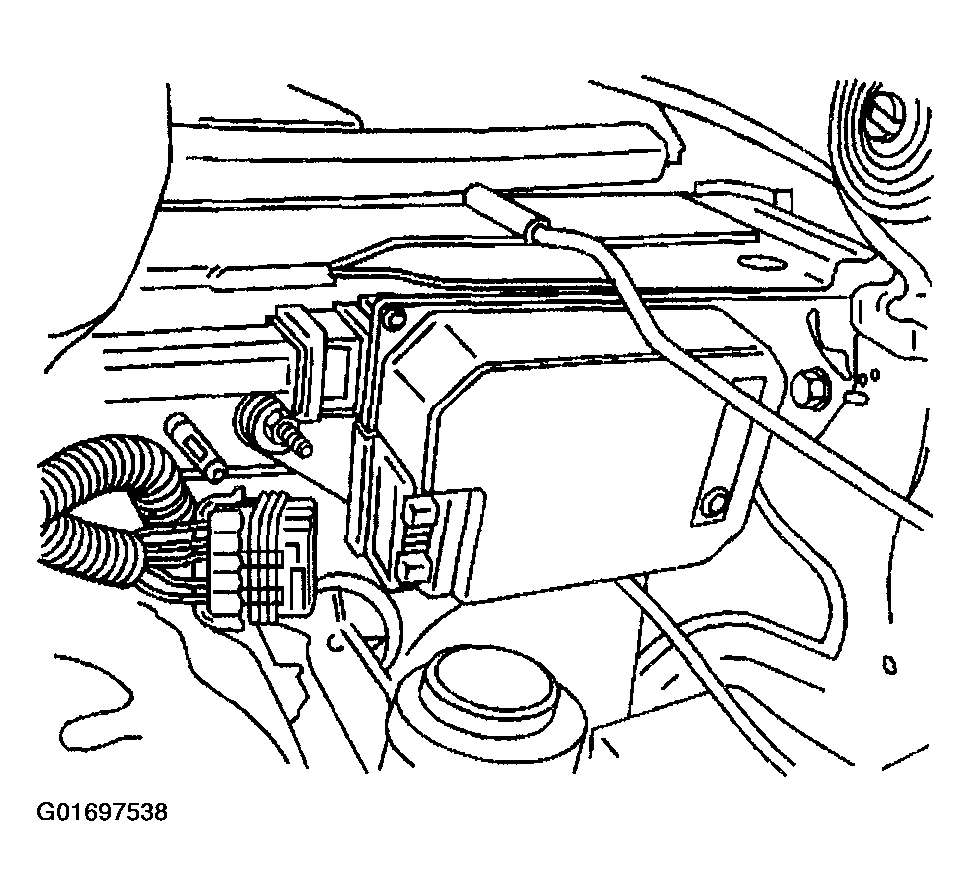

    5. Fig 2: Connecting Electrical Connector At Cruise Control Module
    G01697538Courtesy of GENERAL MOTORS CORP.
  5. Install the brace. Tighten the bolts to 9 N.m (80 lb in).

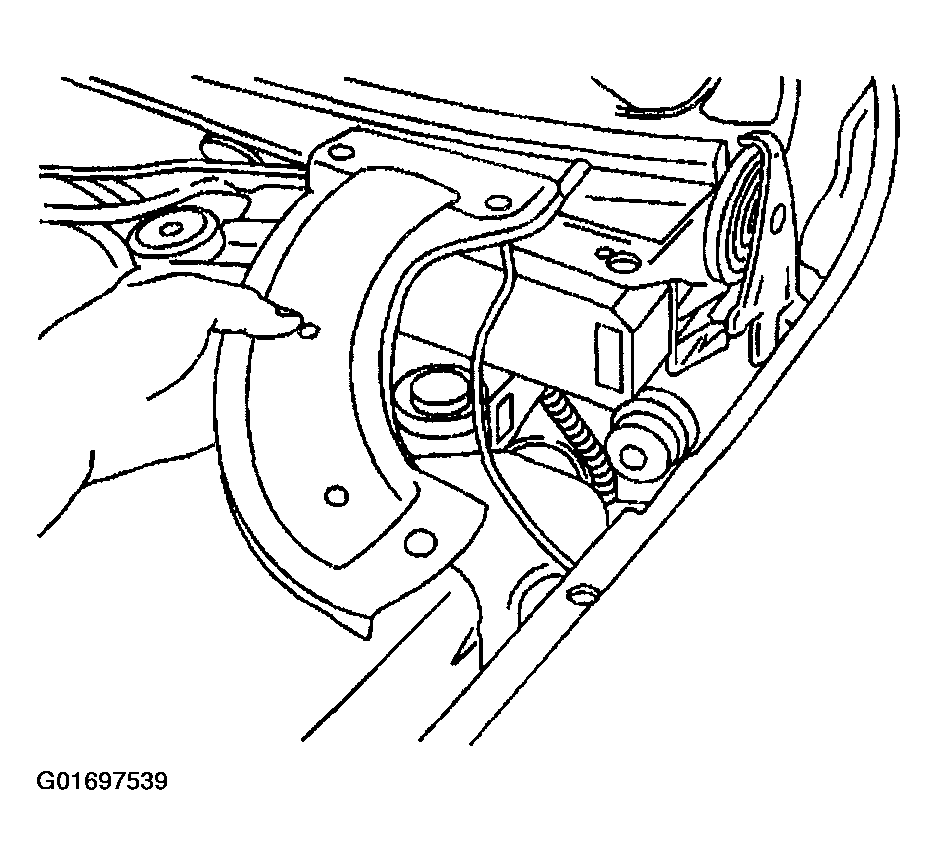

    6. Fig 3: Installing Brace
    G01697539Courtesy of GENERAL MOTORS CORP.
