2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connectors to the DRL module.

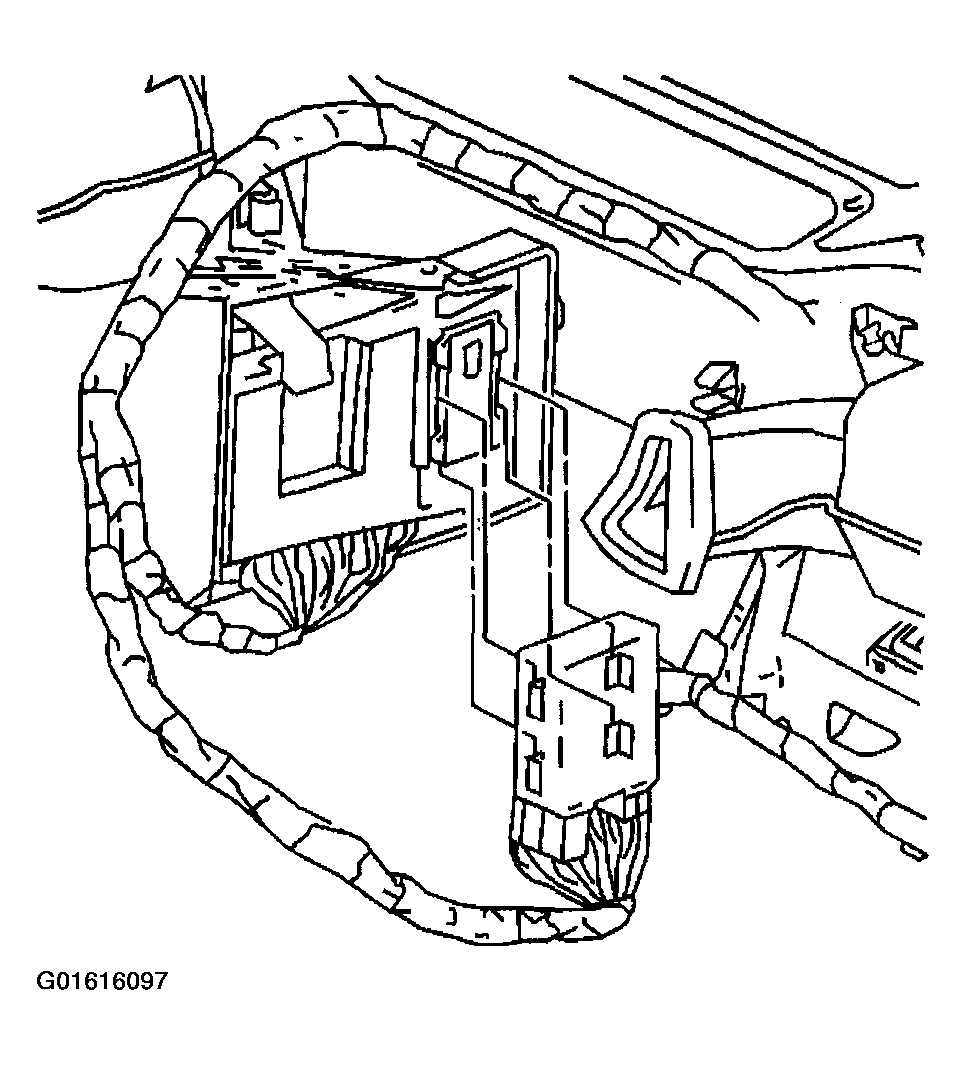

- Position the DRL module to the BCM bracket, then slide the module downward to secure the module tabs into the retaining slots on the bracket.
- Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
