2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

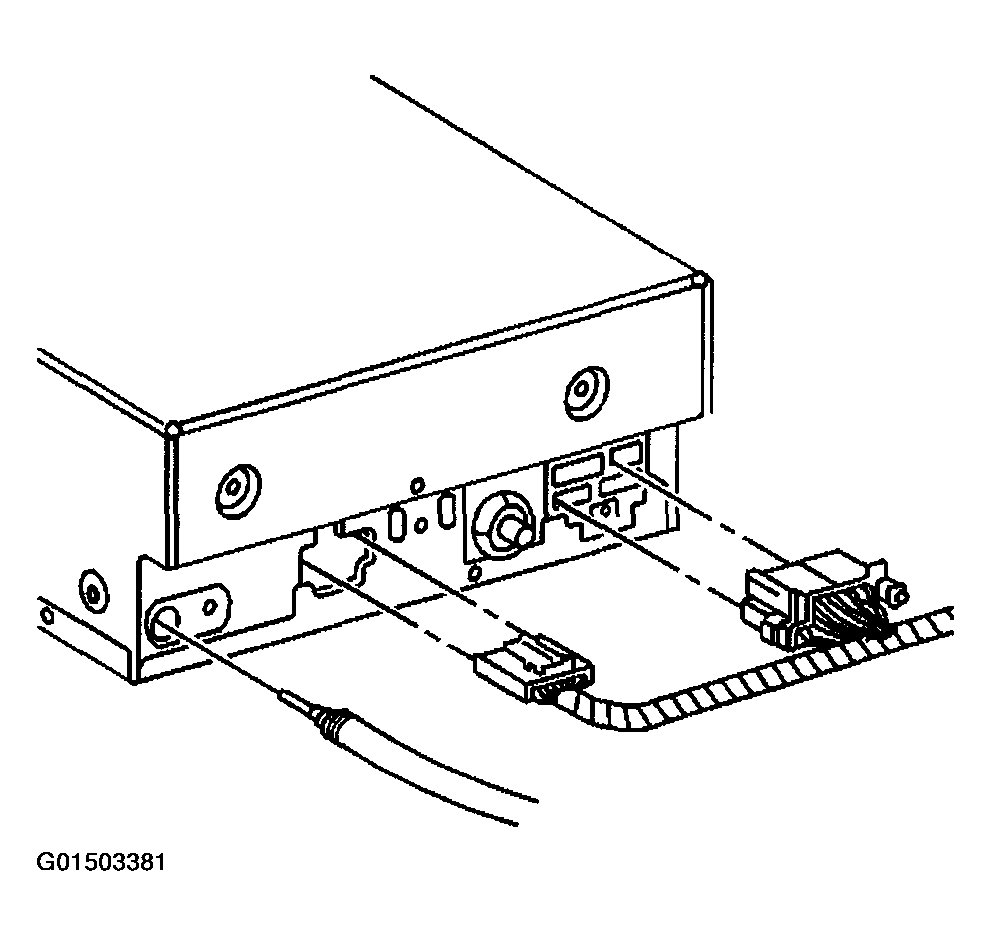

- Connect the coaxial cable connector to the radio.
- Connect the electrical/audio connectors to the radio.
- Install the radio to the instrument panel (IP).
Important: If the radio locator tab is difficult to align to the IP locator opening, pull the radio toward you and reposition the antenna cable.
- Align the radio control locator tab to the IP locator hole while carefully pressing the radio into the IP until fully seated.
