2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE

Engine Block Disassemble

Remove the camshaft rear bearing hole plug.

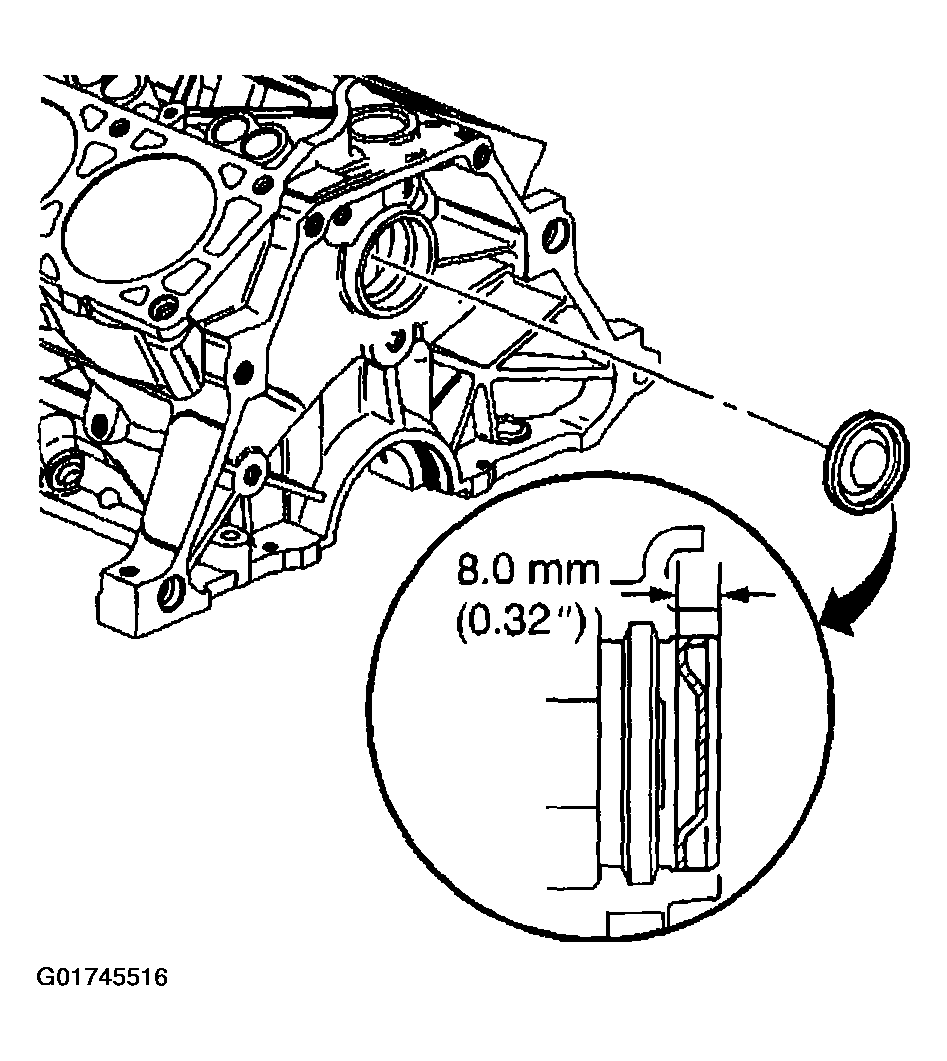

Fig 1: Removing Camshaft Rear Bearing Hole Plug
Courtesy of GENERAL MOTORS CORP.
Remove the rear oil gallery plugs (1, 2, 3).

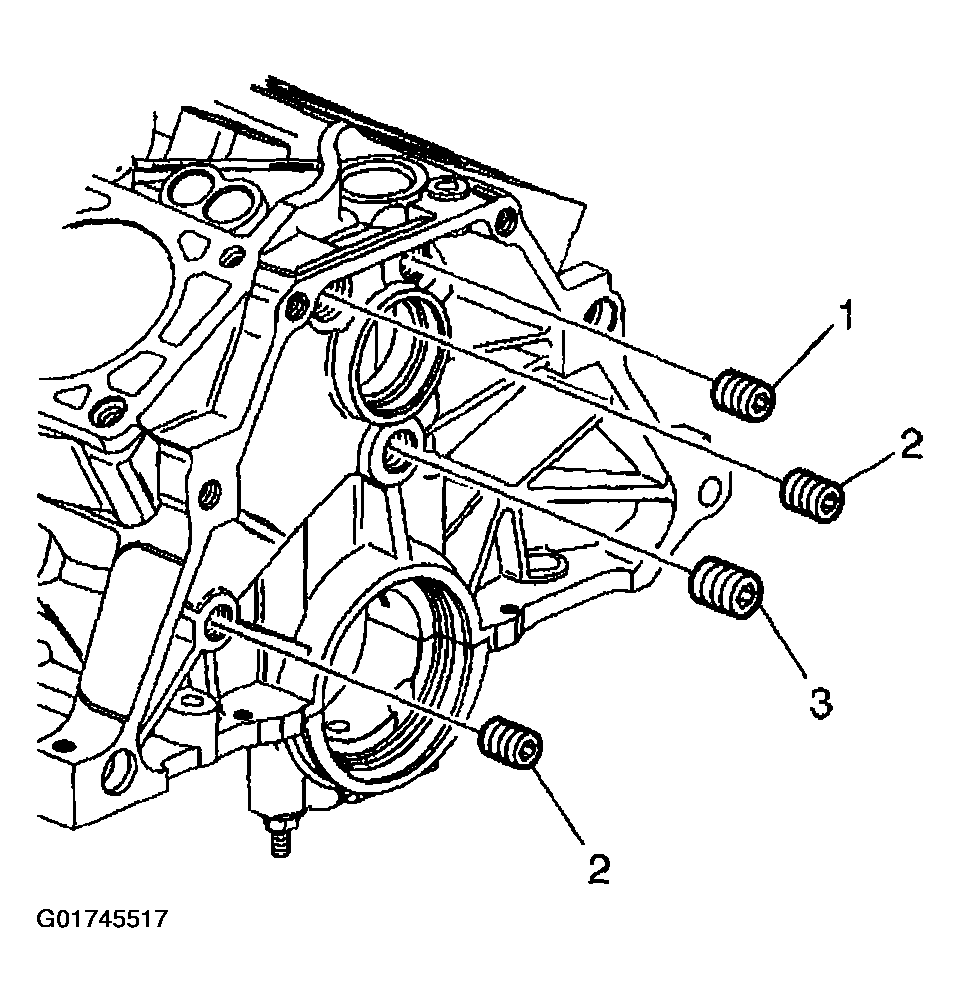

Fig 2: Removing Rear Oil Gallery Plugs
Courtesy of GENERAL MOTORS CORP.
Remove the front oil gallery plugs (1, 2).

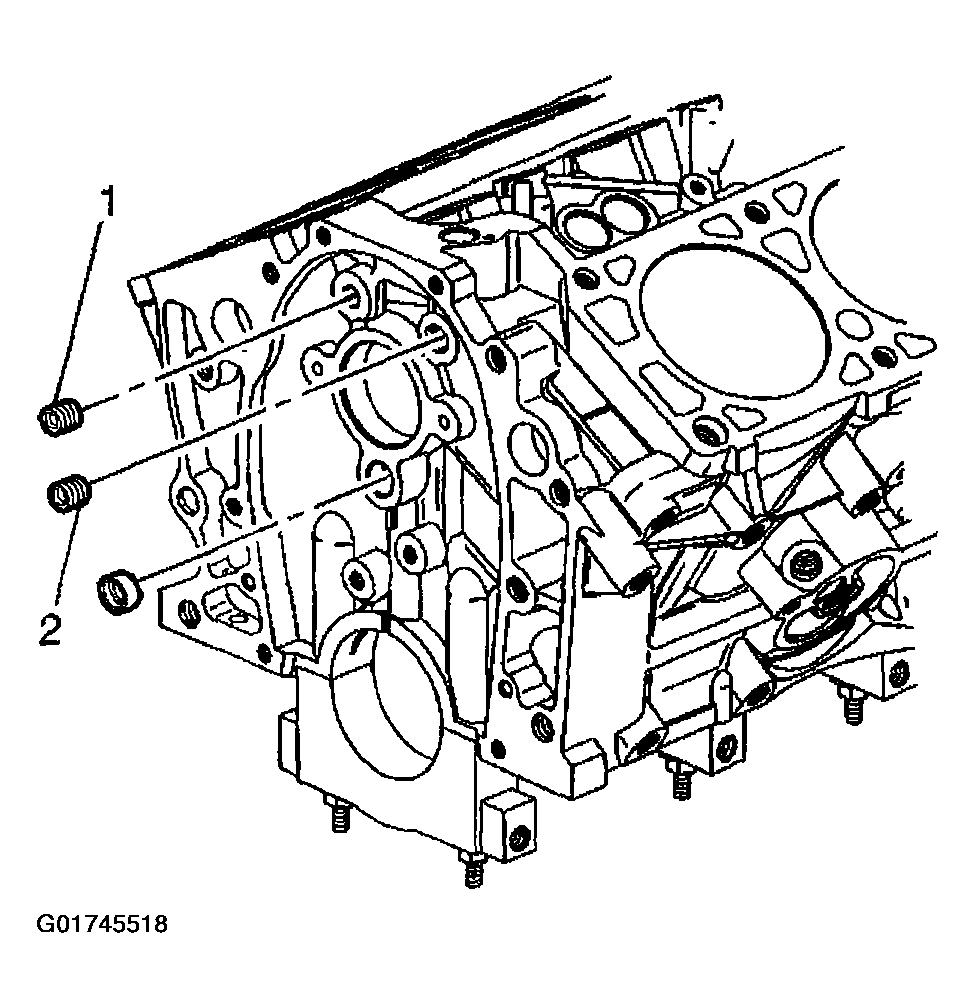

Fig 3: Removing Front Oil Gallery Plugs
Courtesy of GENERAL MOTORS CORP.
Remove all of the remaining engine block plugs.
Remove the knock sensor.

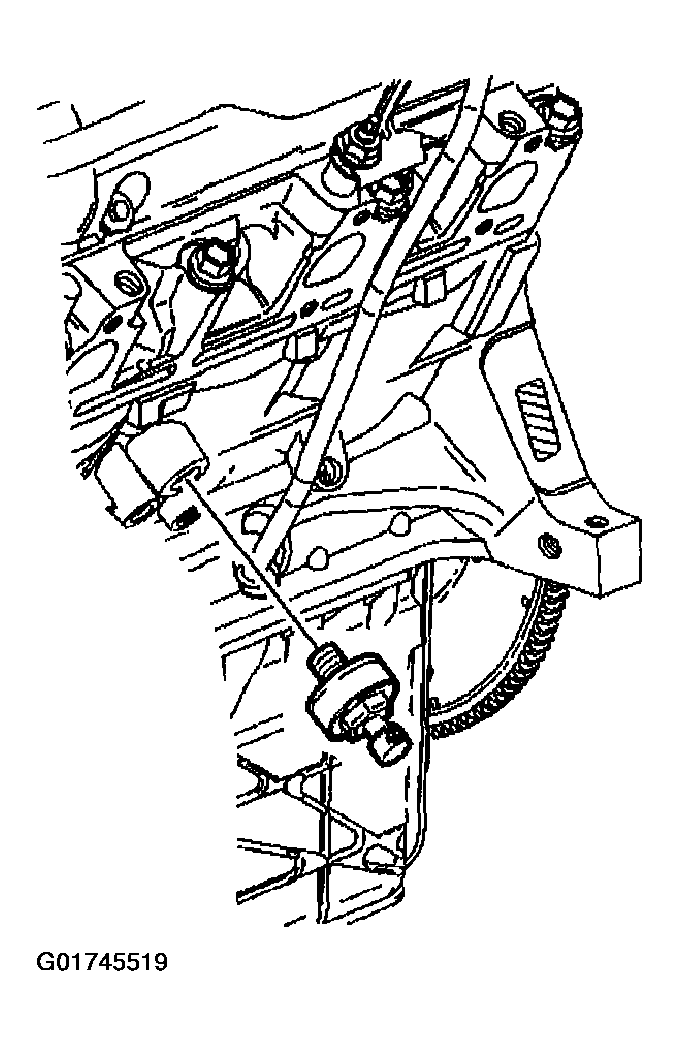

Fig 4: Removing Knock Sensor
Courtesy of GENERAL MOTORS CORP.
Remove the engine oil pressure switch.

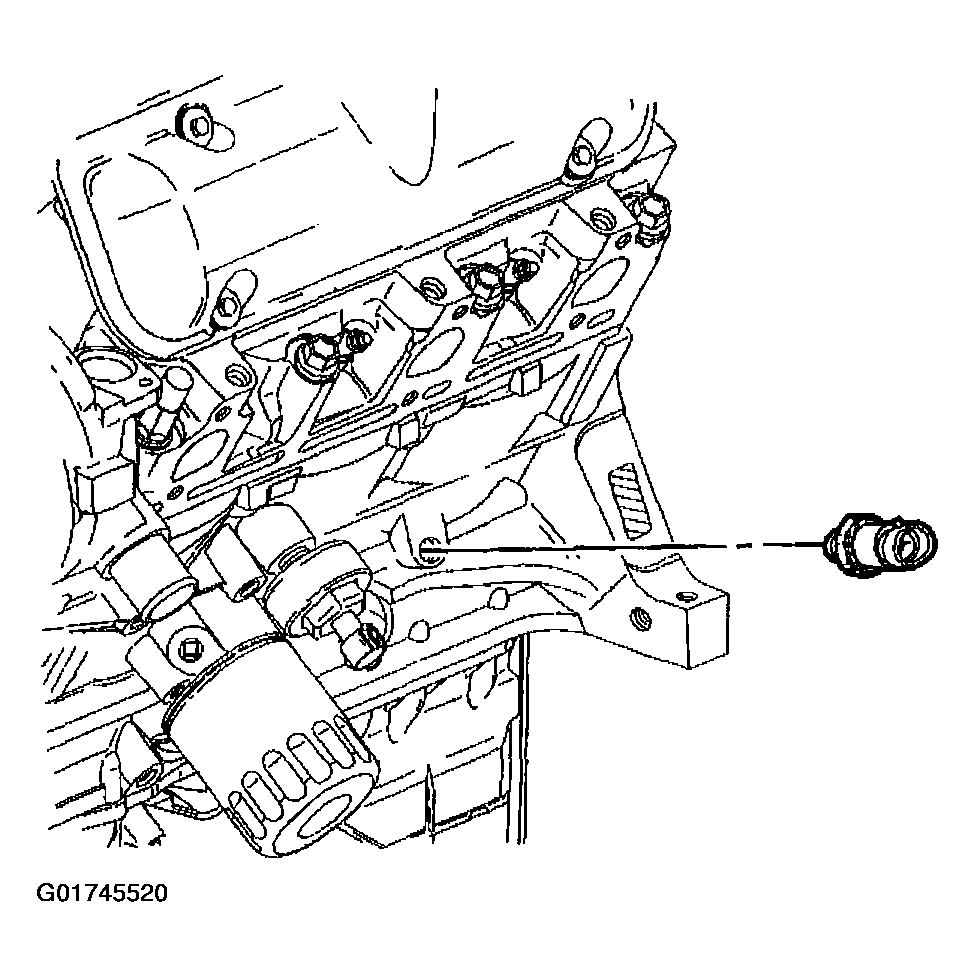

Fig 5: Removing Engine Oil Pressure Switch
Courtesy of GENERAL MOTORS CORP.
