2002 Pontiac Aztek AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install the battery positive cable to the vehicle.
- Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
.NOTE: Refer to FASTENER NOTICE .

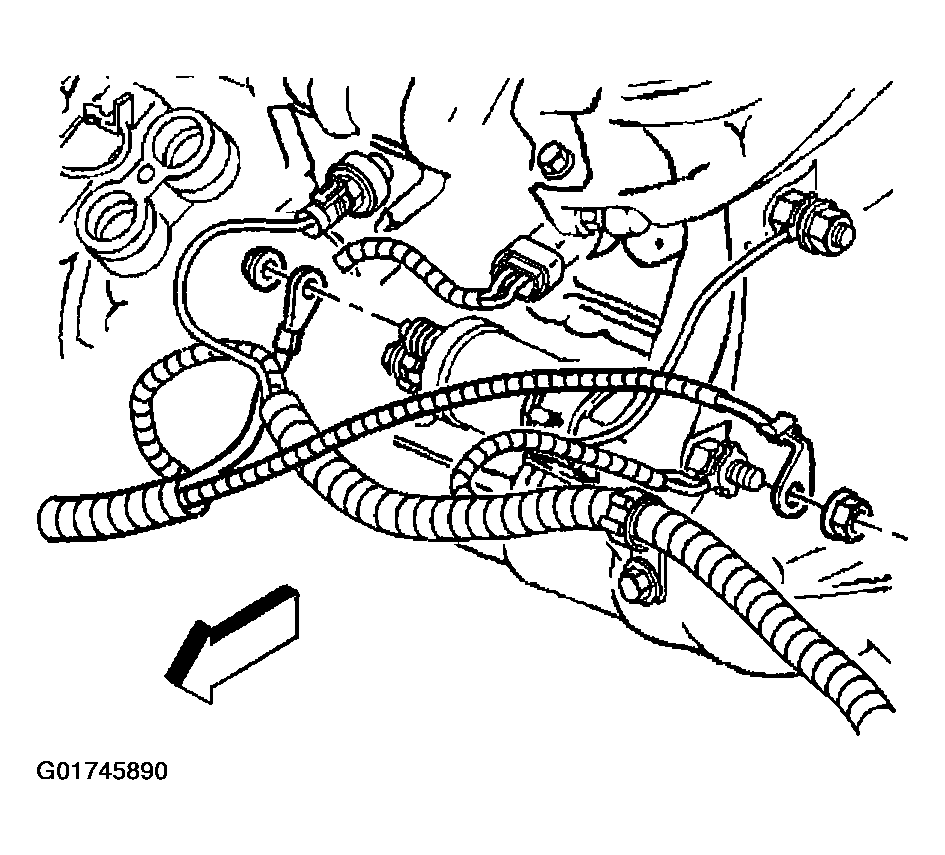

- Install the battery positive cable and nut to the starter motor BAT terminal.
Tighten
Tighten the nut to 10 N.m (89 lb in).
- Install the battery positive cable to the conduit.
- Install the battery cable conduit to the conduit retainers.
- Install the lower radiator baffle. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS .
- Lower the vehicle.
- Connect the battery positive cable to the generator. Refer to GENERATOR .

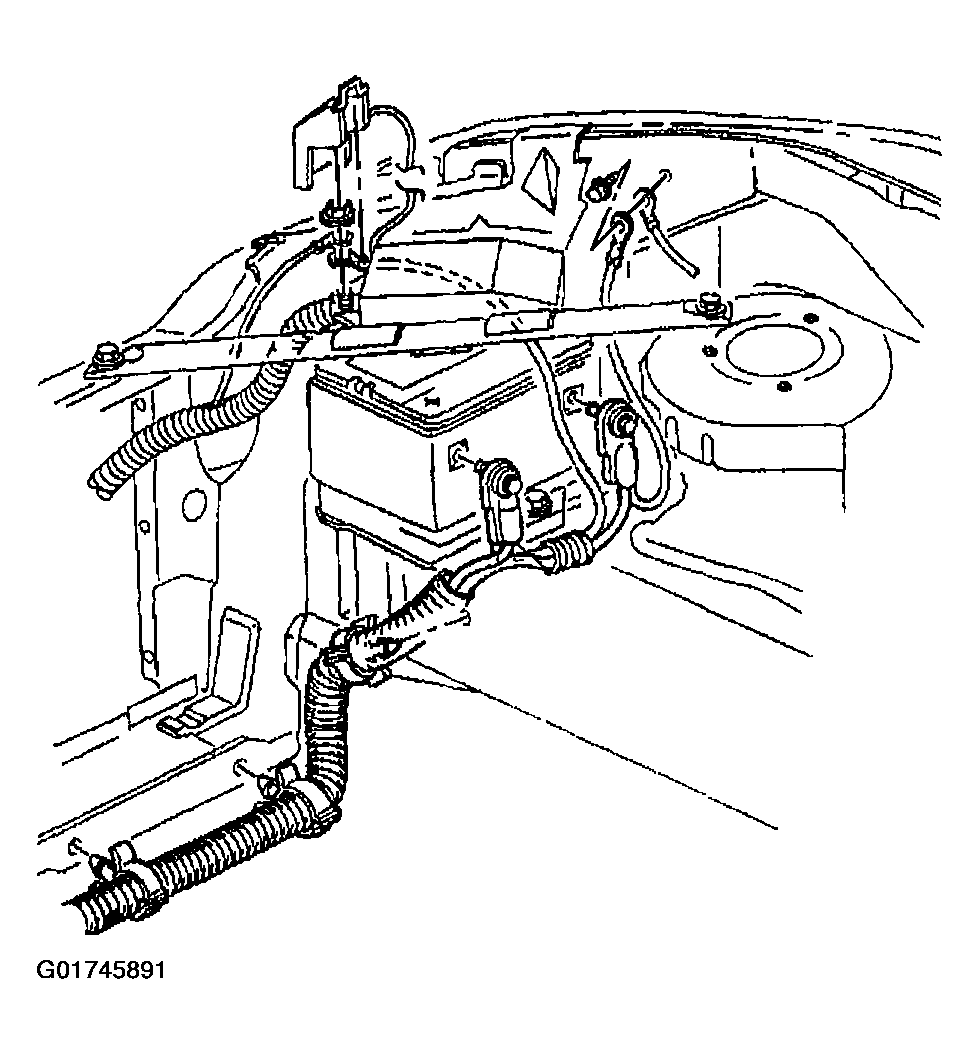

- Install the battery positive cable and nut to the underhood electrical center.
Tighten
Tighten the nut to 10 N.m (89 lb in).
- Install the battery positive cable and bolt to the battery.
Tighten
Tighten the bolt to 16 N.m (12 lb ft).
- Install the battery ground (negative) cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
